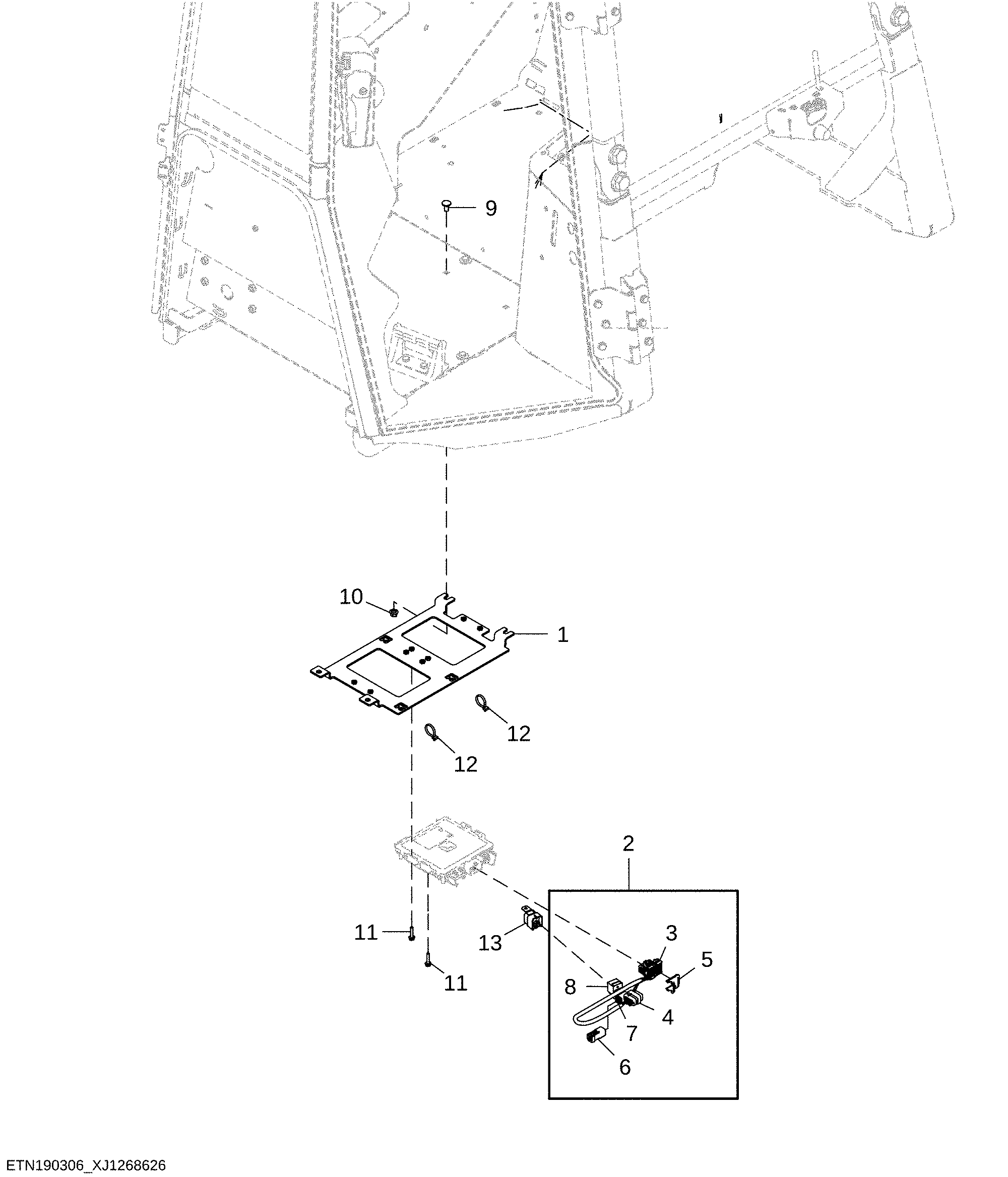

JDLink™ 4G LTE Modular Wireless Gateway (MWG) Assembly

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT371790	1	Bracket	-
2	AT498023	1	Wiring Harness	JDLink™ Modular Telematics Gateway (MTG) Harness
3	57M10614	1	Elec. Connector Housing	A6000, Modular Telematics Gateway (MTG)
3	57M10488	7	Elec. Connector Terminal	-
3	57M10333	33	Elec. Connector Cavity Plug	-
3	57M10334	4	Elec. Connector Cavity Plug	-
4	57M9801	1	Elec. Connector Housing	X41A, JDLink™
4	R78065	6	Elec. Connector Terminal	-
4	57M8263	4	Elec. Connector Terminal	-
4	57M9814	2	Elec. Connector Cavity Plug	-
5	57M10613	1	Elec. Connector Housing	-
6	57M8014	1	Elec. Connector Housing	Cap
7	57M8013	1	Elec.Connect Locking Device	-
7	R78069	1	Elec. Connector Cavity Plug	-
7	R78065	5	Elec. Connector Terminal	-
7	57M11287	1	Elec. Connector Accessory	-
7	57M8634	1	Elec. Connector Housing	X42, Satellite Connector
8	57M9362	1	Elec. Connector Housing	K7, JDLink Relay
8	M75140	1	Clip	-
8	57M7514	3	Elec. Connector Terminal	-
8	57M7513	1	Elec. Connector Terminal	-
9	03M7190	4	Bolt	M10 X 20
10	14M7296	4	Flange Nut	M10
11	19M7796	4	Screw	M6 X 30
12	R44302	2	Tie Band	-
13	AT77726	1	Relay	24 V
13	AT75769	1	Relay	12 V

JDLink™ 4G LTE Modular Wireless Gateway (MWG) Assembly
