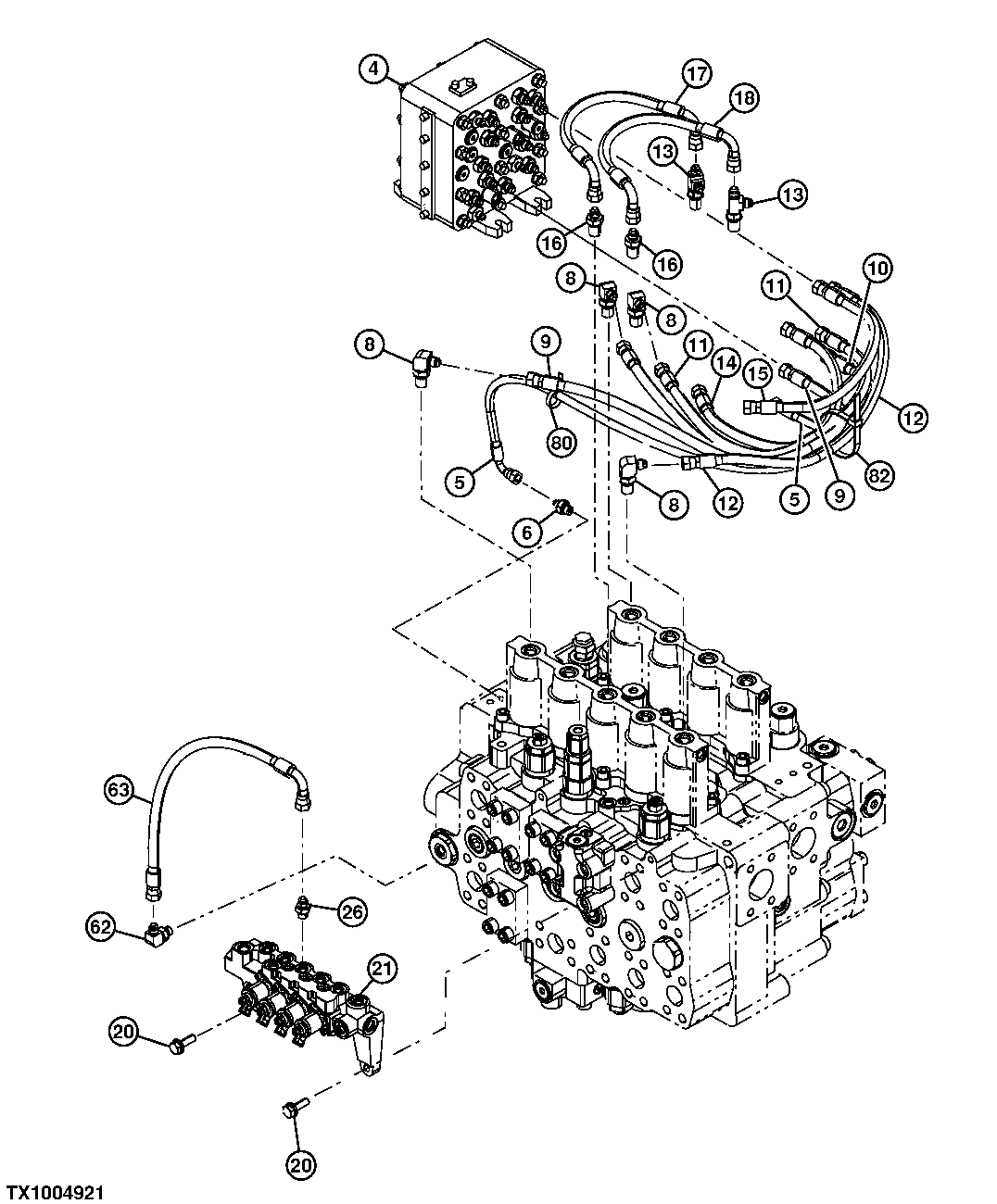

Pilot Lines (Control Valve Top To Manifold) ( - 953021)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	4634207	1	Valve	Components On Separate Page
5	-	1	Part 2	(9261142 NLA)
5	4634379	1	Hydraulic Hose	-
5	-	1	Part 4	(MAKE FROM E90991) (CUT TO LENGTH 600 mm)
6	A852122	1	Adapter Fitting	-
6	M800650	1	Packing	(SUB FOR 957366)
8	4208913	4	Adapter Fitting	-
8	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32"), (SUB FOR 4509180)
9	4634373	1	Hydraulic Hose	-
10	4634375	1	Hydraulic Hose	-
11	4634372	1	Hydraulic Hose	-
12	4634369	1	Hydraulic Hose	-
13	4208910	2	Tee Fitting	-
13	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32"), (SUB FOR 4509180)
14	4634366	1	Hydraulic Hose	-
15	4613763	1	Hose	SUB FOR 4634367
16	4202422	2	Adapter Fitting	-
16	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32"), (SUB FOR 4509180)
17	4634360	1	Hydraulic Hose	-
18	4634361	1	Hydraulic Hose	-
20	-	2	Part 21	(J271035 NLA)
20	19M7550	2	Cap Screw	M10 X 35, (SUB FOR J901035)
20	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
21	9285047	1	Solenoid Valve	(SUB FOR 9246518)
26	A852123	1	Adapter Fitting	-
26	M800650	1	Packing	(SUB FOR 957366)
62	A852323	1	Elbow Fitting	-
62	M800650	1	Packing	(SUB FOR 957366)
63	4634363	1	Hydraulic Hose	-
80	H77698	1	Tie Band	-
82	H77698	1	Tie Band	-

Pilot Lines (Control Valve Top To Manifold) ( - 953021)
