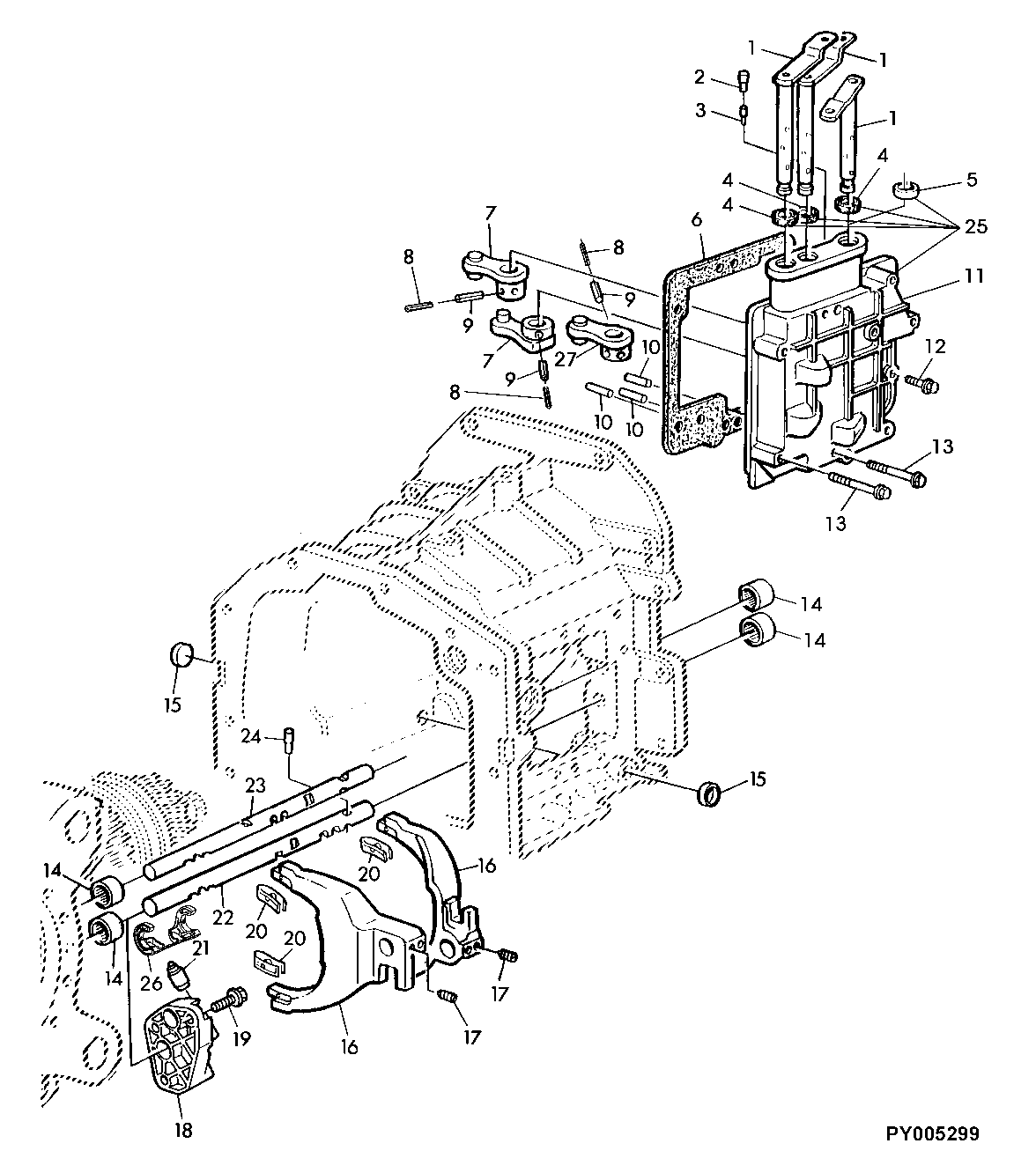

SHIFTING PARTS, RANGE TRANSM. (WITH ELECTRICAL REVERSER CONTROL)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL81449	1	Shaft	-
2	L76229	1	Pin Fastener	-
3	L78755	1	Pin Fastener	(WITH 20-SPEED TRANSMISSION = 30KMH) (WITH 24-SPEED TRANSMISSION = 40KMH)
4	L116320	1	Seal	(SUB FOR L101207, L101221)
4	L153307	1	Seal	(FOR L153159, L153160) (SUB FOR L78612)
5	30M7024	1	Plug	(WITH 16-SPEED TRANSMISSION = 30KMH)
6	L76234	1	Gasket	-
7	AL166649	1	Lever	(SUB FOR AL80836 APPL)
8	34M7032	1	Spring Pin	5 X 28 mm, 5X28MM
9	34M7225	1	Spring Pin	8 X 28 mm, 8X28MM
10	44M7111	1	Dowel Pin	-
11	L101207	1	Cover	MARKED L101207 (ORD AL155290)
11	L153159	1	Cover	MARKED L153159 (ORD AL155290)
11	L101221	1	Cover	(WITH FRONT PTO) MARKED L101221 (ORD L153160, 30M7024, L153307)
11	L153160	1	Cover	MARKED L153160 (ORD W/ 30M7024, L153307)
12	19M7866	1	Screw	M8 X 20, M8X20, (10.9)
13	19M7800	5	Screw	M8 X 50, M8X50, (10.9)
14	JD10508	4	Bearing	-
15	30M7010	2	Plug	-
16	L111048	2	Shifter	-
17	L33332	4	Set Screw	-
18	L110335	1	Housing	-
19	19M7867	3	Screw	M8 X 25, M8X25, (10.9)
20	L113217	4	Clip	(SUB FOR L111830)
21	AL116245	2	Detent	(SUB FOR AL82118)
22	L76224	1	Shifter Rod	(WITH 16-SPEED TRANSMISSION = 30KMH)
22	L79803	1	Shifter Rod	(WITH 16-SPEED TRANSMISSION = 30KMH) (WITH CREEPER TRANSMISSION)
22	L77227	1	Shifter Rod	(WITH 20-SPEED TRANSMISSION = 30KMH) (WITH 24-SPEED TRANSMISSION = 40KMH)
23	L76225	1	Shifter Rod	-
24	L77271	1	Pin Fastener	(WITH 20-SPEED TRANSMISSION = 30KMH) (WITH 24-SPEED TRANSMISSION = 40KMH)
25	AL155290	1	Transmission Case	-
25	AL155291	1	Transmission Case	CNLA
26	L165946	1	Clip	-
27	AL166651	1	Lever	-

SHIFTING PARTS, RANGE TRANSM. (WITH ELECTRICAL REVERSER CONTROL)
