Открытый узел

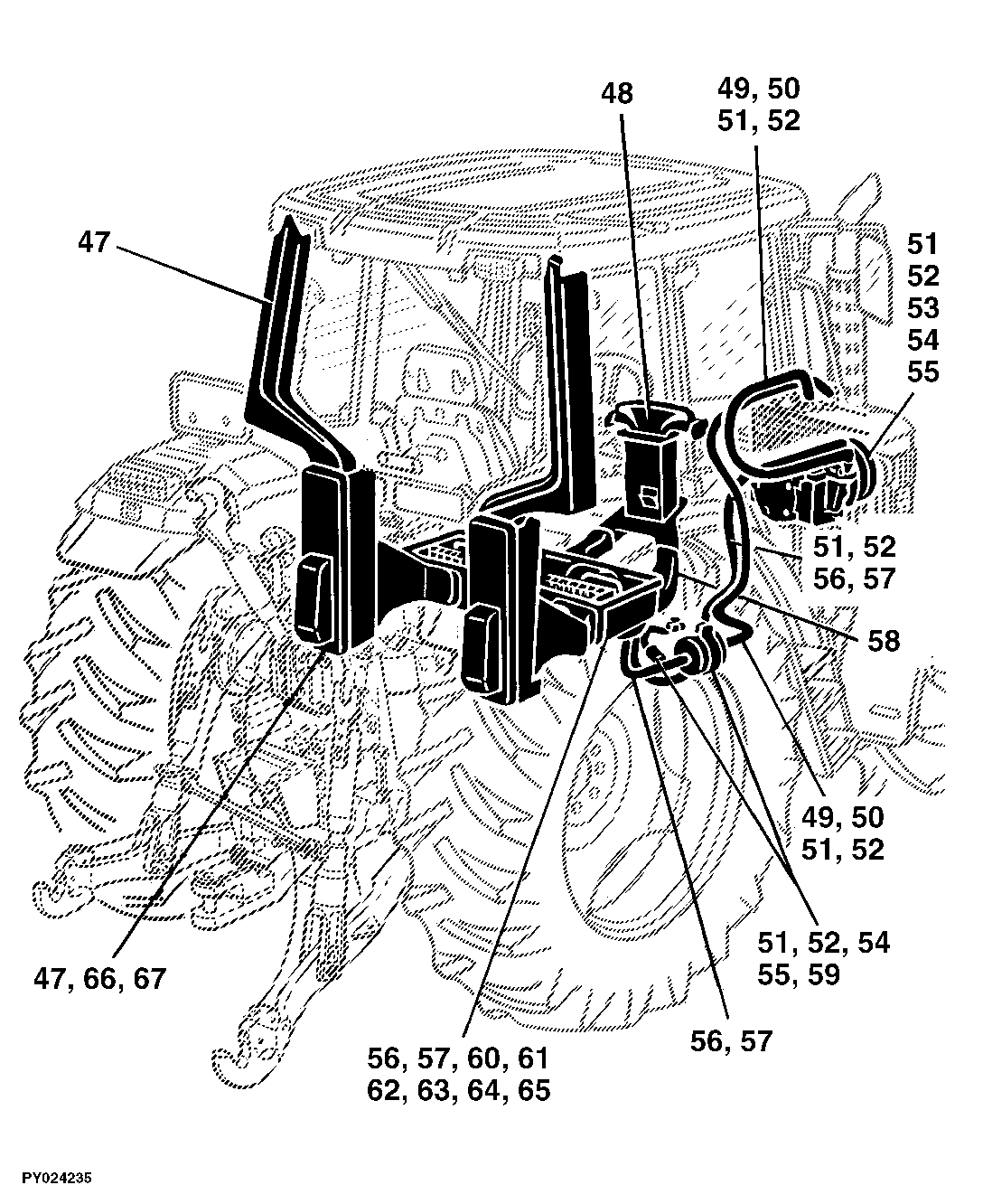

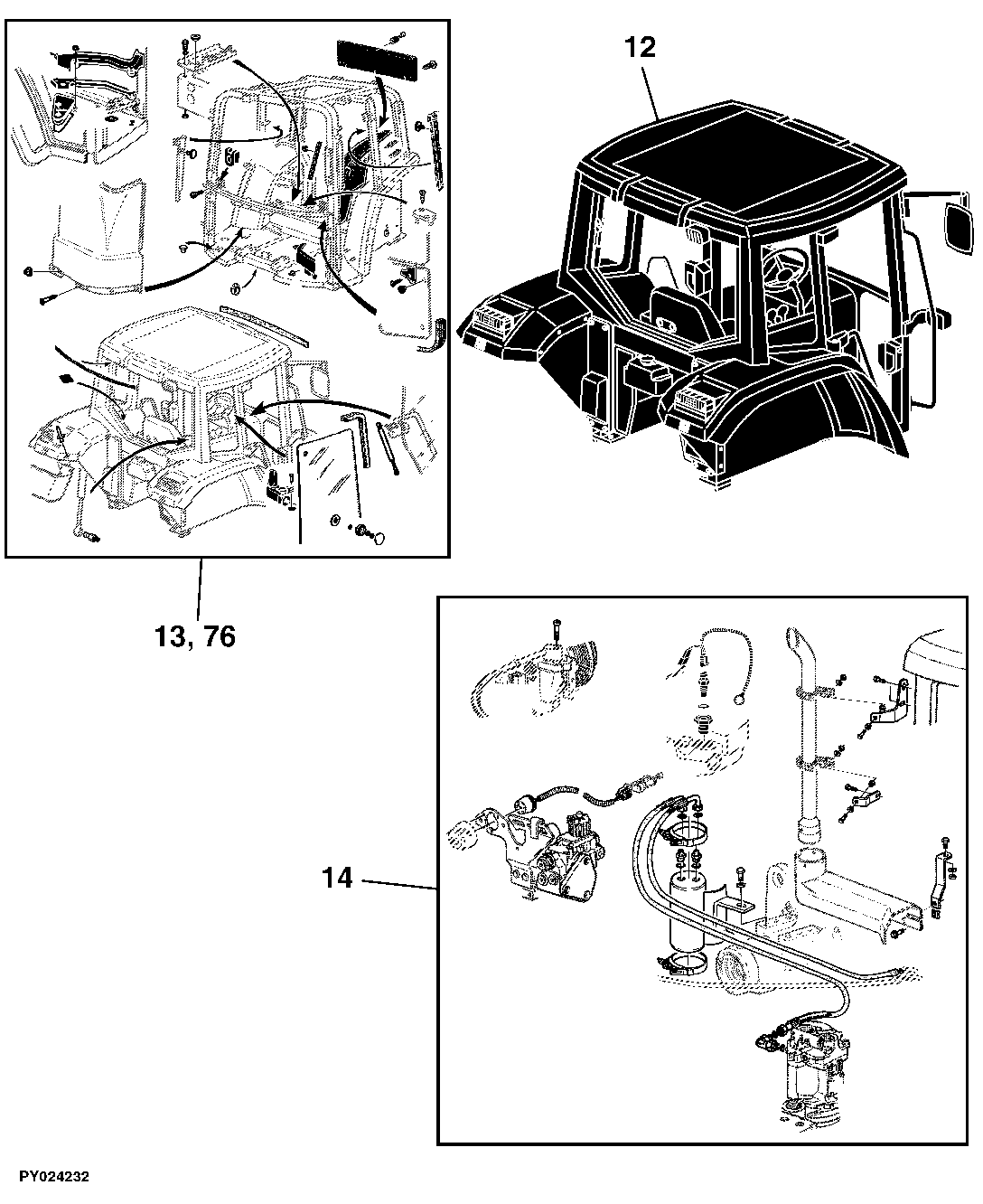

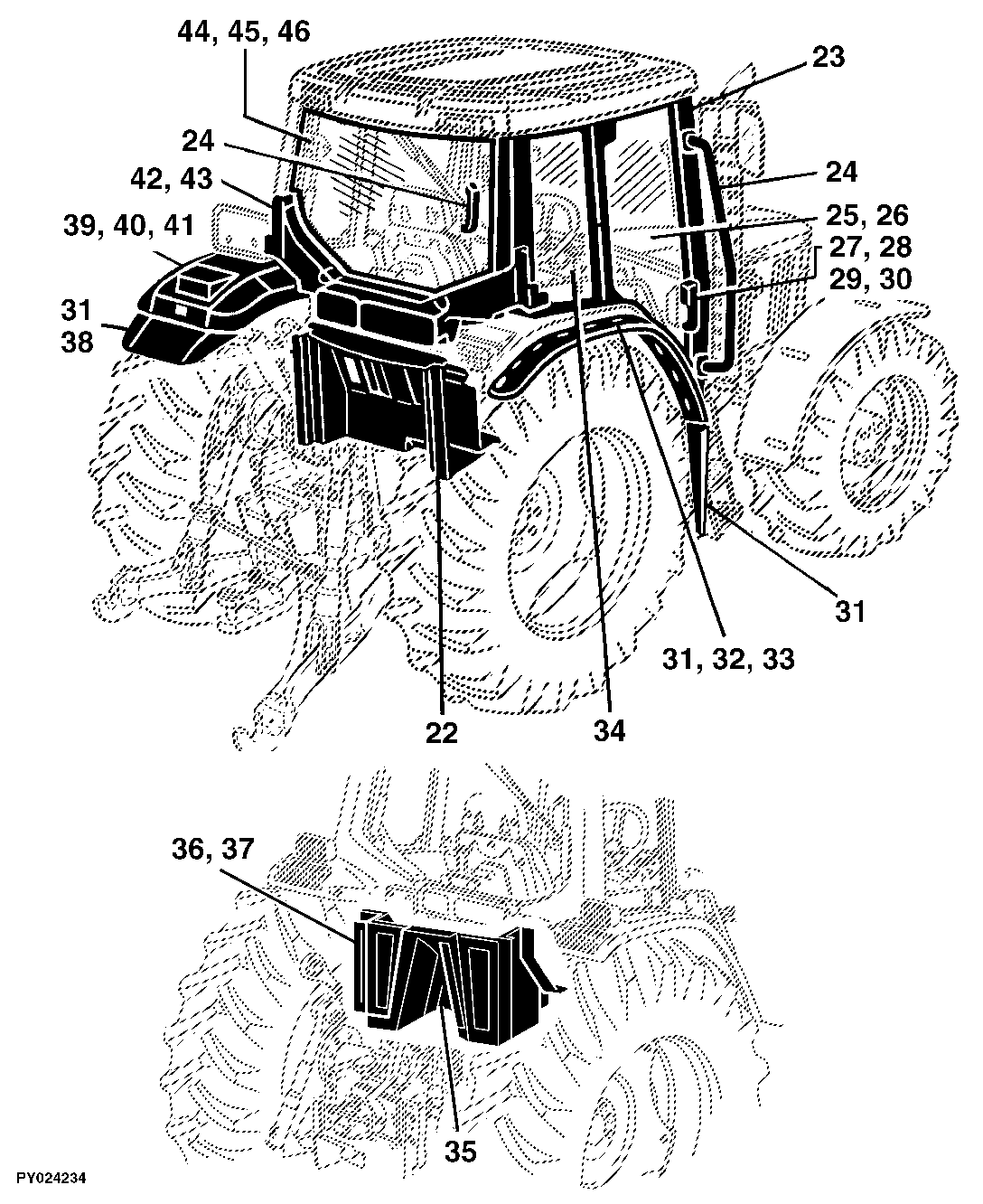

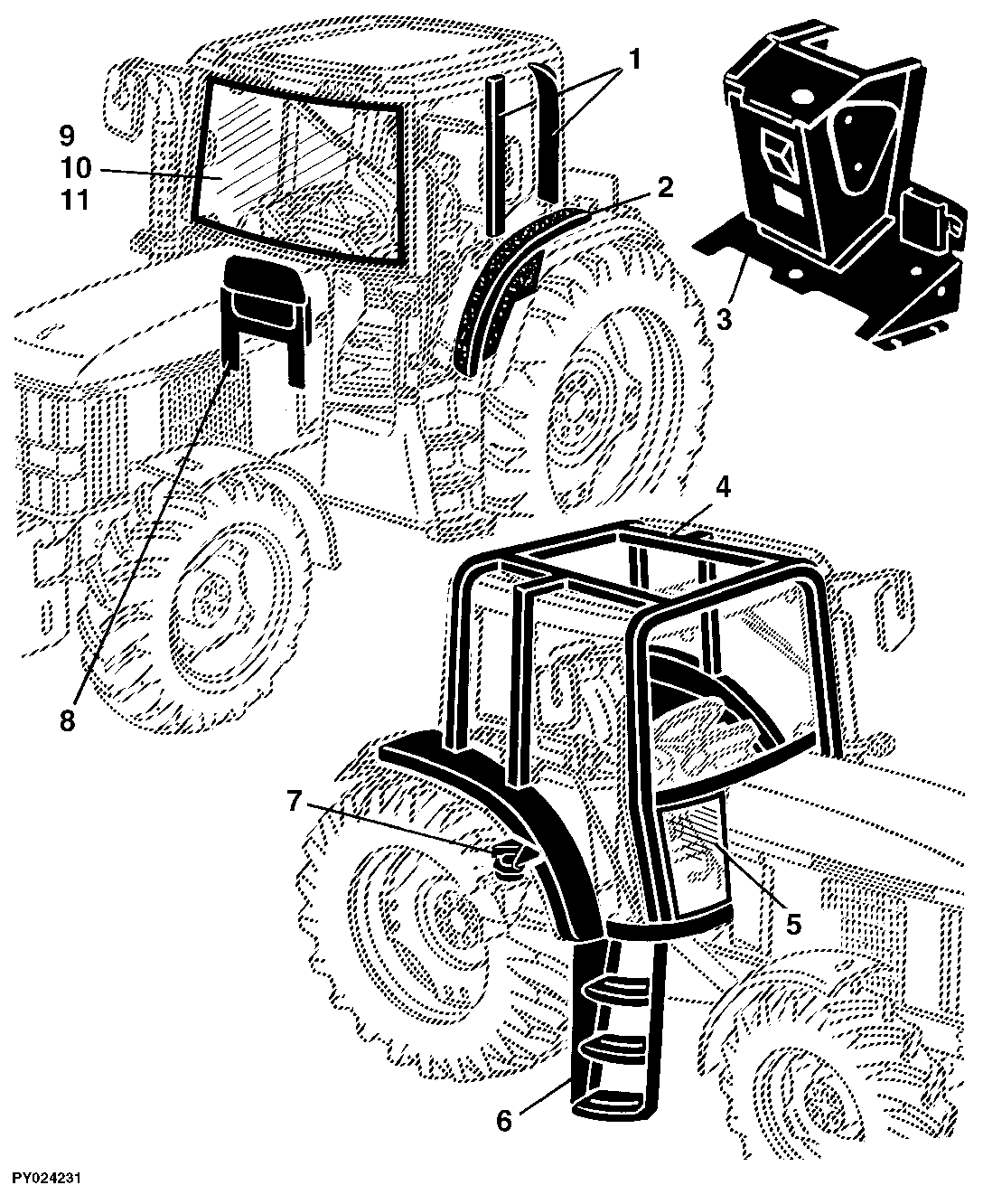

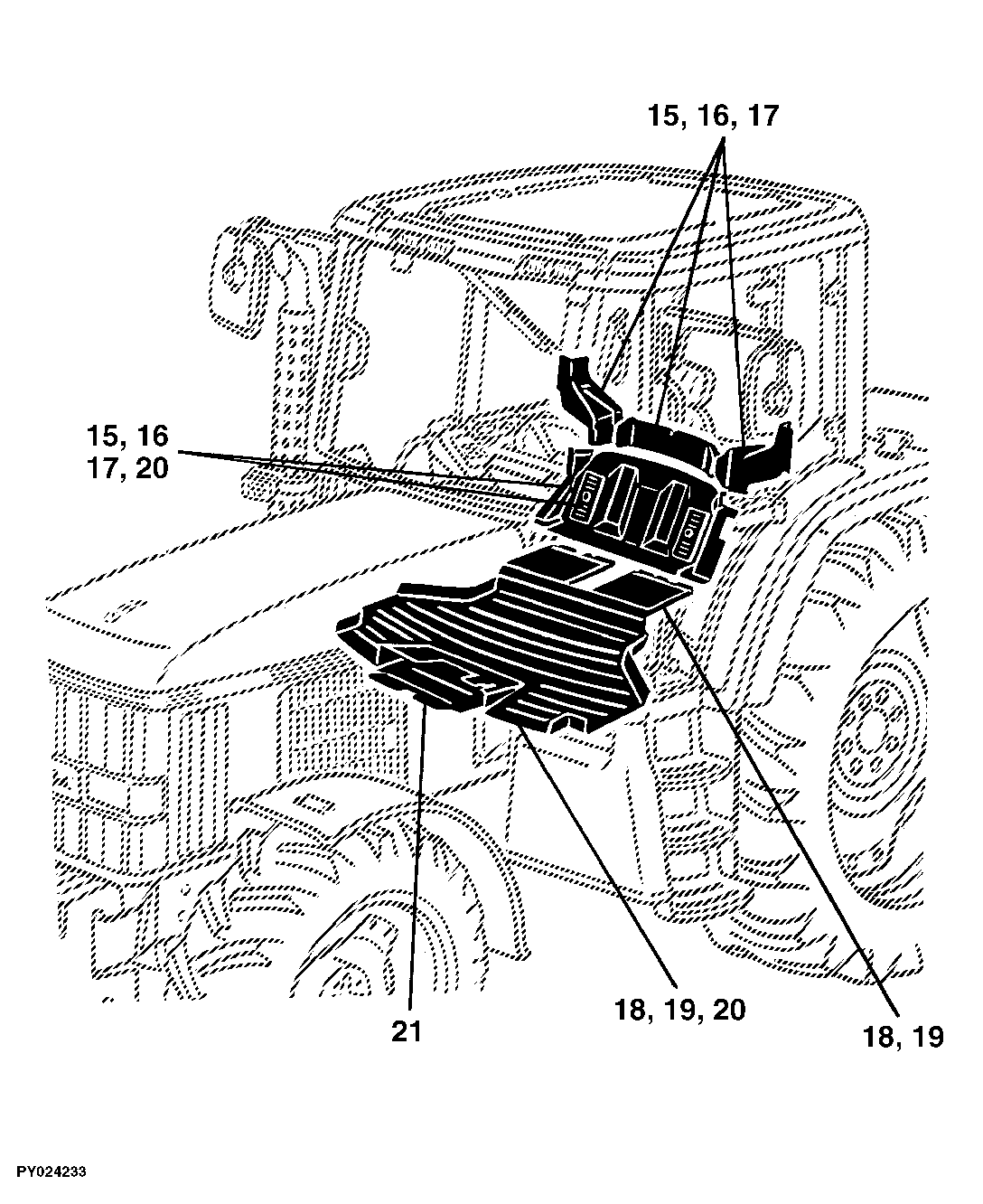

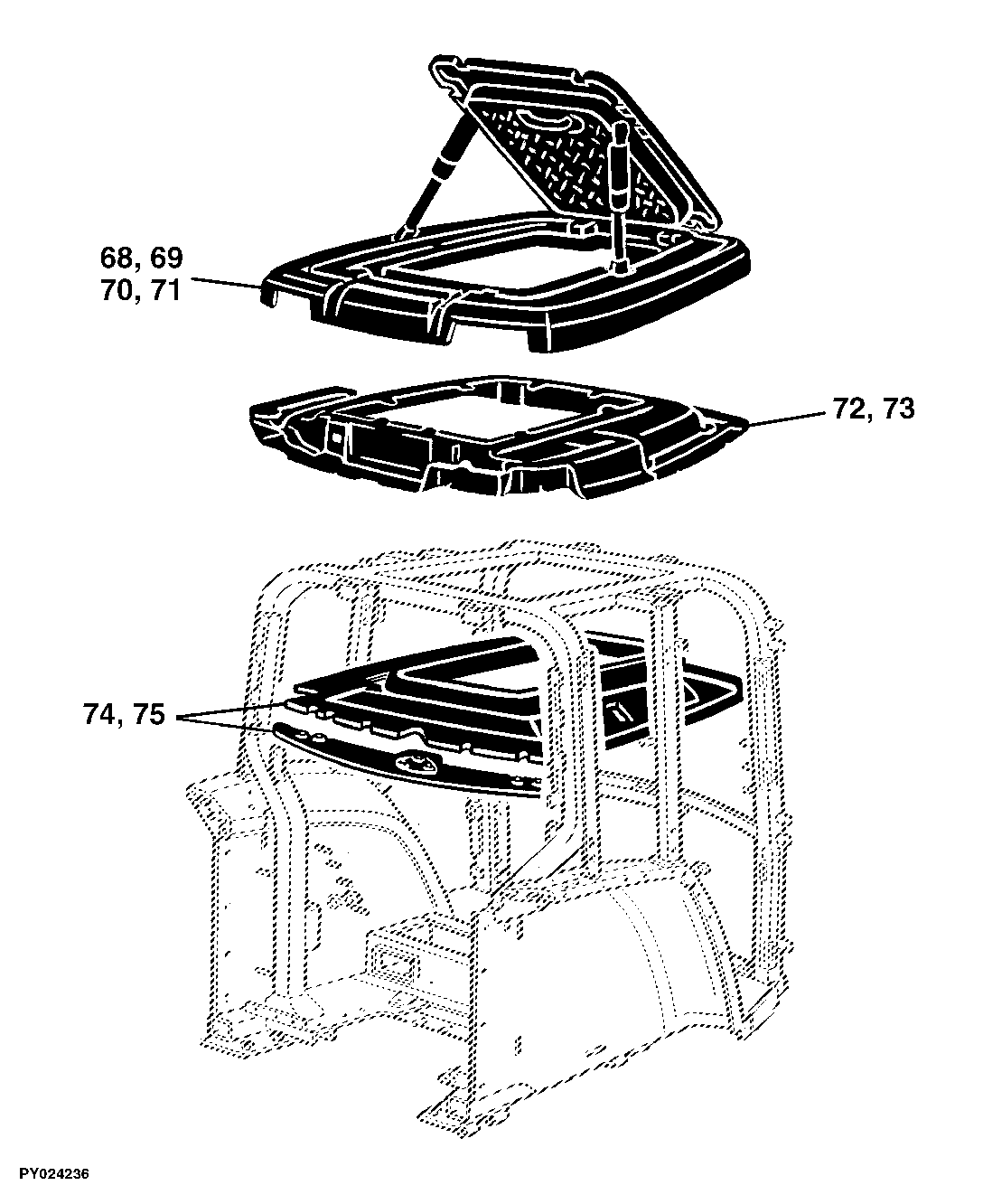

91 OPERATOR'S CAB, BASIC, HEATING, AIR CONDITIONING

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	POST UPHOLSTERY (CAB)	-
-	-	1	Rear Windows, Lower	-
-	-	1	REAR WINDOW	-
-	-	1	Rear Fender Side Extension	-
-	-	1	Rear Fender Side Extension	-
-	-	1	REAR FENDER EXTENSION AND SIDE EXTENSION (EXTRA WIDE)	-
-	-	1	Rear Fender Extension	-
-	-	1	REAR FENDER	-
-	-	1	Rear Fender	-
-	-	1	Preparation For Reversed Operator's Station (CAB) - Field Installation Kit	-
-	-	1	RECEIVER DRYER, PRESSURE SWITCH FOR AIR CONDITIONING	-
-	-	1	PARTS KIT - DOOR HANDLE WITH SECURITY LOCK FOR LEFT AND RIGHT DOORS	-
-	-	1	PARTS FOR AIR CIRCULATION, REAR (WITH STRAIGHT FLOOR PLATE)	-
-	-	1	PADDING (CAB WITH REAR STRAIGHT FLOOR PANEL)	-
-	-	1	OUTER ROOF WITHOUT TILTABLE HATCH	-
-	-	1	OUTER ROOF WITHOUT TILTABLE HATCH	-
-	-	1	OUTER ROOF WITH TILTABLE HATCH	-
-	-	1	OUTER ROOF WITH TILTABLE HATCH	-
-	-	1	LOWER AIR CIRCULATION PARTS	-
-	-	1	SUSPENSION FOR CAB	-
-	-	1	Without Right Door	-
-	-	1	Wiring Protection On Cover For rear Fender	-
-	-	1	WINDSHIELD, TILTABLE	-
-	-	1	WINDSHIELD, NOT TILTABLE	-
-	-	1	Windshield, Low	-
-	-	1	WINDSHIELD LATCH, HINGE	-
-	-	1	VENTILATION FLAP IN CAB ROOF (NOT FOR AIR CONDITIONING)	-
-	-	1	Upholstery Parts, Lower	-
-	-	1	UPHOLSTERY PARTS (CAB REAR)	-
-	-	1	LINES, AIRCONDITIONING	-
-	-	1	Steps	-
-	-	1	SIDE WINDOWS, TILTABLE	-
-	-	1	SIDE COVERS	-
-	-	1	SEAT CONSOLE COVER	-
-	-	1	REPLACEMENT CAB	-
-	-	1	REPAIR KIT FOR REFRIGERANT LINE	-
-	-	1	REPAIR KIT FOR REFRIGERANT LINE	-
-	-	1	Repair Kit For Rear Window Locking Device	-
-	-	1	Compressor, Air Conditioning	-
-	-	1	FAN PARTS, HEATER HOSES WITH AIR CONDITIONING	-
-	-	1	Fan Components And Heater Hoses, Without Air Conditioning	-
-	-	1	DOORS	-
-	-	1	Door Handle and Lock	-
-	-	1	DOOR HANDLE AND LOCK	-
-	-	1	COVERING, UPHOLSTERY, AIR SCREENS (CAB WITH STRAIGHT FLOOR PLATE)	-
-	-	1	COVERING, UPHOLSTERY, AIR SCREENS (CAB WITH REAR SLOPING FLOOR PLATE)	-
-	-	1	COVERING (CAB WITH REAR SLOPING FLOOR PLATE)	-
-	-	1	CONTROL SUPPORT	-
-	-	1	FAN PARTS, HEATER HOSES WITH AIR CONDITIONING	-
-	-	1	CAB FRAME	-
-	-	1	AIR CONDITIONING - FIELD INSTALLATION KIT (WITH AIR TRAILER BRAKE SYSTEM)	-
-	-	1	AIR CONDITIONING - FIELD INSTALLATION KIT (NOT FOR TRAILER AIR BRAKES)	-
-	-	1	AIR CLEANER	-
-	-	1	Air Circulation Parts, Rear	-
-	-	1	AIR CIRCULATION PARTS, CONTROL SUPPORT	-
-	-	1	ADAPTER KIT FOR REPLACEMENT CAB FRAME AL153002	-
-	-	1	ADAPTER KIT FOR REPLACEMENT CAB FRAME AL114440	-
-	-	1	Handle For Instructional Seat	-
-	-	1	LINES, AIRCONDITIONING	-
-	-	1	KIT - HEATER UNIT HOUSING	-
-	-	1	Inner Roof Cover (With Non - Hinged Hatch)	-
-	-	1	Inner Roof Cover (With Hinged Hatch)	-
-	-	1	INNER ROOF	-
-	-	1	HYDRAULIC PUMP COVER (STRAIGHT FLOOR CAB)	-
-	-	1	HINGE AND REAR WINDOW LATCH	-
-	-	1	HEATER UNIT WITHOUT AIR CONDITIONING	-
-	-	1	HEATER UNIT WITH AIR CONDITIONING	-
-	-	1	ADAPTER KIT FOR REPLACEMENT CAB	-
-	-	1	HANDLE	-
-	-	1	Floor Plates	-
-	-	1	FLOOR MATS (CAB WITH STRAIGHT FLOOR PLATE)	-
-	-	1	Floor Mats (Cab With Rear Sloping Floor Plate)	-
-	-	1	FIREWALL (CAB)	-
-	-	1	FIELD INSTALLATION KIT - HANDLE FOR HINGED WINDSHIELD OR REAR WINDOW	-
-	-	1	FENDER UPHOLSTERY	-
-	-	1	FAN PARTS, HEATER HOSES WITHOUT AIR CONDITIONING	-

91 OPERATOR'S CAB, BASIC, HEATING, AIR CONDITIONING

Нет текстового описания
