JDLink™ Modular Telematics Gateway (MTG) Controller Mounting and Antenna, 3G ( - 687015)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT438112	1	Wiring Harness	JDLink™ Modular Telematics Gateway (MTG) Harness
2	57M10615	1	Elec. Connector Housing	Modular Telematics Gateway (MTC) J2
2	57M10330	5	Elec. Connector Terminal	-
2	57M10617	4	Elec. Connector Housing	-
3	57M11395	1	Elec. Connector Housing	Cab Connector
3	R78066	7	Elec. Connector Terminal	-
4	57M8634	1	Elec. Connector Housing	Satellite Module
4	R78065	5	Elec. Connector Terminal	-
5	57M7682	1	Elec.Connect Locking Device	-
6	57M8013	1	Elec.Connect Locking Device	-
7	57M11287	1	Elec. Connector Accessory	-
8	AT412808	1	Bracket	-
9	AT399832	1	Antenna	See DTAC Solution 88359
10	R44302	12	Tie Band	-
11	R44302	3	Tie Band	-
12	19M7868	5	Screw	M8 X 30
13	AT456381	1	Bracket	-
14	T196079	9	Nut	-
15	19M7865	5	Screw	M8 X 16
16	R44302	1	Tie Band	-
17	R44302	1	Tie Band	-
18	T209627	3	Clamp	-
19	19M9840	8	Screw	M8 X 40
20	T316918	1	Windowpane	-
21	-	1	Part 25	MF T59937, CTL
22	24M7298	8	Washer	8.400 X 25 X 2 mm
23	T309885	4	Spacer	-
24	T318493	1	Cover	-
25	T238675	2	Label	Green Sealing
26	R62356	1	Grommet	-

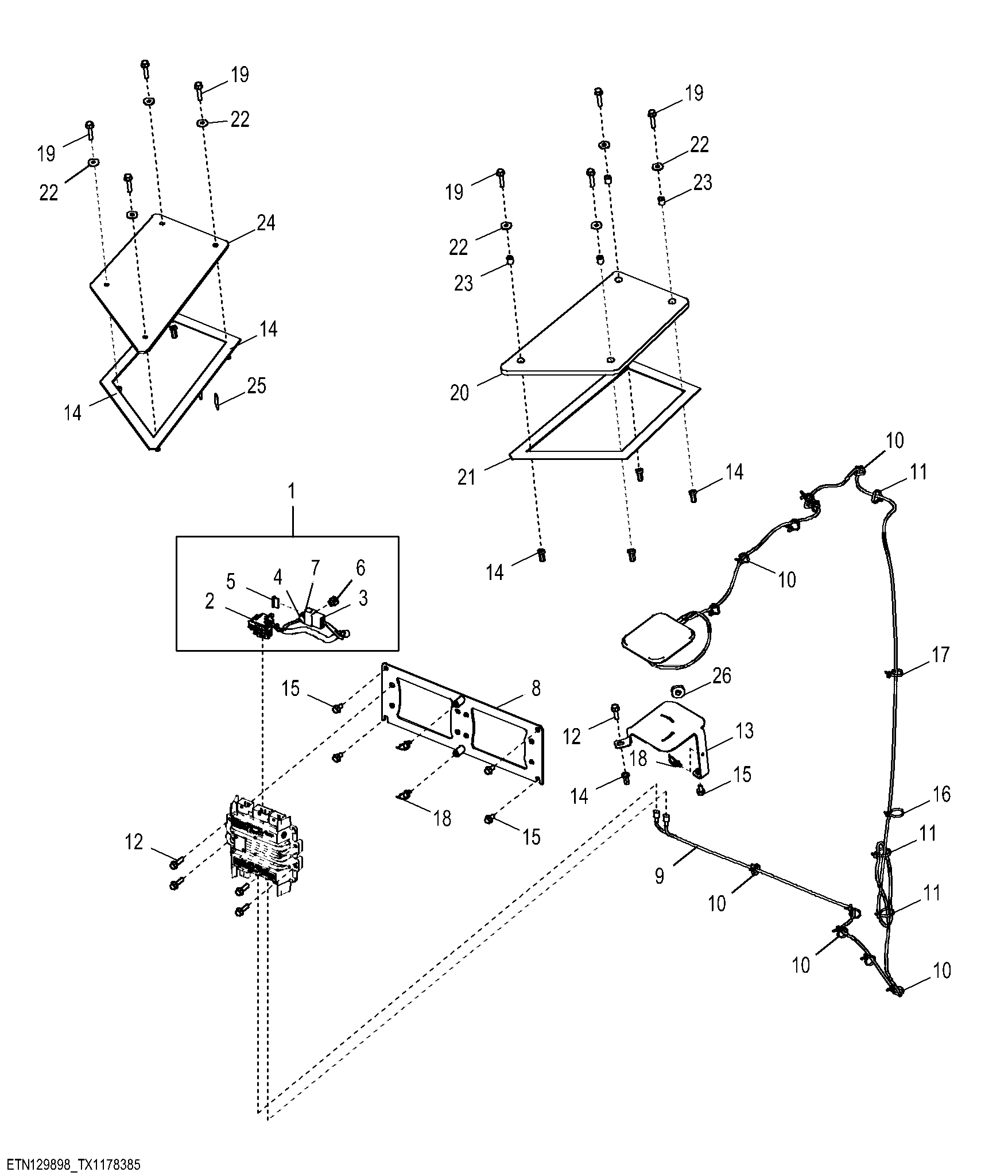

JDLink™ Modular Telematics Gateway (MTG) Controller Mounting and Antenna, 3G ( - 687015)
