Открытый узел

Grapple and Winch Valve, Single Function Arch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT472452	1	Bracket	-
1	AT410150	1	Bracket	NLA; ORDER AT472452
2	AT400804	1	Spool Valve	Grapple and Winch Valve, Single Function Arch, NLA; ORDER AT507422
2	AT507422	1	Spool Valve	SUB FOR AT460588
2	AT479242	1	Spool Valve	ORDER AT494969
2	AT494969	1	Spool Valve	ALSO ORDER AT497868
2	AT497868	1	Hydraulic Hose	INCLUDES U10289
2	U10289	1	O-Ring	-
3	AT451596	1	Control Valve	Inlet Section,Components Listed on Separate Pages, ALSO ORDER AT416486 AND AT448567
3	AT461962	1	Control Valve	-
4	AT415619	1	Control Valve	Outlet Section
5	R199687	3	O-Ring	-
5	AT431504	3	Pressure Relief Valve	275 Bar Arch Out/Winch In Circuit Relief And Anticavitation Check Valve, INCLUDES R199687
6	AT444008	2	Pressure Relief Valve	4700 PSI Boom Down/Winch In Circuit Relief And Anticavitation Check Valve, INCLUDES 51M7044
6	AT479256	2	Pressure Relief Valve	5200 PSI, INCLUDES 51M7044
6	51M7044	1	O-Ring	17.300 X 2.200 mm
7	AT444007	1	Pressure Relief Valve	4300 PSI Tong Close/Winch In Circuit Relief And Anticavitation Check Valve, INCLUDES 51M7044
7	AT479256	1	Pressure Relief Valve	5200 PSI, INCLUDES 51M7044
7	51M7044	1	O-Ring	17.300 X 2.200 mm
8	T168574	2	Spacer	-
9	19M7791	4	Bolt	M12 X 40
10	19M7835	3	Screw	M10 X 35
11	AT448563	1	Spool Valve	Winch Section, Components Listed on Separate Pages, ORDER AT507386, ALSO ORDER AT431504
11	AT507386	1	Spool Valve	Components Listed On Separate Pages
11	AT461964	1	Spool Valve	Components Listed On Separate Pages, ORDER AT507386
12	AT448563	1	Spool Valve	Tong Section, Components Listed on Separate Pages, ORDER AT507383, ALSO ORDER AT431504
12	AT461964	1	Spool Valve	Components Listed On Separate Pages, ORDER AT507383
12	AT507383	1	Spool Valve	Components Listed On Separate Pages
13	AT448563	1	Spool Valve	Arch Section, Components Listed on Separate Pages, ORDER AT507385, ALSO ORDER AT431504
13	AT461964	1	Spool Valve	Components Listed On Separate Pages, ORDER AT507385
13	AT507385	1	Spool Valve	Components Listed On Separate Pages
14	R79060	1	O-Ring	-
14	T107887	1	O-Ring	-
14	R111235	1	Back-Up Ring	-
14	AT314538	1	Seal Kit	INCLUDES R111235, R79060 AND T107887
14	AT416486	1	Pressure Relief Valve	INCLUDES AT314538
15	T170269	6	Nut	-
16	T314224	3	Tie Rod Assembly	-
17	AT448567	1	Flow Control Hyd. Valve	3175 PSI, INCLUDES AT199671
17	AT199671	1	Seal Kit	-
18	64H1017	6	Drain Plug	-
18	R26448	6	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
19	64H1022	5	Drain Plug	-
19	R29936	5	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")

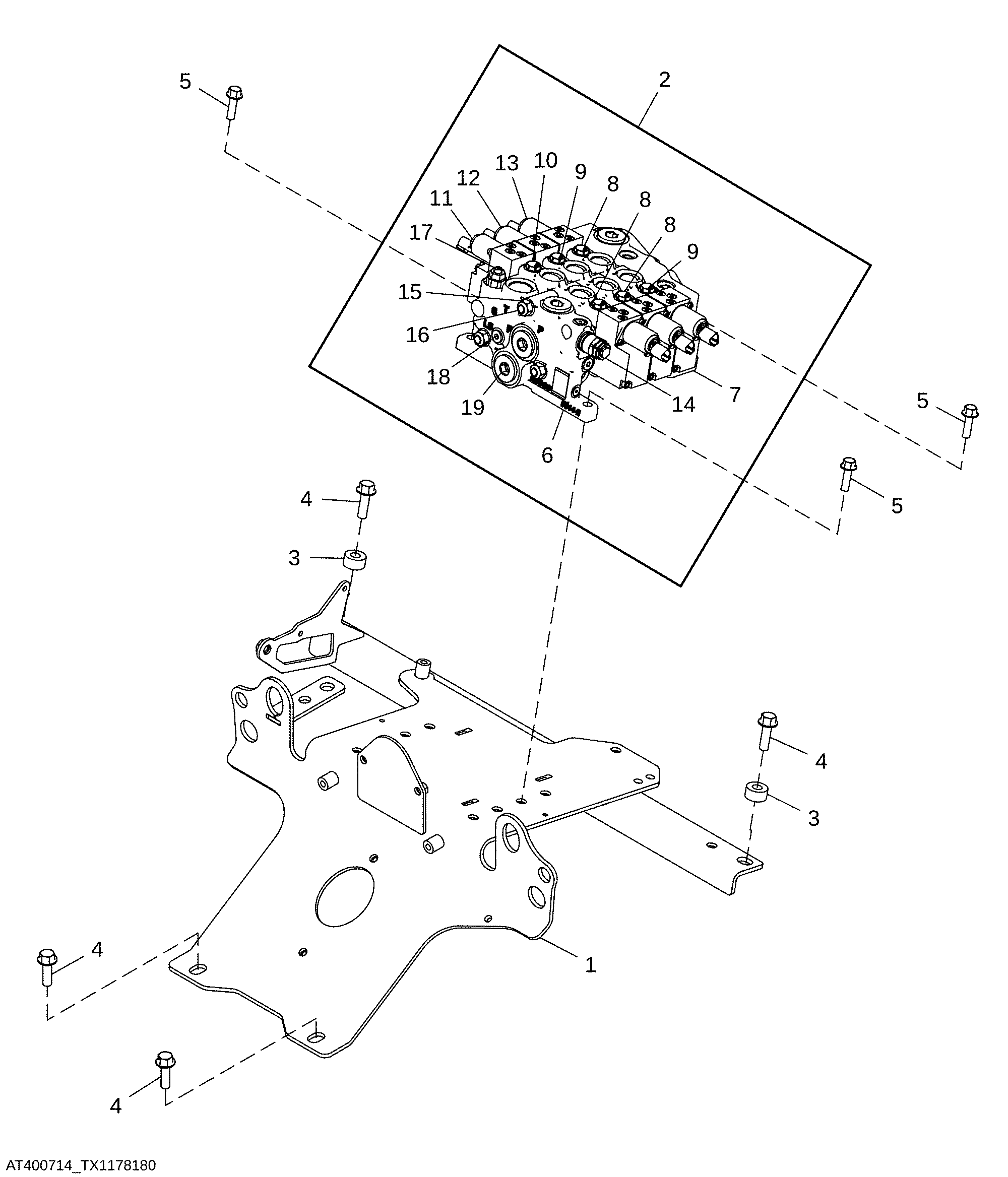

Grapple and Winch Valve, Single Function Arch
