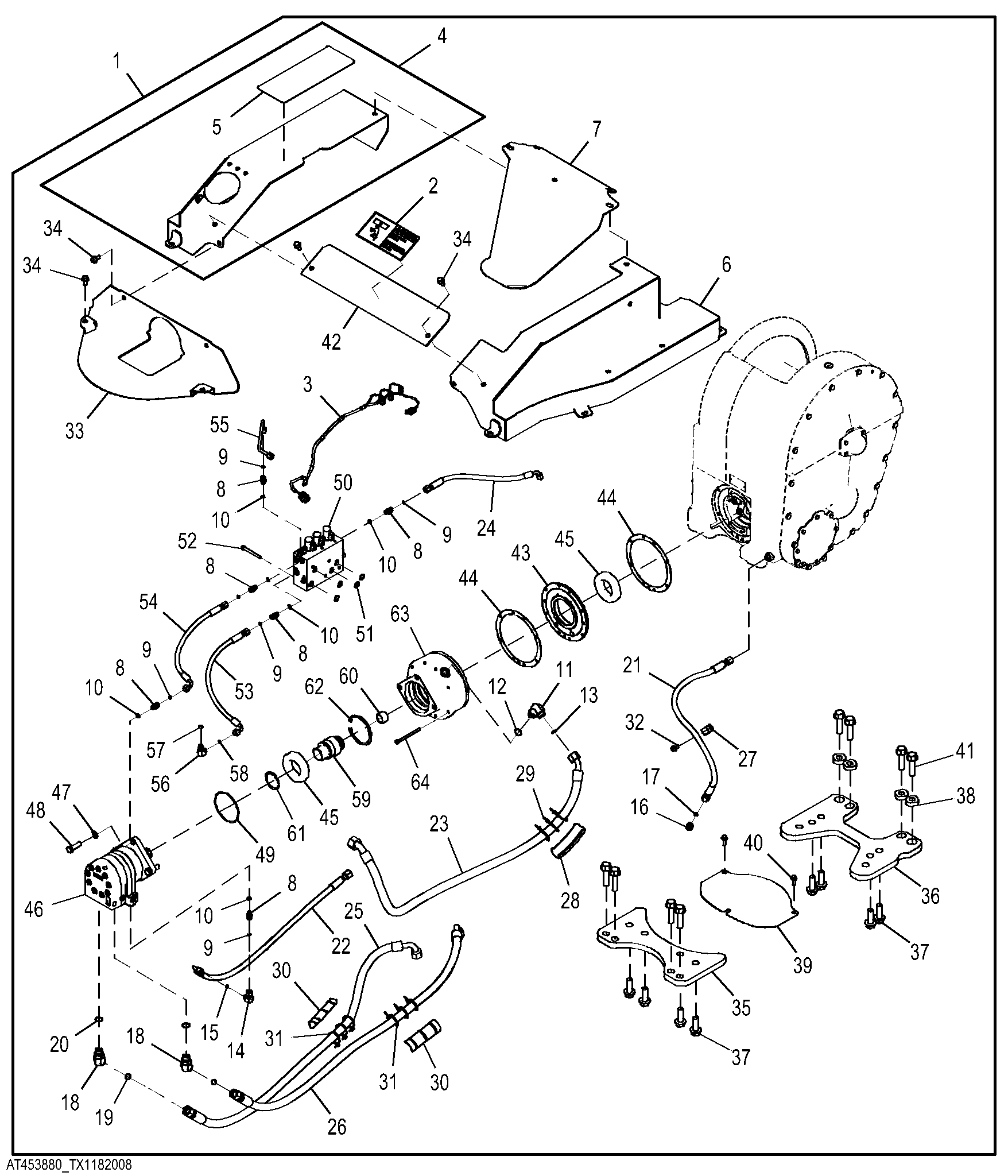

Mechanical to Hydraulic Winch Conversion Kit, 6000 Winch - Single Function

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT453880	1	Winch Kit	Whole Goods
2	T361108	1	Safety Sign	Winch Hoist Warning
3	AT438022	1	Wiring Harness	Winch Harness
4	AT441558	1	Guard	Fuel Tank
5	H21259	1	Mat	-
6	AT421540	1	Guard	Fuel Tank
7	AT437806	1	Support	-
8	38H1160	6	Adapter Fitting	-
9	T77613	6	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	R26448	6	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	38H1007	1	Elbow Fitting	-
12	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
13	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
14	38H1094	1	Elbow Fitting	-
15	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
16	38H1147	1	Fitting Plug	-
17	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
18	38H1048	2	Elbow Fitting	-
19	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
20	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
21	AT444471	1	Hydraulic Hose	Drain
22	AT430323	1	Hydraulic Hose	Motor Drain
23	AT413451	1	Hydraulic Hose	-
24	AT413452	1	Hydraulic Hose	-
25	AT429351	1	Hydraulic Hose	-
26	AT429351	1	Hydraulic Hose	-
27	T24959	1	Clamp	-
28	AT313439	1	Hose Guard	-
29	R44302	3	Tie Band	-
30	AT313439	2	Hose Guard	-
31	R44302	6	Tie Band	-
32	19M7784	1	Screw	M10 X 20
33	AT444496	1	Guard	Winch Motor
34	19M7788	6	Screw	M12 X 25
35	T394253	1	Plate	-
35	T348580	1	Plate	Front, High Strength, ORDER T394253
36	T348579	1	Plate	Rear, ORDER T394255
36	T394255	1	Plate	-
37	19M7851	8	Screw	M20 X 60
38	T298203	4	Spacer	-
39	T348596	1	Plate	Debris Cover
40	19M7786	2	Screw	M10 X 30
41	19M7831	8	Screw	M20 X 80
42	T329576	1	Plate	-
43	T310915	1	Bearing Housing W/O Bearing	-
44	T310914	2	Gasket	-
45	AT139681	2	Ball Bearing	-
46	AT411850	1	Hydraulic Motor	-
47	24M7097	3	Washer	17 X 28 X 2.500 mm
48	19M7397	3	Cap Screw	M16 X 50
49	F37030250	1	O-Ring	126.594 X 3.531 mm (4-63/64" X 0.139")
50	AT411851	1	Control Valve	Winch Valve Components Listed on Separate Page
51	U46731	4	O-Ring	18.720 X 2.616 mm (0.737" X 0.103")
52	19H3175	5	Cap Screw	3/8" X 3-5/8"
53	AT421370	1	Hydraulic Hose	-
54	AT421381	1	Hydraulic Hose	-
55	AT421367	1	Tube	-
56	38H1004	1	Elbow Fitting	-
57	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
58	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
59	T304442	1	Shaft	-
60	JD8865	1	Needle Bearing	-
61	R26246	1	Snap Ring	-
62	40M7110	1	Snap Ring	-
63	T317115	1	Housing	-
64	19H3598	9	Cap Screw	3/8" X 4-3/4"

Mechanical to Hydraulic Winch Conversion Kit, 6000 Winch - Single Function

Нет текстового описания
