Открытый узел

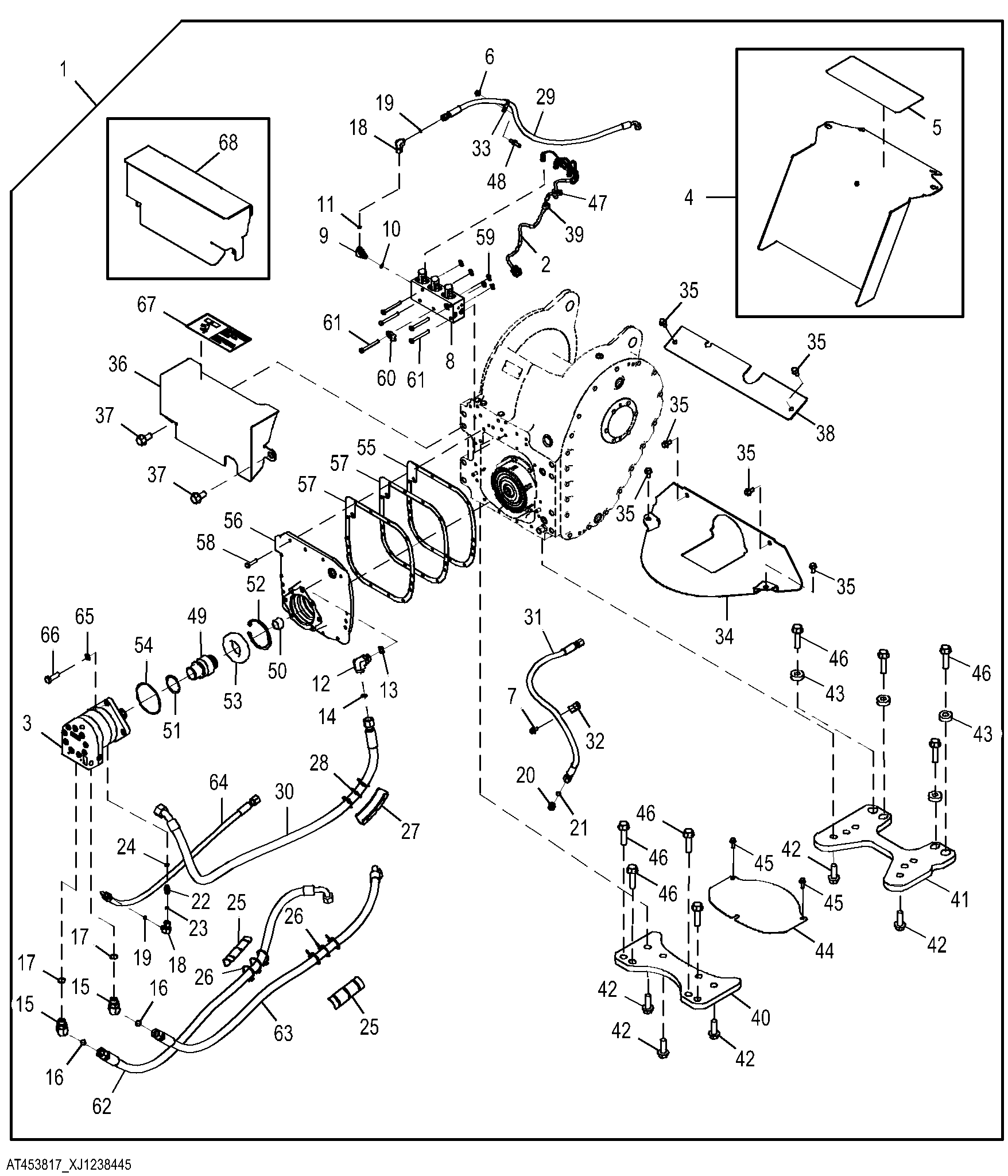

Mechanical to Hydraulic Winch Conversion Kit, 4000 Winch - Single Function (677801 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT453817	1	Winch Kit	WHOLE GOODS
2	AT438022	1	Wiring Harness	Winch Harness
3	AT471766	1	Hydraulic Motor	-
4	AT437488	1	Guard	-
5	H21259	1	Mat	Slip Protection
6	14M7296	1	Flange Nut	M10
7	19M7784	1	Screw	M10 X 20
8	AT408334	1	Control Valve	-
8	AT431990	3	Solenoid Valve	-
8	KV26542	1	Seal Kit	-
8	T204128	6	Screw	-
9	38H1004	1	Elbow Fitting	-
10	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	38H1007	1	Elbow Fitting	-
13	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
14	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
15	38H1048	1	Elbow Fitting	-
16	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
17	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
18	38H1094	1	Elbow Fitting	-
19	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
20	38H1147	1	Fitting Plug	-
21	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
22	38H1160	1	Adapter Fitting	-
23	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
24	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
25	AT313439	2	Hose Guard	-
26	R44302	3	Tie Band	-
27	AT313439	1	Hose Guard	-
28	R44302	3	Tie Band	-
29	AT413444	1	Hydraulic Hose	Fabricate
30	AT413447	1	Hydraulic Hose	Fabricate
31	AT444471	1	Hydraulic Hose	Fabricate
32	T24959	1	Clamp	-
33	T76719	1	Clamp	-
34	AT444496	1	Guard	Winch Motor
35	19M7788	6	Screw	M12 X 25
36	AT477782	1	Guard	Winch Valve
37	19M8709	2	Screw	M20 X 40
38	T329275	1	Plate	-
39	R70350	1	Grommet	-
40	T348580	1	Plate	Front, High Strength, ORDER T394253
40	T394253	1	Plate	-
41	T348579	1	Plate	Rear, ORDER T394255
41	T394255	1	Plate	-
42	19M7851	6	Screw	M20 X 60
43	T298203	4	Spacer	-
44	T348596	1	Plate	Debris Cover
45	19M7786	2	Screw	M10 X 30
46	19M7831	8	Screw	M20 X 80
47	H224073	1	Tie Band	-
48	T161803	1	Stud	-
49	T304442	1	Shaft	-
50	JD8865	1	Needle Bearing	-
51	R26246	1	Snap Ring	-
52	40M7110	1	Snap Ring	-
53	AT139681	1	Ball Bearing	-
54	F37030250	1	O-Ring	-
55	T84826	1	Gasket	-
56	AT473766	1	Housing	-
57	T84826	2	Gasket	-
58	19M7572	13	Cap Screw	M10 X 45
59	U46731	5	O-Ring	-
60	N380408	1	Clamp	-
61	19M8183	5	Cap Screw	M10 X 90
62	AT429351	1	Hydraulic Hose	Fabricate
63	AT429351	1	Hydraulic Hose	Fabricate
64	AT430323	1	Hydraulic Hose	Fabricate
65	24M7298	3	Washer	8.400 X 25 X 2 mm
66	19M7397	3	Cap Screw	M16 X 50
67	T361108	1	Safety Sign	Winch Hoist Warning
68	AT469237	1	Guard	-
