Открытый узел

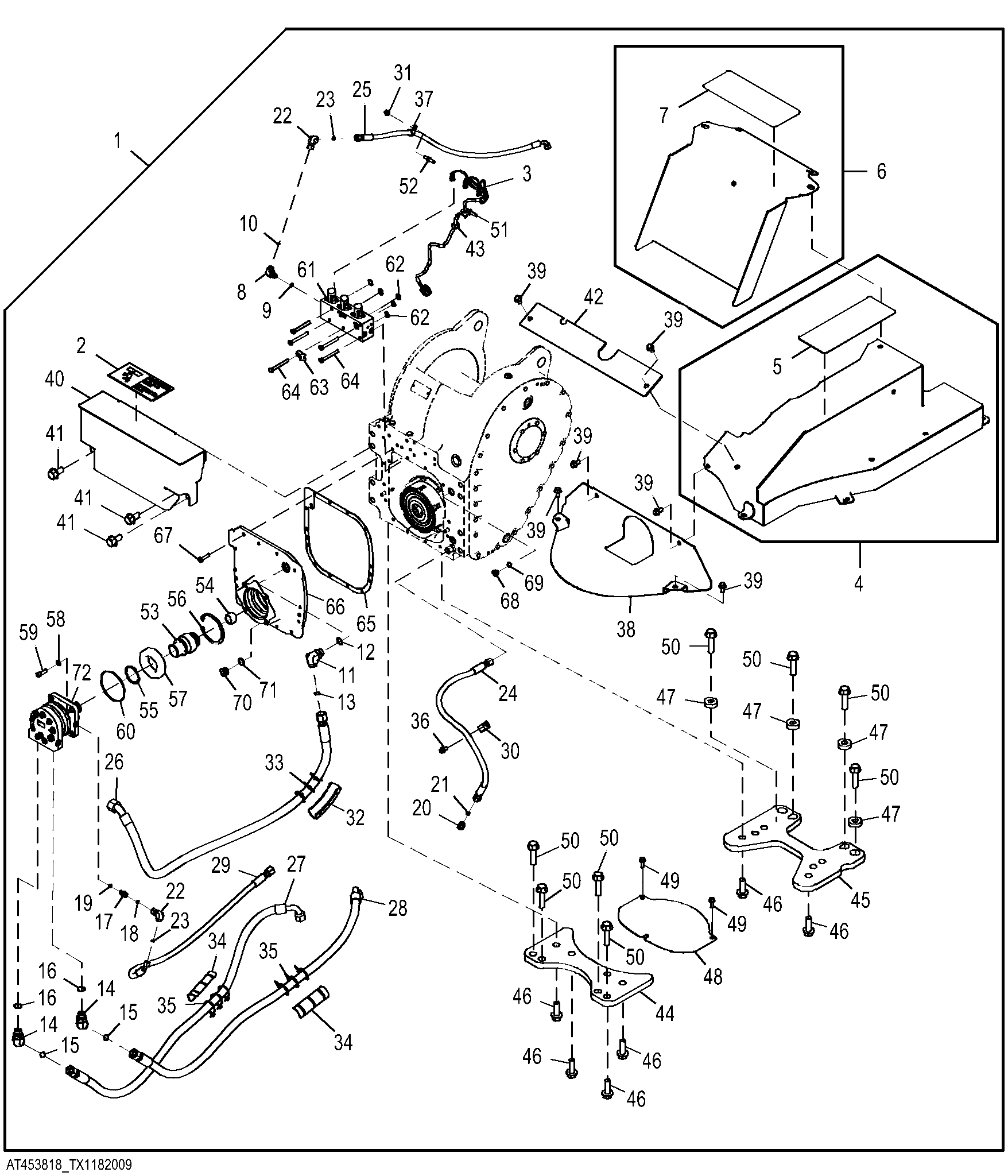

Mechanical to Hydraulic Winch Conversion Kit, 4000 Winch - Dual Function ( - 677800)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT453818	1	Winch Kit	Whole Goods
2	T361108	1	Safety Sign	Winch Hoist Warning
3	AT438022	1	Wiring Harness	Winch Harness
4	AT437478	1	Guard	Fuel Tank
5	H21259	1	Mat	-
6	AT437488	1	Guard	Slip Protection
7	H21259	1	Mat	-
8	38H1004	1	Elbow Fitting	-
9	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
10	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11	38H1007	1	Elbow Fitting	-
12	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
13	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
14	38H1048	1	Elbow Fitting	-
15	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
16	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
17	38H1160	1	Adapter Fitting	-
18	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
19	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
20	38H1147	1	Fitting Plug	-
21	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
22	38H1094	1	Elbow Fitting	-
23	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
24	AT444471	1	Hydraulic Hose	Fabricate
25	AT413444	1	Hydraulic Hose	Fabricate
26	AT413447	1	Hydraulic Hose	Fabricate
27	AT410397	1	Hydraulic Hose	Fabricate
28	AT410397	1	Hydraulic Hose	Fabricate
29	AT430986	1	Hydraulic Hose	Fabricate
30	T24959	1	Clamp	-
31	14M7296	1	Flange Nut	M10
32	AT313439	1	Hose Guard	-
33	R44302	3	Tie Band	-
34	AT313439	2	Hose Guard	-
35	R44302	3	Tie Band	-
36	19M7784	1	Screw	M10 X 20
37	T76719	1	Clamp	-
38	AT444494	1	Guard	Winch Motor
39	19M7788	6	Screw	M12 X 25
40	AT469237	1	Guard	Winch Valve
41	19M8709	3	Screw	M20 X 40
42	T329275	1	Plate	-
43	R70350	1	Grommet	-
44	T348580	1	Plate	Front, High Strength, ORDER T394253
44	T394253	1	Plate	-
45	T348579	1	Plate	Rear, ORDER T394255
45	T394255	1	Plate	-
46	19M7851	6	Screw	M20 X 60
47	T298203	4	Spacer	-
48	T348596	1	Plate	Debris Cover
49	19M7786	2	Screw	M10 X 30
50	19M7831	8	Screw	M20 X 80
51	H224073	1	Tie Band	-
52	T161803	1	Stud	-
53	T304442	1	Shaft	-
54	JD8865	1	Needle Bearing	-
55	R26246	1	Snap Ring	-
56	40M7110	1	Snap Ring	-
57	AT139681	1	Ball Bearing	-
58	M3110T	4	Washer	-
59	19M8448	4	Screw	M12 X 35
60	F37030250	1	O-Ring	-
61	AT408334	1	Control Valve	-
61	AT431990	3	Solenoid Valve	-
61	KV26542	1	Seal Kit	-
61	T204128	6	Screw	-
62	U46731	5	O-Ring	-
63	N380408	1	Clamp	-
64	19M8183	5	Cap Screw	M10 X 90
65	T84826	1	Gasket	-
66	T308420	1	Housing	-
67	19M7572	13	Cap Screw	M10 X 45
68	64H1018	1	Drain Plug	-
69	R26375	1	O-Ring	-
70	64H1020	1	Drain Plug	-
71	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
72	AT452328	1	Hydraulic Motor	ORDER AT473710
72	AT473710	1	Hydraulic Motor	-
72	AT452477	1	Seal Kit	Not Illustrated

Mechanical to Hydraulic Winch Conversion Kit, 4000 Winch - Dual Function ( - 677800)
