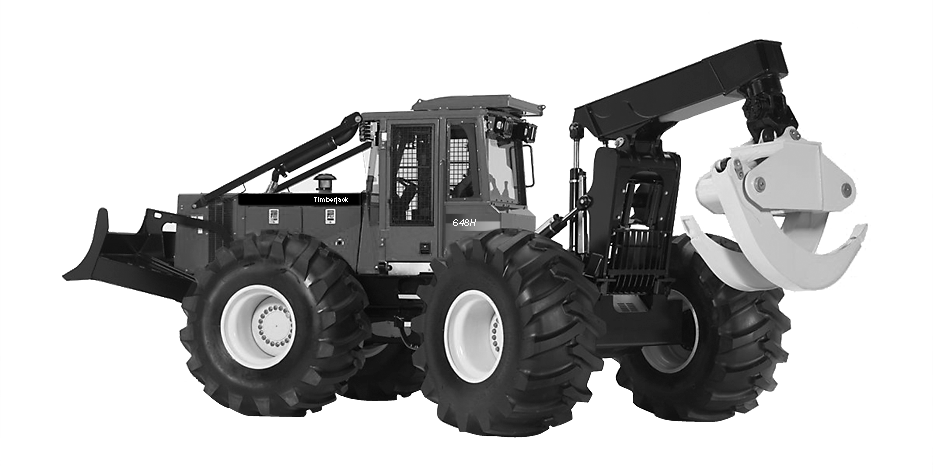

648HTJ Timberjack Grapple Skidder (PIN: 1DW648HT_ _C630436 - C666892) (PIN: 1DW648HT_ _D630436 - D666892)

17 Frame Chassis Or Supporting Structure

7 Traction (Engine) And Disconnect Clutch

648HTJ Timberjack Grapple Skidder (PIN: 1DW648HT_ _C630436 - C666892) (PIN: 1DW648HT_ _D630436 - D666892)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	02A Axles, Differentials & Suspension Systems	-
-	-	1	06B DFR- YZ19190 yz19190	-

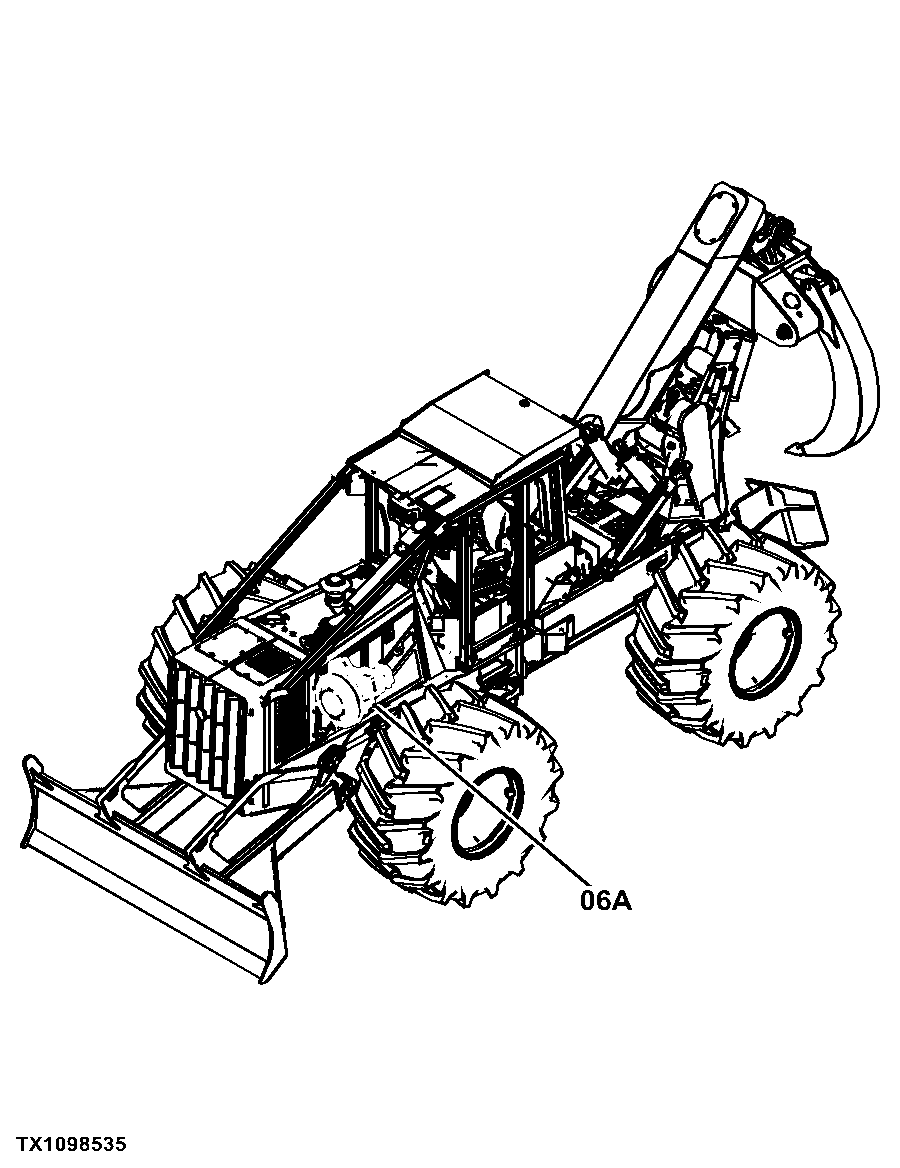

-	-	1	06A Torque Converter	-
-	-	1	03E DF180 Transmission YZ19463	-
-	-	1	03D DF180 Transmission YZ19462	-
-	-	1	03C DF180 Transmission YZ19461	-
-	-	1	03B DF180 Transmission YZ19460	-
-	-	1	03A Transmission	-
-	-	1	02J 1400 SWEDA TeamMate™ IV, Rear Axle, 7C YZ19725	-
-	-	1	02H 1400 TeamMate™ IV Rear Axle YZ19723	-
-	-	1	02G Front Axle with Differential Lock - 1400 Series TeamMate™ IV YZ19722	-
-	-	1	02F Front Axle with Differential Lock - 1400 Series TeamMate™ IV YZ19629	-
-	-	1	02E Rear Axle with Differential Lock, SWEDA - 1400 Series TeamMate™ IV YZ19123	-
-	-	1	02D Front Axle 1400 SWEDA TMIV 7C YZ19724	-
-	-	1	02C Front Axle with Differential Lock, SWEDA - 1400 Series TeamMate™ IV YZ19630	-
-	-	1	02I 1400 TeamMate™ IV Rear Extreme Duty Axle YZ19493	-
-	-	1	02B 1400 TeamMate™ IV Front Axle YZ19491	-
-	-	1	16 Vehicle Electrical Systems	-
-	-	1	17 Frame Chassis Or Supporting Structure	-
-	-	1	18 Operator's Station	-
-	-	1	19 Sheet Metal & Styling	-
-	-	1	20 Safety, Convenience & Miscellaneous	-
-	-	1	38 Grapple	-
-	-	1	21 Vehicle Main Hydraulic System	-
-	-	1	26 Global Vehicle Communication	-
-	-	1	30 Winch	-

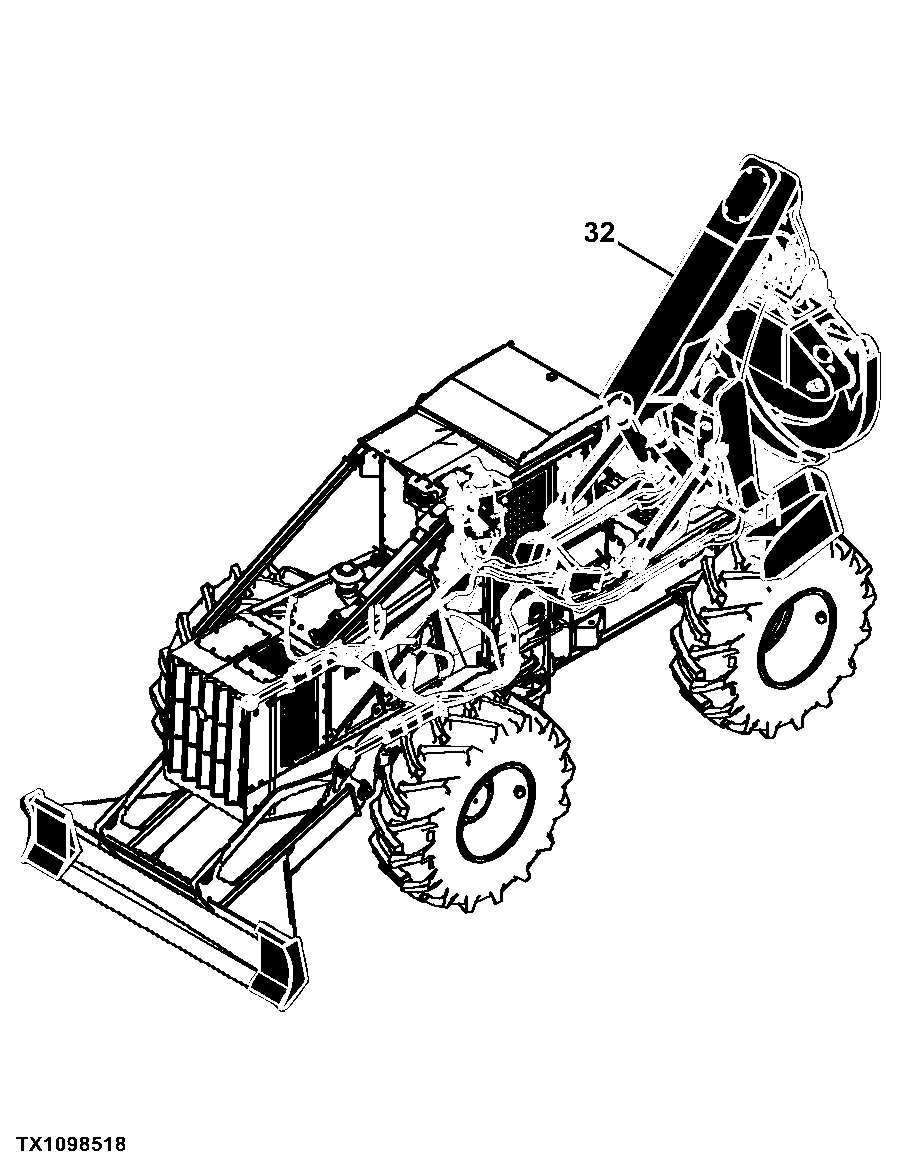

-	-	1	32 Dozers	-
-	-	1	1 Wheels & Tires & Tracks	-
-	-	1	13 Miscellaneous Vehicle	-
-	-	1	11 Parking Brakes	-
-	-	1	10 Service Brakes	-
-	-	1	9 Steering System	-
-	-	1	7 Traction (Engine) And Disconnect Clutch	-
-	-	1	5 Engine Auxiliary System	-
-	-	1	04D Engine 6068HDW77-RE543099	-
-	-	1	04C Engine 6068HDW76-RE543100	-
-	-	1	04B Engine 6068HDW64-RE535514	-
-	-	1	04A Engine 6068HDW65-RE535515-RE542534	-

648HTJ Timberjack Grapple Skidder (PIN: 1DW648HT_ _C630436 - C666892) (PIN: 1DW648HT_ _D630436 - D666892)
