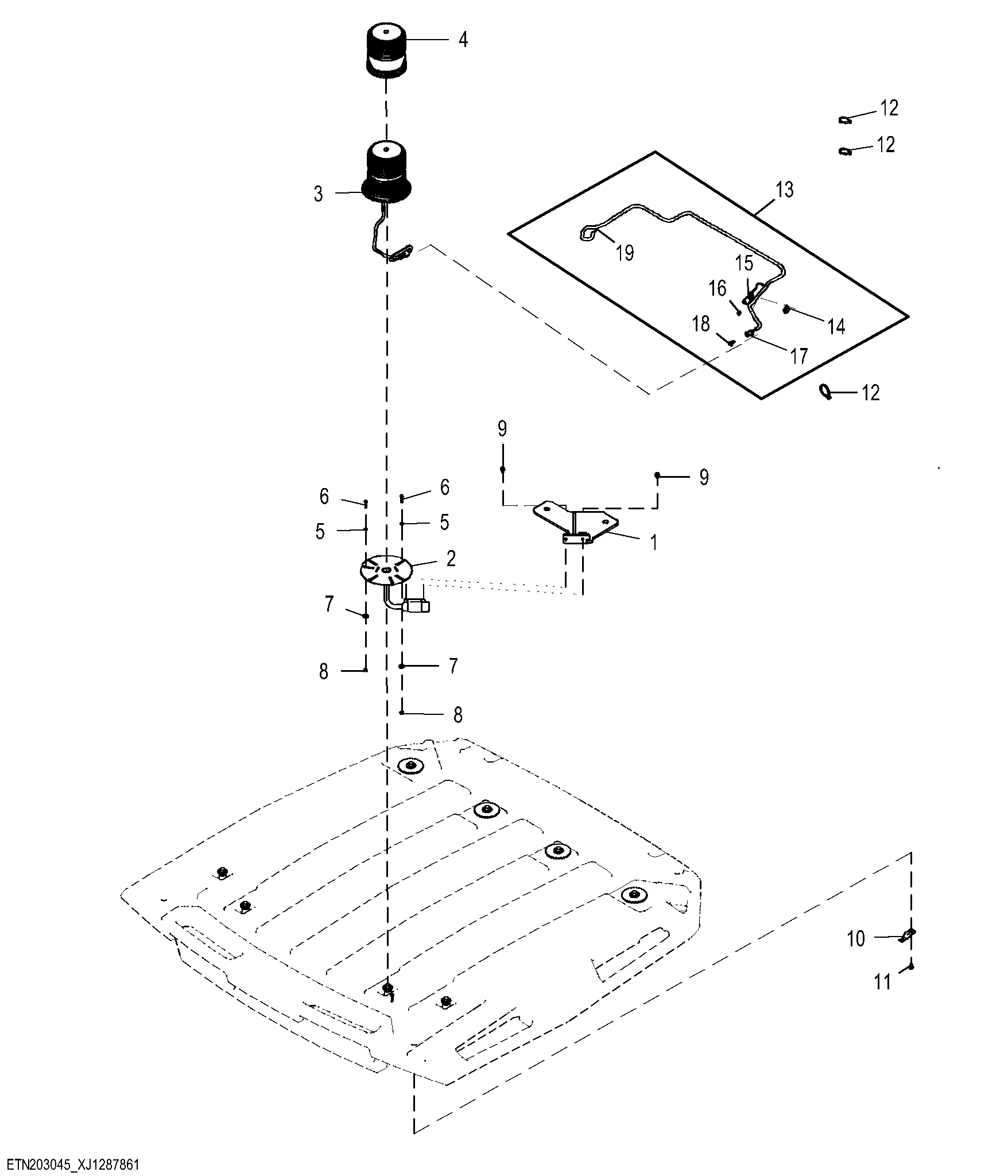

Seat Belt Indicator with Light Bracket

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT506753	1	Bracket	RH, Beacon Bracket
2	AT511961	1	Bracket	Beacon Arm Bracket
3	AT435890	1	Strobe Light	-
4	AT478273	1	Lens	Remote Control Green Beacon Lens
5	24M7087	3	Washer	5.500 X 10 X 1 mm
6	19M7502	3	Cap Screw	M5 X 25
7	24M7463	3	Washer	6.400 X 18 X 1.600 mm
8	14M7568	3	Lock Nut	M5
9	19M9831	2	Screw	M6 X 16
10	57M8736	1	Elec. Connector Accessory	-
11	19M9830	1	Screw	M6 X 12
12	R44302	3	Tie Band	-
13	AT510469	1	Wiring Harness	Seat Belt Minder Jumper Wiring Harness
14	T380249	1	Elec. Connector Accessory	-
15	57M8023	1	Elec. Connector Housing	Seat Belt Minder Inline, X_E15B
15	R78066	1	Elec. Connector Terminal	-
15	R78069	1	Elec. Connector Cavity Plug	-
16	57M7621	1	Elec.Connect Locking Device	-
17	57M8021	1	Electrical Connector Assy	Seat Belt Minder Light, E1
17	R78065	2	Elec. Connector Terminal	-
18	57M8022	1	Elec.Connect Locking Device	-
19	R78066	1	Elec. Connector Terminal	Seat Belt Minder Signal, X10A_PIN19

Seat Belt Indicator with Light Bracket

Нет текстового описания
