Fourth Function Field Kit, High Lift

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

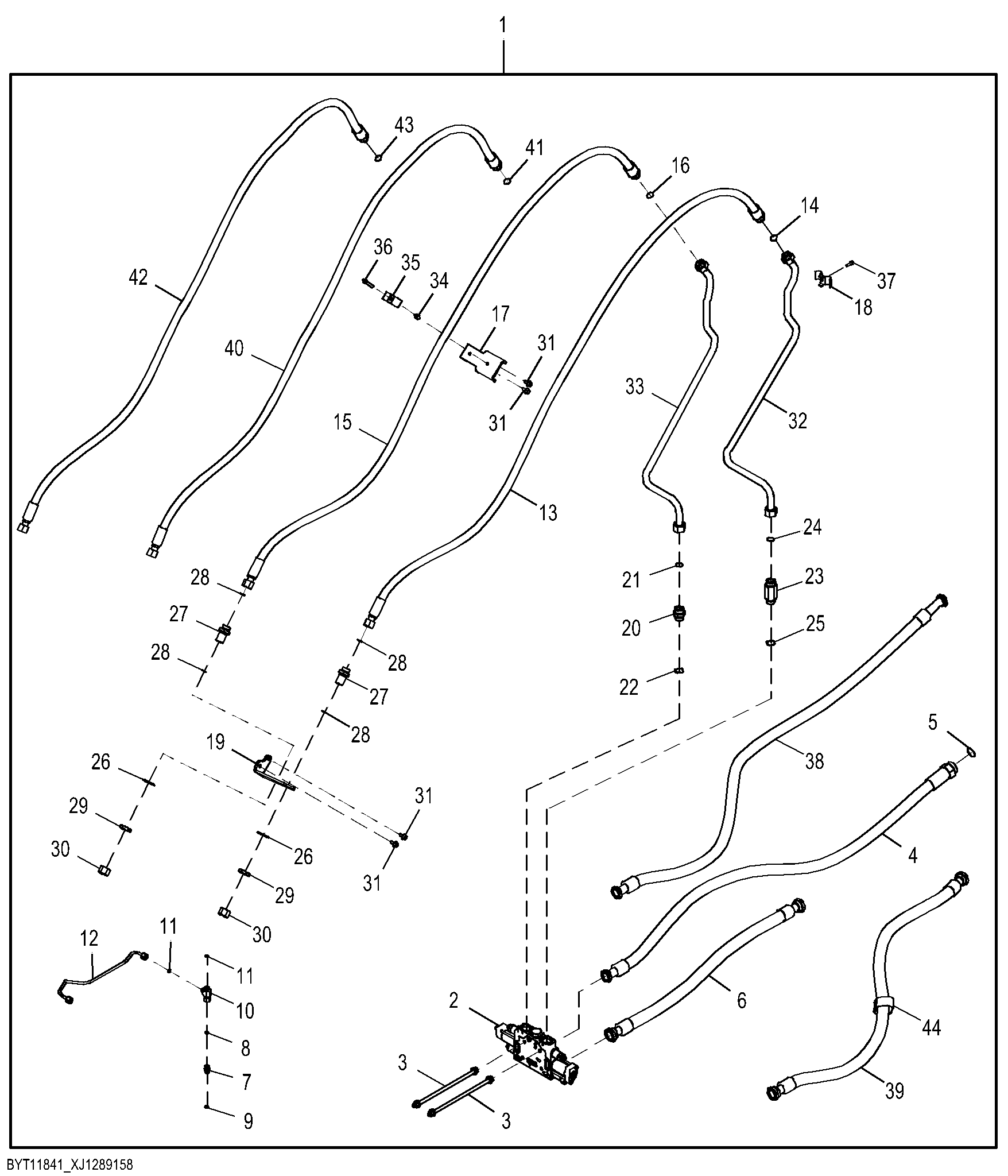

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT11841	1	Mounting Parts	WHOLE GOODS
2	AT508810	1	Valve Kit	Auxiliary Valve Section Components on Separate Page
2	AT488561	1	Seal Kit	Work Section Seal Kit
3	AT210683	4	Stud	-
4	AT503868	1	Hydraulic Hose	Return Hose 644L and 724L, INCLUDES T78784
5	T78784	1	O-Ring	-
6	AT478882	1	Hydraulic Hose	Pressure Hose 644L and 724L
7	38H5002	1	Adapter Fitting	-
8	T77613	1	O-Ring	-
9	51M7041	1	O-Ring	11.300 X 2.200 mm
10	38H5105	1	Tee Fitting	-
11	T77613	2	O-Ring	-
12	AT487320	1	Oil Line	-
13	AT508056	1	Hydraulic Hose	Auxiliary Hose 644L and 724L High Lift, INCLUDES T76938
14	T76938	1	O-Ring	-
15	AT508056	1	Hydraulic Hose	Auxiliary Hose 644L and 724L High Lift, INCLUDES T76938
16	T76938	1	O-Ring	-
17	AT485829	1	Bracket	-
18	AT359780	1	Clamp	-
19	T404895	1	Bracket	-
20	38H5006	1	Adapter Fitting	-
21	T76938	1	O-Ring	-
22	51M7048	1	O-Ring	29.600 X 2.900 mm
23	38H5203	1	Adapter Fitting	-
24	T76938	1	O-Ring	-
25	51M7048	1	O-Ring	29.600 X 2.900 mm
26	24H1263	2	Washer	1-1/4" X 2" X 0.060"
27	38H5219	2	Union Fitting	-
28	T77858	4	O-Ring	-
29	38H5094	2	Nut	1-3/16"
30	38H5456	2	Fitting	-
31	19M7784	4	Screw	M10 X 20
32	AT482459	1	Oil Line	-
33	AT482458	1	Oil Line	-
34	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
35	U46753	1	Hose Clamp	-
36	19M8954	1	Screw	M10 X 60
37	19M7657	1	Screw	M8 X 25
38	AT510027	1	Hydraulic Hose	Return Hose 644LH
39	AT482656	1	Hydraulic Hose	Pressure Hose 644LH
40	AT508058	1	Hydraulic Hose	Auxiliary Hose Z-Bar, INCLUDES T76938
41	T76938	1	O-Ring	-
42	AT508058	1	Hydraulic Hose	Auxiliary Hose Z-Bar, INCLUDES T76938
43	T76938	1	O-Ring	-
44	T256668	1	Adjusting Strap	-

Fourth Function Field Kit, High Lift
