Открытый узел

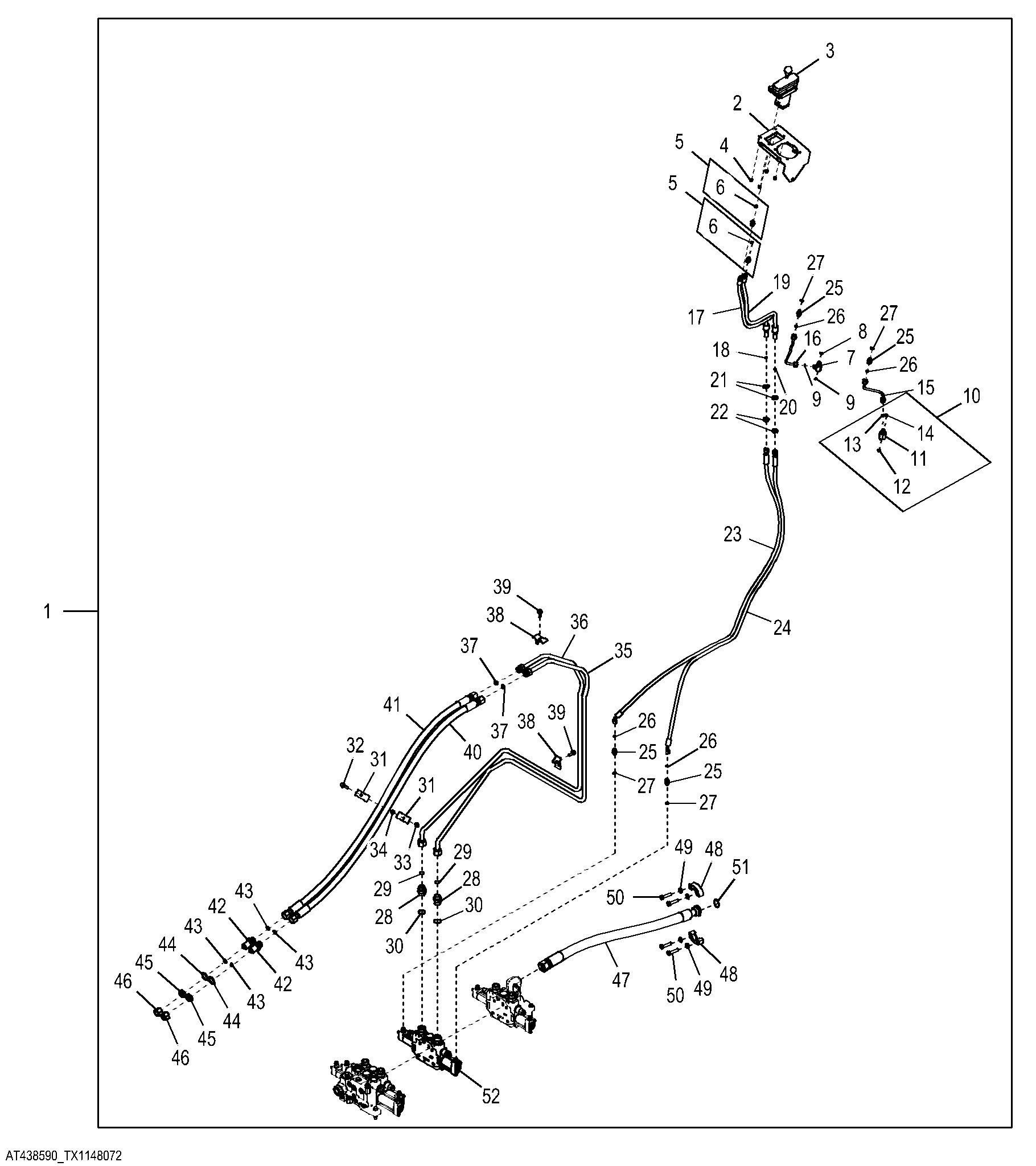

Joystick to Joystick and Auxiliary Control Lever Pilot Controller Conversion Kit, Powerllel™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT210951	1	Stud	Three Spool Stud Assembly Not Illustrated
1	AT438590	1	Hose Kit	Whole Goods
2	AT341527	1	Plate	-
3	AT228250	1	Hydr./Pilot Control Valve	Single Lever Controller Components On Seperate Page
4	14M7397	4	Lock Nut	M6
5	63H1001	2	Fitting	-
6	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
7	38H1023	1	Tee Fitting	-
8	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
9	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	61H1642	1	Adapter Fitting	-
11	38H1642	1	Adapter Fitting	-
12	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
13	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
14	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
15	AT342616	1	Oil Line	-
16	AT342617	1	Oil Line	-
17	AT336507	1	Hydraulic Hose	Fabricate
18	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
19	AT336507	1	Hydraulic Hose	Fabricate
20	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
21	12H327	2	Lock Washer	3/4"
22	T81029	2	Nut	-
23	AT336756	1	Hydraulic Hose	Fabricate
24	AT336756	1	Hydraulic Hose	Fabricate
25	38H1160	4	Adapter Fitting	-
26	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
27	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
28	38H1194	2	Adapter Fitting	-
29	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
30	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
31	U46753	2	Hose Clamp	-
32	19M7805	1	Screw	M10 X 45
33	14M7400	1	Lock Nut	M10
34	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
35	AT332176	1	Oil Line	-
36	AT332177	1	Oil Line	-
37	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
38	T215434	2	Clamp	-
39	19M7786	2	Screw	M10 X 30
40	AT228194	1	Hydraulic Hose	-
41	AT228194	1	Hydraulic Hose	-
42	38H1276	2	Adapter Fitting	-
43	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
44	T174275	2	Lock Washer	-
45	T78707	2	Nut	-
46	38H1418	2	Fitting	-
47	AT433930	1	Hydraulic Hose	Fabricate
48	AT131685	2	Flange Fitting	SUB FOR T72217
49	24M7240	4	Washer	13 X 25 X 3 mm
50	19H2735	4	Cap Screw	1/2" X 2"
51	T78393	1	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")
52	AT220174	1	Solenoid Hydraulic Valve	Auxiliary Valve Section Components On Seperate Page

Joystick to Joystick and Auxiliary Control Lever Pilot Controller Conversion Kit, Powerllel™

Нет текстового описания
