3-Lever to 4-Lever Pilot Controller Conversion Kit, Z-Bar

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT210683	4	Stud	Four Spool Stud Assembly Not Illustrated
1	AT438581	1	Hose Kit	Whole Goods
2	AT220959	1	Oil Line	-
3	AT220960	1	Oil Line	-
4	AT225432	1	Hydr./Pilot Control Valve	4-Lever Fingertip Controller
5	AT228192	1	Hydraulic Hose	-
6	AT228192	1	Hydraulic Hose	-
7	AT336507	1	Hydraulic Hose	Fabricate
8	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	AT336507	1	Hydraulic Hose	Fabricate
10	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11	AT340251	1	Hydraulic Hose	Fabricate
12	AT340251	1	Hydraulic Hose	Fabricate
13	AT341524	1	Plate	-
14	12H327	2	Lock Washer	3/4"
15	19M7784	1	Screw	M10 X 20
16	38H1160	2	Adapter Fitting	-
17	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
18	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
19	38H1164	2	Adapter Fitting	-
20	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
21	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
22	38H1276	2	Adapter Fitting	-
23	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
24	63H1001	2	Fitting	-
25	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
26	38H1418	2	Fitting	-
27	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
28	T78707	2	Nut	-
29	T81029	2	Nut	-
30	T167979	1	Clamp	-
31	T174275	2	Lock Washer	-
32	T238029	3	Adjusting Strap	-
33	T228348	1	Cover	-
34	AT433931	1	Hydraulic Hose	Fabricate
35	AT131685	2	Flange Fitting	SUB FOR T72217
36	24M7240	4	Washer	13 X 25 X 3 mm
37	19H2735	4	Cap Screw	1/2" X 2"
38	T78393	1	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")
39	AT220174	1	Solenoid Hydraulic Valve	Auxiliary Valve Section Components On Seperate Page

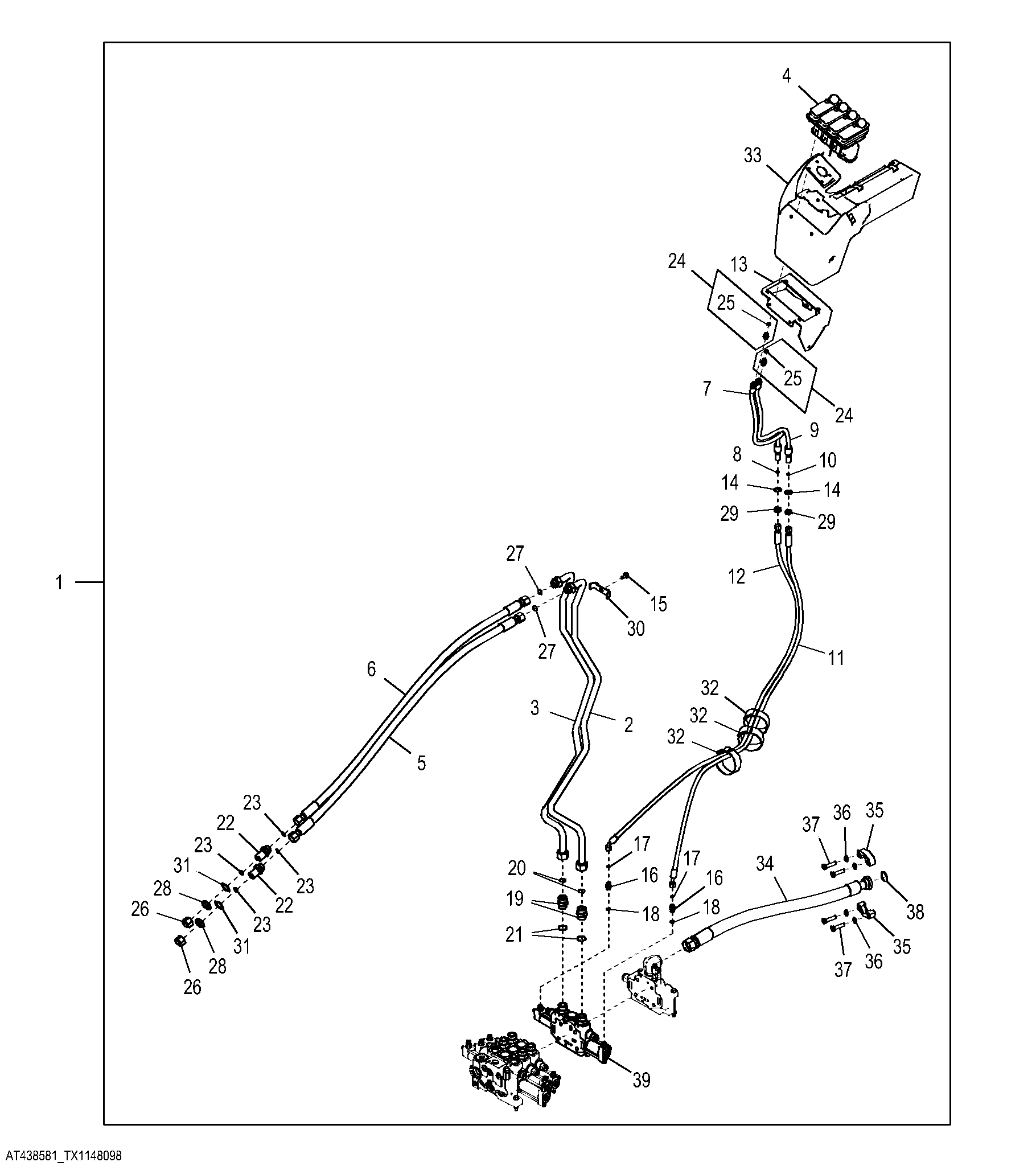

3-Lever to 4-Lever Pilot Controller Conversion Kit, Z-Bar

Нет текстового описания
