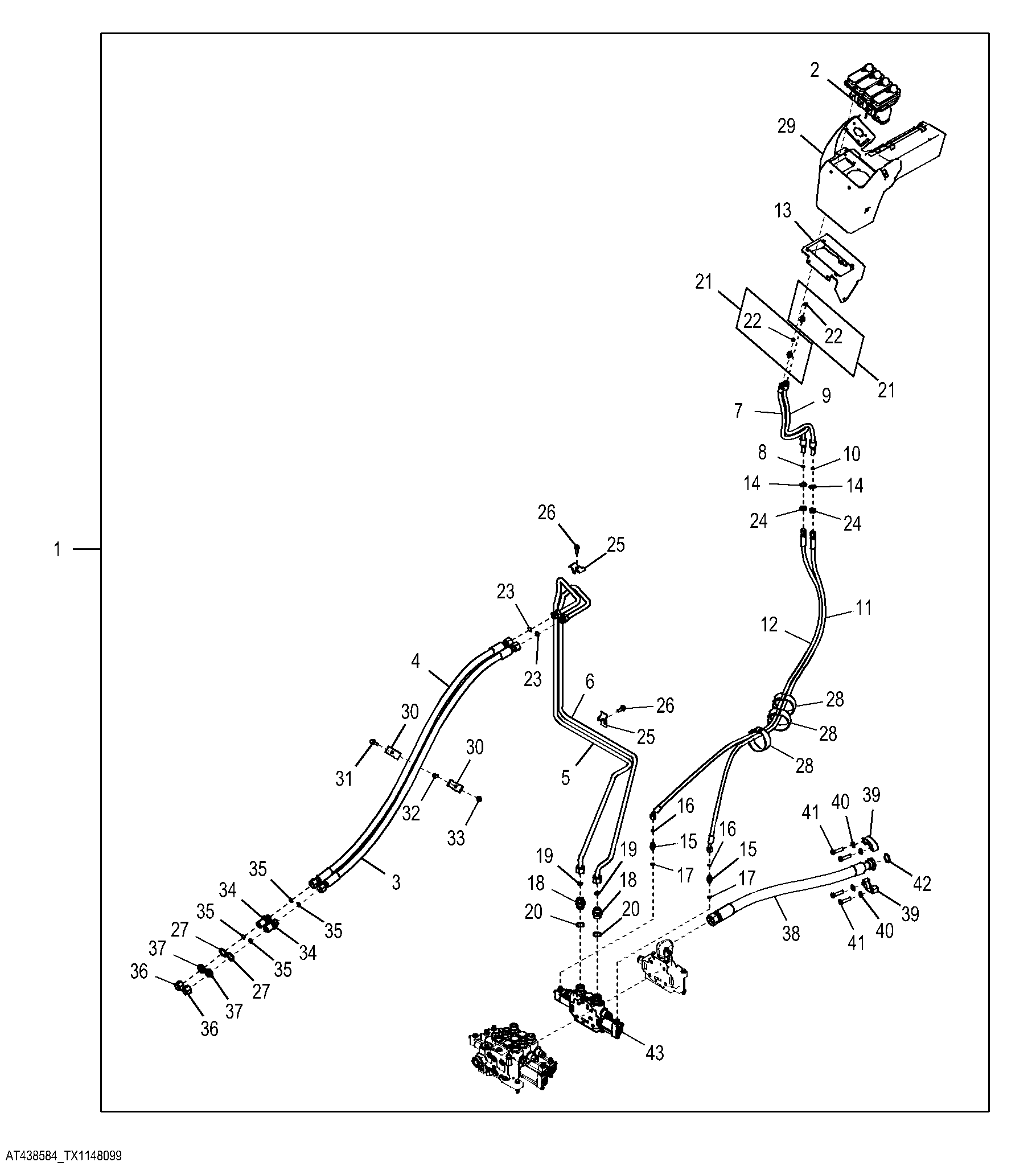

3-Lever to 4-Lever Pilot Controller Conversion Kit, Powerllel™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT21683	4	Valve	Four Spool Stud Assembly Not Illustrated
1	AT438584	1	Hose Kit	WHOLE GOODS
2	AT225432	1	Hydr./Pilot Control Valve	4-Lever Fingertip Controller
3	AT228194	1	Hydraulic Hose	-
4	AT228194	1	Hydraulic Hose	-
5	AT332244	1	Oil Line	-
6	AT332245	1	Oil Line	-
7	AT336507	1	Hydraulic Hose	Fabricate
8	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	AT336507	1	Hydraulic Hose	Fabricate
10	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11	AT340251	1	Hydraulic Hose	Fabricate
12	AT340251	1	Hydraulic Hose	Fabricate
13	AT341524	1	Plate	-
14	12H327	2	Lock Washer	3/4"
15	38H1160	2	Adapter Fitting	-
16	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
17	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
18	38H1194	2	Adapter Fitting	-
19	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
20	R29936	2	O-Ring	-
21	63H1001	2	Fitting	-
22	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
23	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
24	T81029	2	Nut	-
25	T215434	2	Clamp	-
26	19M7786	2	Screw	M10 X 30
27	T174275	2	Lock Washer	-
28	T238029	3	Adjusting Strap	-
29	T228348	1	Cover	-
30	U46753	2	Hose Clamp	-
31	19M7805	1	Screw	M10 X 45
32	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
33	14M7400	1	Lock Nut	M10
34	38H1276	2	Adapter Fitting	-
35	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
36	38H1418	2	Fitting	-
37	T78707	2	Nut	-
38	AT433931	1	Hydraulic Hose	Fabricate
39	AT131685	2	Flange Fitting	SUB FOR T72217
40	24M7240	4	Washer	13 X 25 X 3 mm
41	19H2735	4	Cap Screw	1/2" X 2"
42	T78393	1	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")
43	AT220174	1	Solenoid Hydraulic Valve	Auxiliary Valve Section Components on Separate Page

3-Lever to 4-Lever Pilot Controller Conversion Kit, Powerllel™

Нет текстового описания
