2-Lever to 3-Lever Pilot Controller Conversion Kit, Z-Bar

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT210951	4	Stud	Three Spool Stud Assembly Not Illustrated
1	AT438587	1	Control Kit	Whole Goods
2	AT341526	1	Plate	-
3	AT300154	1	Hydr./Pilot Control Valve	3-Lever Fingertip Controller
4	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
5	AT336507	1	Hydraulic Hose	Fabricate
6	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
7	12H327	2	Lock Washer	3/4"
8	T81029	2	Nut	-
9	AT336756	1	Hydraulic Hose	Fabricate
10	AT336756	1	Hydraulic Hose	Fabricate
11	38H1160	2	Adapter Fitting	-
12	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
13	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
14	38H1164	2	Adapter Fitting	-
15	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
16	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
17	AT220957	1	Oil Line	-
18	AT220958	1	Oil Line	-
19	T167979	1	Clamp	-
20	19M7784	1	Screw	M10 X 20
21	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
22	AT228192	1	Hydraulic Hose	-
23	AT228192	1	Hydraulic Hose	-
24	38H1276	2	Adapter Fitting	-
25	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
26	T174275	2	Lock Washer	-
27	T78707	2	Nut	-
28	38H1418	2	Fitting	-
29	AT433930	1	Hydraulic Hose	Fabricate
30	AT131685	2	Flange Fitting	SUB FOR T72217
31	24M7240	4	Washer	13 X 25 X 3 mm
32	19H2735	4	Cap Screw	1/2" X 2"
33	T78393	1	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")
34	AT336507	1	Hydraulic Hose	Fabricate
35	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
37	AT220174	1	Solenoid Hydraulic Valve	Auxiliary Valve Section Components On Seperate Page

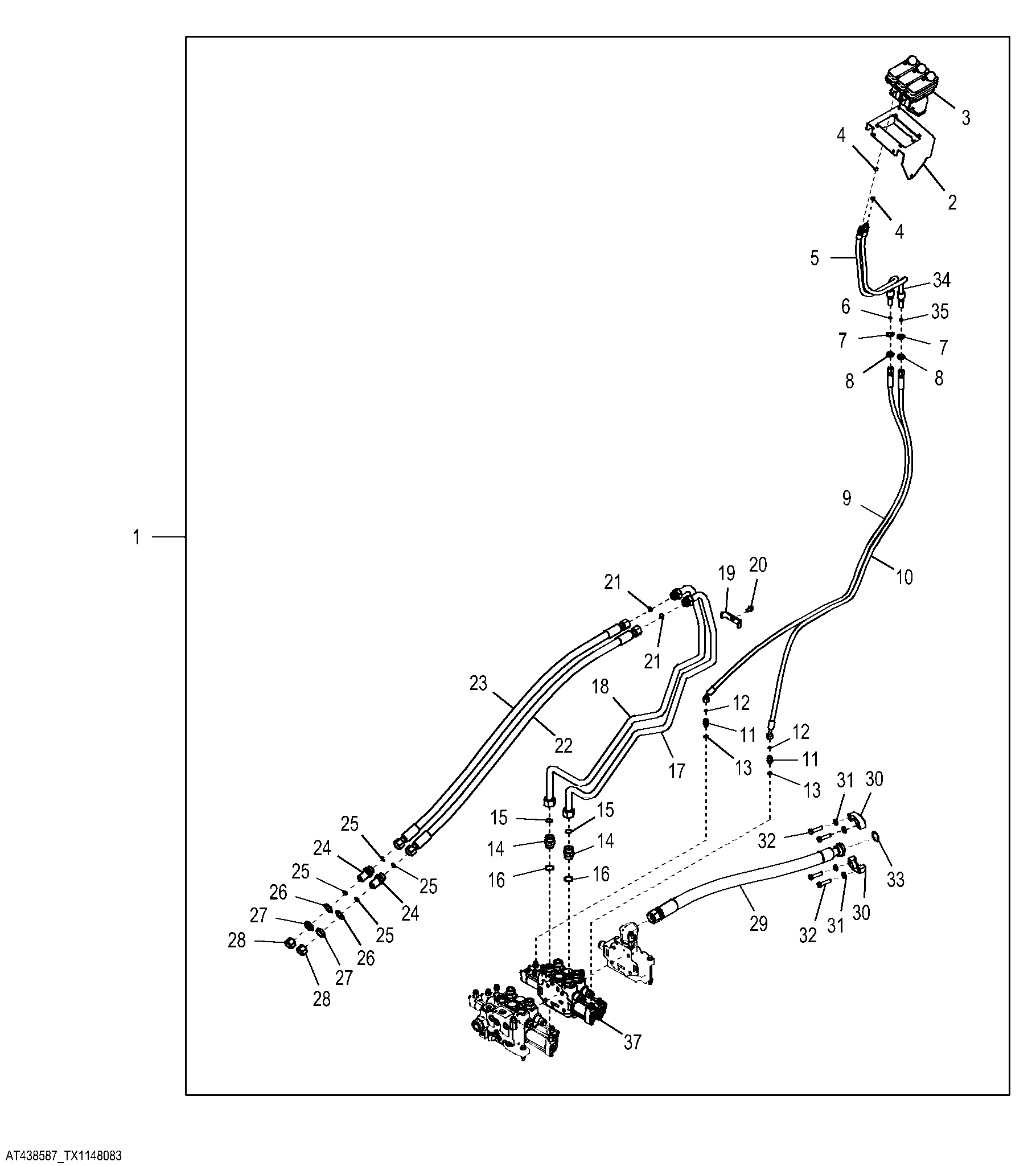

2-Lever to 3-Lever Pilot Controller Conversion Kit, Z-Bar

Нет текстового описания
