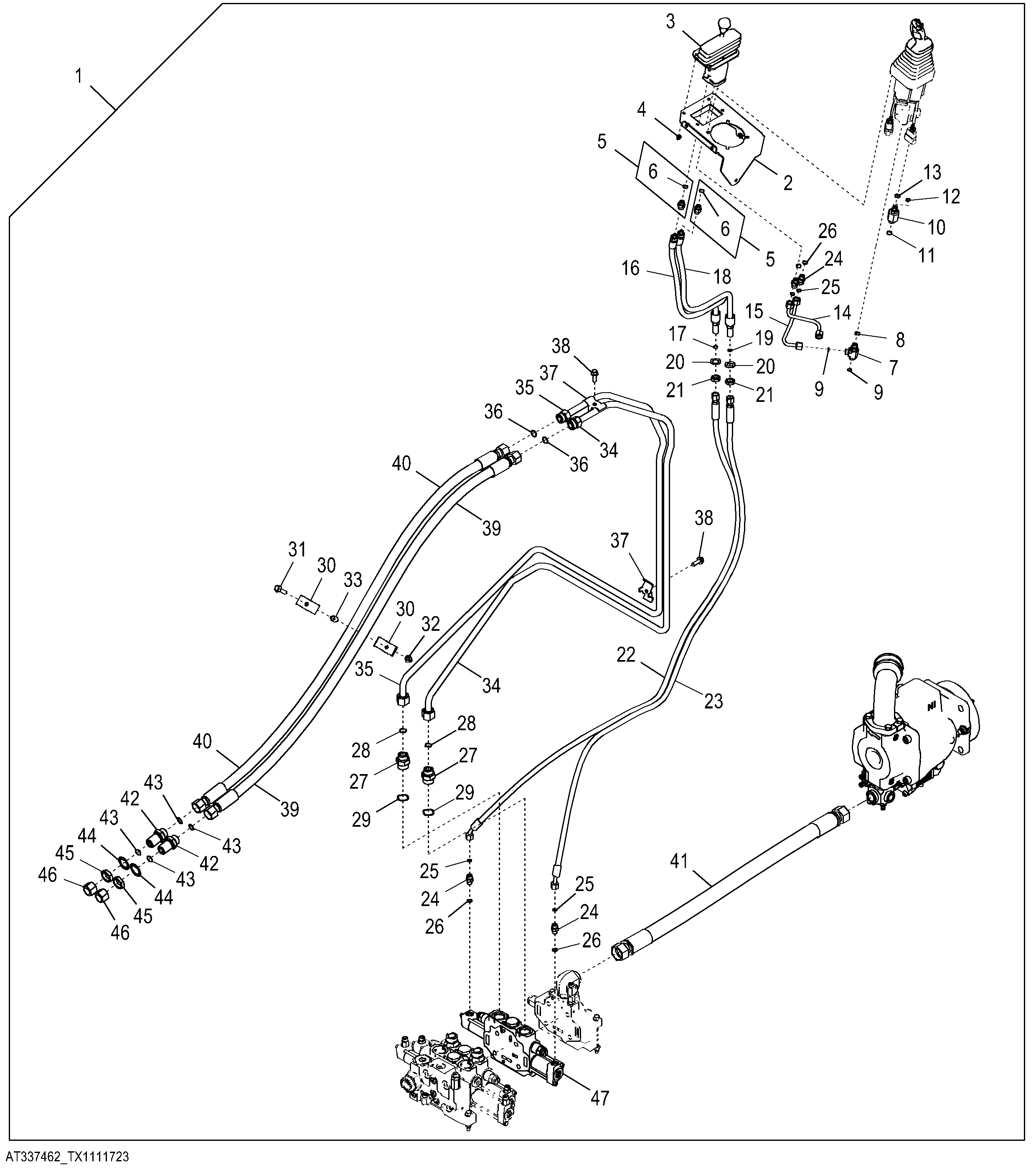

Joystick to Joystick and Auxiliary Control Lever Pilot Controller Conversion Kit (Powerllel™)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT337462	1	Hose Kit	Whole Goods
2	AT341527	1	Plate	-
3	AT228250	1	Hydr./Pilot Control Valve	Auxiliary Control Lever Components On Separate Page
4	14M7397	4	Lock Nut	M6
5	62H1001	2	Adapter Fitting	SUB FOR 63H1001
6	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
7	38H1023	1	Tee Fitting	-
8	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
9	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	38H1642	1	Adapter Fitting	-
11	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
12	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
13	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
14	AT342616	1	Oil Line	-
15	AT342617	1	Oil Line	-
16	AT336507	1	Hydraulic Hose	-
17	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
18	AT336507	1	Hydraulic Hose	-
19	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
20	12H327	2	Lock Washer	3/4"
21	T81029	2	Nut	17.475 mm (11/16")
22	AT336756	1	Hydraulic Hose	-
23	AT336756	1	Hydraulic Hose	-
24	38H1160	4	Adapter Fitting	-
25	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
26	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
27	38H1194	2	Adapter Fitting	-
28	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
29	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
30	U46753	2	Hose Clamp	-
31	19M7805	1	Screw	M10 X 45
32	14M7400	1	Lock Nut	M10
33	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
34	AT332176	1	Oil Line	-
35	AT332177	1	Oil Line	-
36	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
37	T215434	2	Clamp	-
38	19M7786	2	Screw	M10 X 30
39	AT228194	1	Hydraulic Hose	-
40	AT228194	1	Hydraulic Hose	-
41	AT366773	1	Hydraulic Hose	SUB FOR AT350942
42	38H1276	2	Adapter Fitting	-
43	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
44	T174275	2	Lock Washer	30.950 mm (1-7/32")
45	T78707	2	Nut	30.175 mm (1-3/16")
46	38H1418	2	Fitting	-
47	AT220174	1	Solenoid Hydraulic Valve	Auxiliary Valve Section Components On Separate Page
47	AT210951	4	Stud	Stud Assembly for 3-Spool Control Valve

Joystick to Joystick and Auxiliary Control Lever Pilot Controller Conversion Kit (Powerllel™)

Нет текстового описания
