Joystick Steering Conversion Kit

Joystick Steering Conversion Kit

Joystick Steering Conversion Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

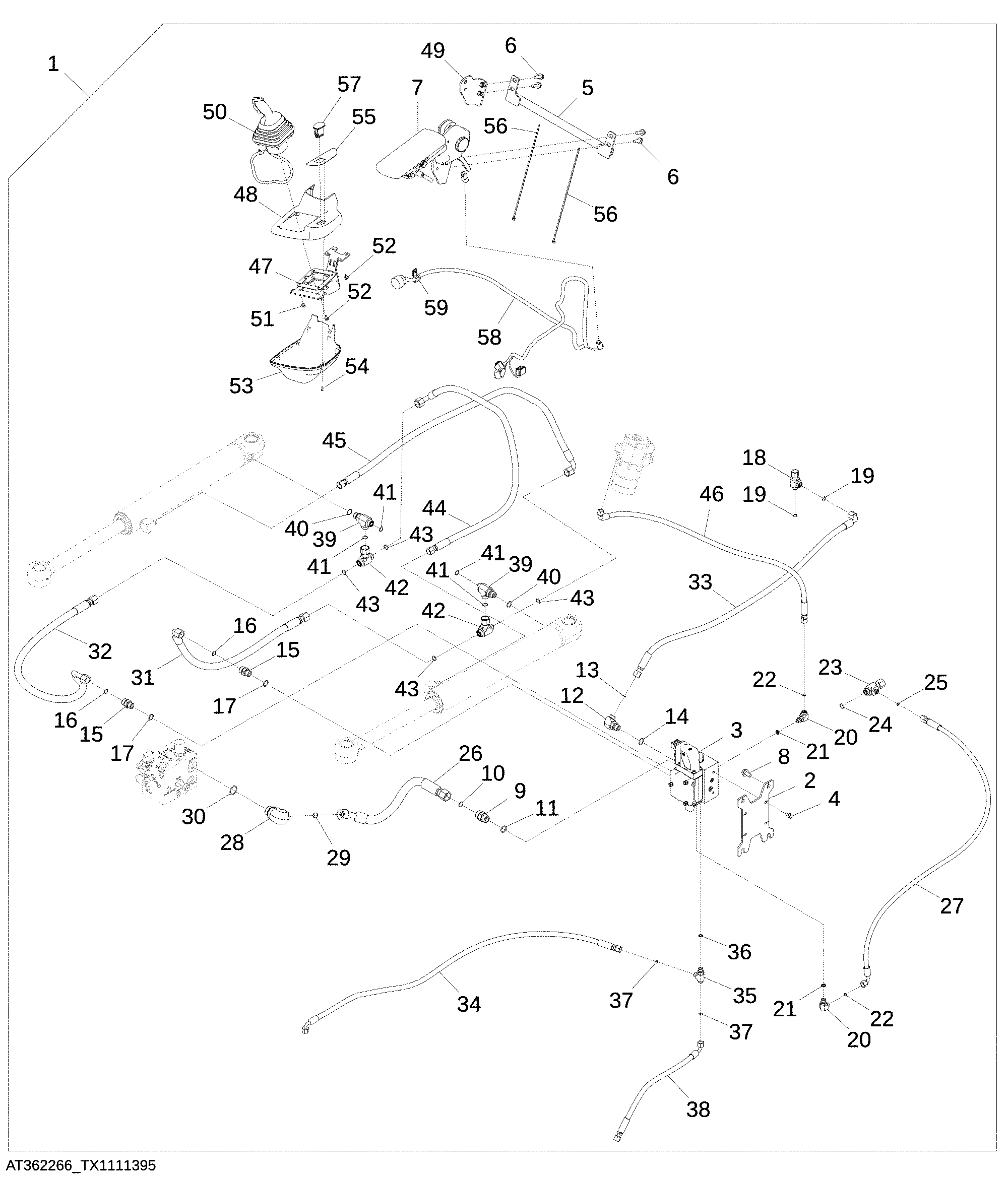

Joystick Steering Conversion Kit

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT491771	1	Software	Software Available at JD Point
1	AT362266	1	Steering Column Kit	Whole Goods
2	T226928	1	Plate	-
3	AT396147	1	Valve Stack	Joystick Steering Valve Components On Separate Page, SUB FOR AT380854, AT360792, OR AT351575
4	19M7865	4	Screw	M8 X 16
5	AT353410	1	Bracket	Stiffener
6	19M7786	4	Screw	M10 X 30
7	-	1	Part 8	Left Armrest Components On Separate Page
8	19M7788	4	Screw	M12 X 25
9	38H1163	1	Adapter Fitting	-
10	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
11	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
12	38H1012	1	Elbow Fitting	-
13	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
14	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
15	38H1162	2	Adapter Fitting	-
16	T77932	2	O-Ring	-
17	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
18	38H1031	1	Tee Fitting	-
19	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
20	38H1004	2	Elbow Fitting	-
21	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
22	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
23	38H1546	1	Tee Fitting	-
24	T77932	1	O-Ring	-
25	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
26	AT347430	1	Hydraulic Hose	Fabricate
27	AT336696	1	Hydraulic Hose	Fabricate
28	38H1052	1	Elbow Fitting	-
29	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
30	R29936	1	O-Ring	-
31	AT342841	1	Hydraulic Hose	Fabricate
32	AT342850	1	Hydraulic Hose	Fabricate
33	AT355160	1	Hydraulic Hose	Fabricate
34	AT356384	1	Hydraulic Hose	Fabricate
35	AT336654	1	Tee Fitting	-
36	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
37	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
38	AT356381	1	Hydraulic Hose	Fabricate
39	38H1025	2	Tee Fitting	-
40	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
41	T77932	4	O-Ring	-
42	38H1040	2	Tee Fitting	-
43	T77932	2	O-Ring	-
44	AT342878	1	Hydraulic Hose	Fabricate
45	AT342878	1	Hydraulic Hose	Fabricate
46	AT358897	1	Hydraulic Hose	Fabricate
47	AT311997	1	Bracket	-
48	AT314833	1	Cover	Upper Left Arm Controls
49	AT331844	1	Bracket	Right Seat Mounting
50	AT365217	1	Electrohydraulic Controller	Left-hand Joystick Handle Components On Separate Page, SUB FOR AT345513
51	14M7397	4	Lock Nut	M6
52	19M7774	7	Screw	M6 X 12
53	T209539	1	Cover	Lower Left Arm Controls
54	37M7340	6	Bolt	-
55	T214514	1	Label	Joystick Steering
56	H77698	2	Tie Band	-
57	AT311633	1	Toggle/Rocker Switch	Joystick Steering Enable Switch
58	AT311621	1	Wiring Harness	Joystick Steering
59	T74416	1	Clamp	-
