4-Spool Loader Control Valve (Z-Bar) ( - 674384)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT210683	4	Stud	Stud Assembly for 4-Spool Control Valve
1	AT225794	1	Hyd Actuated Control Valve	-
1	AT210969	1	Seal Kit	Interface Seal Kit
2	38H1160	6	Adapter Fitting	-
3	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
4	R26448	1	O-Ring	-
5	38H1164	6	Adapter Fitting	-
6	T76938	6	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
7	R29936	6	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
8	38H1197	1	Adapter Fitting	-
9	T78784	1	O-Ring	-
10	U13639	1	O-Ring	-
11	19M7807	1	Screw	M10 X 60
12	19M8896	2	Screw	M10 X 140
13	14M7400	3	Lock Nut	M10
14	T178487	1	Orifice	-
15	AT353746	2	Check Valve	-
16	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
17	R26448	1	O-Ring	-
18	38H1212	1	Adapter Fitting	-
19	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
20	R26448	1	O-Ring	-
21	38H1030	1	Tee Fitting	-
22	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
23	38H1325	1	Elbow Fitting	-
23	38H1008	1	Elbow Fitting	-
24	U13639	1	O-Ring	-
25	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
25	T78612	1	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
26	AT210694	1	Manifold	Inlet Valve Section Components On Separate Page
27	AT220174	2	Solenoid Hydraulic Valve	Auxiliary Valve Section Components On Separate Page
28	AT222390	1	Spool Valve	Bucket Valve Section Components On Separate Page
29	AT224770	1	Hyd Actuated Control Valve	Boom Valve Section Components On Separate Page
30	AT225799	1	Flow Control Hyd. Valve	Outlet Valve Section Components On Separate Page

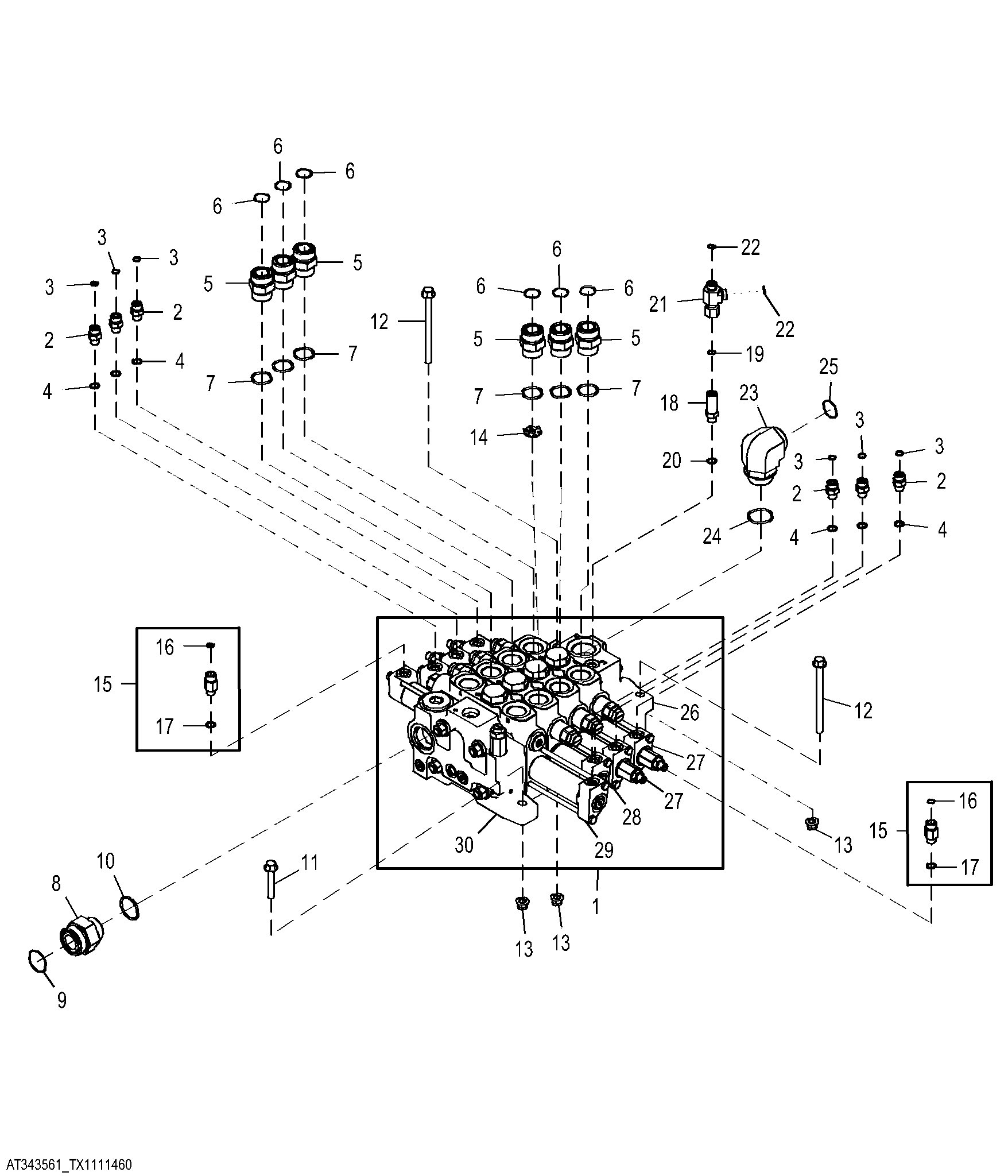

4-Spool Loader Control Valve (Z-Bar) ( - 674384)
