Открытый узел

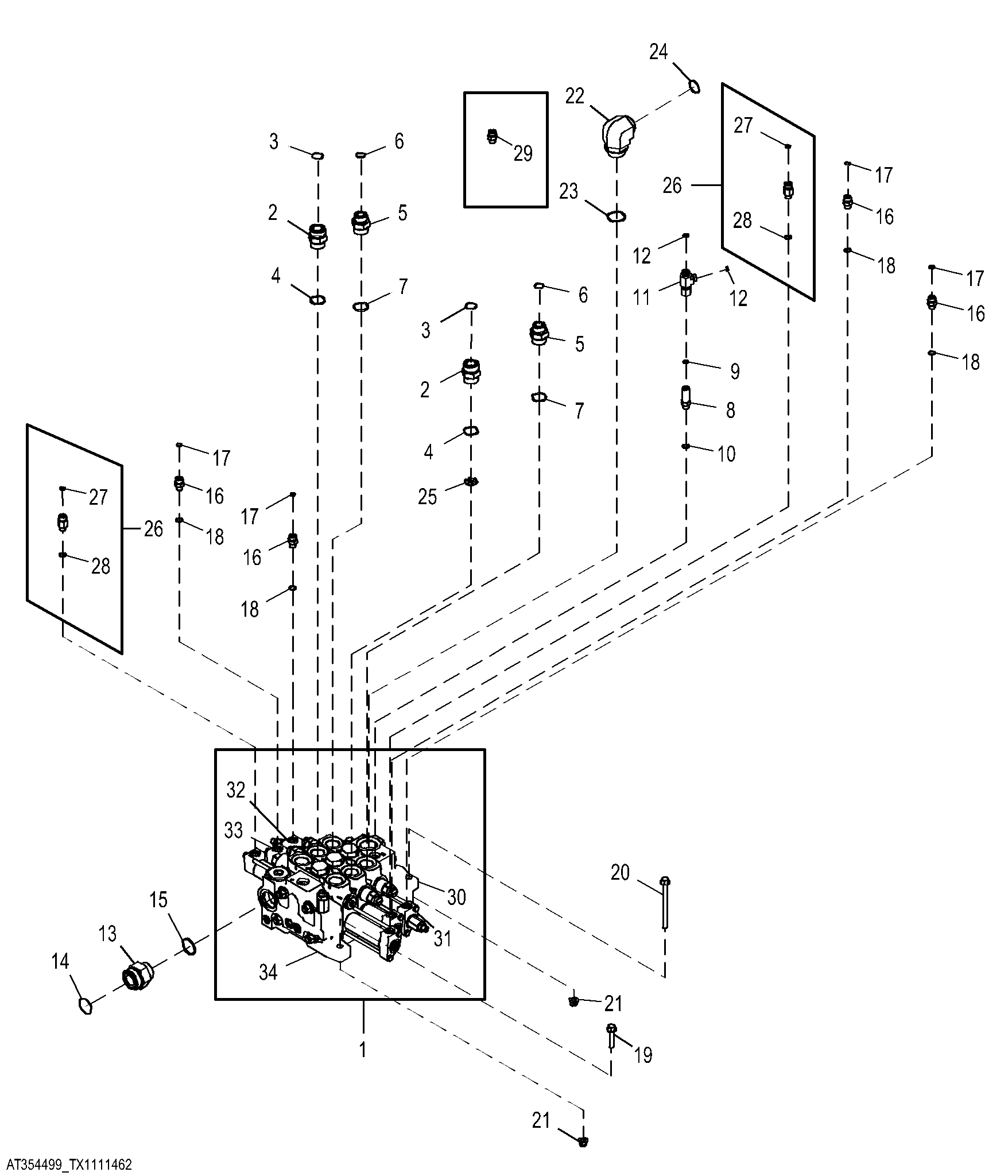

3-Spool Loader Control Valve (Powerllel™)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT210951	4	Stud	Stud Assembly for 3-Spool Control Valve
1	AT225793	1	Hyd Actuated Control Valve	-
1	AT210969	1	Seal Kit	Interface Seal Kit
2	38H1164	2	Adapter Fitting	-
3	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
4	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
5	38H1194	2	Adapter Fitting	-
6	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
7	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
8	38H1212	1	Adapter Fitting	-
9	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	38H1030	1	Tee Fitting	-
12	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
13	38H1197	1	Adapter Fitting	-
14	T78784	1	O-Ring	37.821 X 1.778 mm (1.489" X 0.070")
15	U13639	1	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")
16	38H1160	4	Adapter Fitting	-
17	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
18	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
19	19M7806	1	Screw	M10 X 50
20	19M8896	2	Screw	M10 X 140
21	14M7400	3	Lock Nut	M10
22	38H1008	1	Elbow Fitting	-
23	U13639	1	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")
24	38H1325	1	Elbow Fitting	-
24	38H1008	1	Elbow Fitting	-
25	T178487	1	Orifice	-
26	T78612	1	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
26	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
27	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
28	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
29	38H1160	1	Adapter Fitting	ORDER 38H1212
30	AT210694	1	Manifold	Inlet Valve Section Components On Separate Page
31	AT220174	1	Solenoid Hydraulic Valve	Auxiliary Valve Section Components On Separate Page
32	AT222390	1	Spool Valve	Bucket Valve Section Components On Separate Page
33	AT224770	1	Hyd Actuated Control Valve	Boom Valve Section Components On Separate Page
34	AT225799	1	Flow Control Hyd. Valve	Outlet Valve Section Components On Separate Page

3-Spool Loader Control Valve (Powerllel™)

Нет текстового описания
