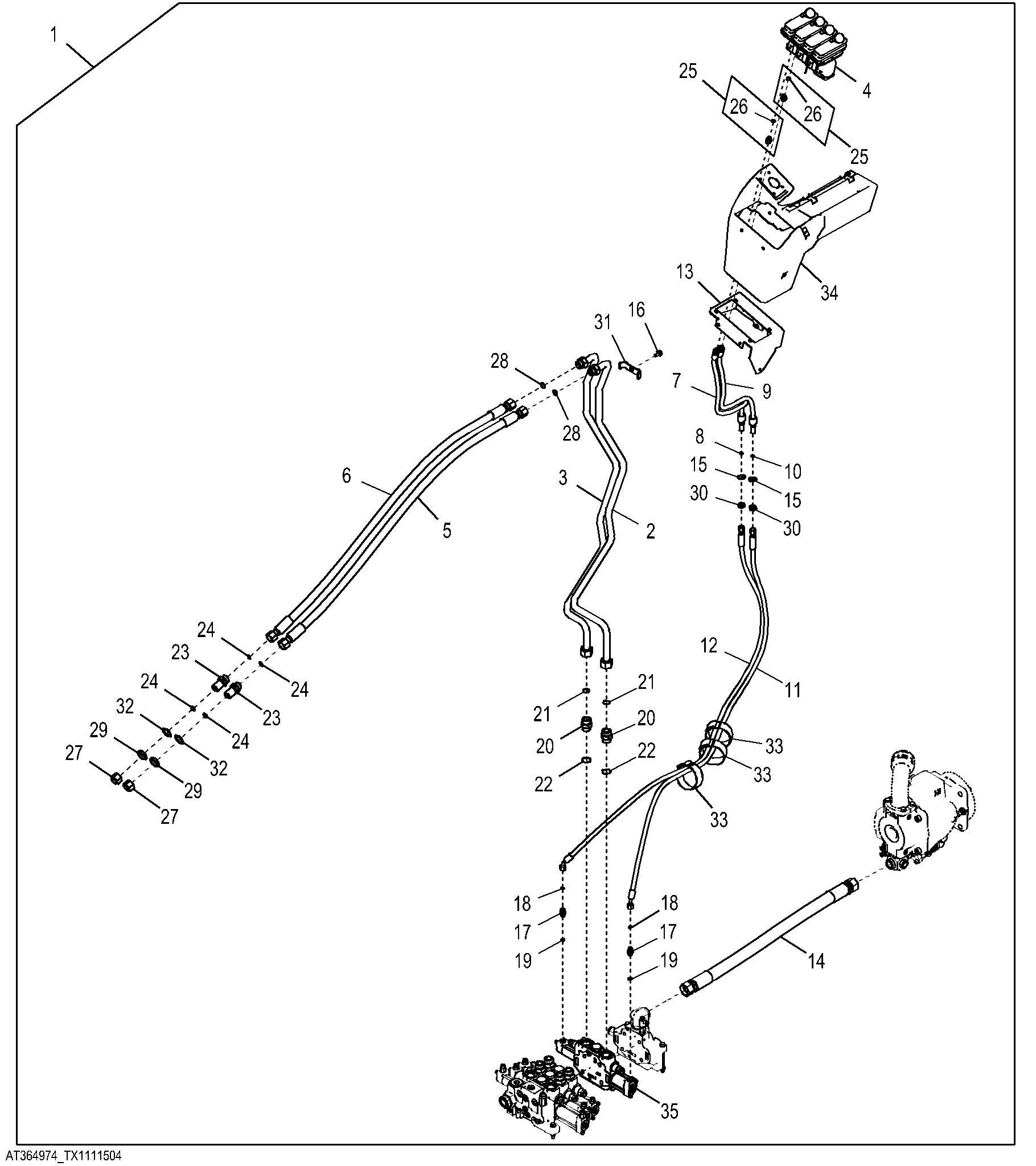

3-Lever to 4-Lever Pilot Controller Conversion Kit (Z-Bar)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT364974	1	Hose Kit	Whole Goods
2	AT220959	1	Oil Line	-
3	AT220960	1	Oil Line	-
4	AT225432	1	Hydr./Pilot Control Valve	4-Lever Fingertip Controller Components On Separate Page
5	AT228192	1	Hydraulic Hose	-
6	AT228192	1	Hydraulic Hose	-
7	AT336507	1	Hydraulic Hose	Fabricate
8	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	AT336507	1	Hydraulic Hose	Fabricate
10	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11	AT340251	1	Hydraulic Hose	Fabricate
12	AT340251	1	Hydraulic Hose	Fabricate
13	AT341524	1	Plate	-
14	AT366733	1	Hydraulic Hose	Fabricate
15	12H327	2	Lock Washer	3/4"
16	19M7784	1	Screw	M10 X 20
17	38H1160	2	Adapter Fitting	-
18	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
19	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
20	38H1164	2	Adapter Fitting	-
21	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
22	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
23	38H1276	2	Adapter Fitting	-
24	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
25	62H1001	2	Adapter Fitting	SUB FOR 63H1001
26	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
27	38H1418	2	Fitting	-
28	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
29	T78707	2	Nut	30.175 mm (1-3/16")
30	T81029	2	Nut	17.475 mm (11/16")
31	T167979	1	Clamp	-
32	T174275	2	Lock Washer	30.950 mm (1-7/32")
33	T238029	3	Adjusting Strap	-
34	T228348	1	Cover	-
35	AT220174	1	Solenoid Hydraulic Valve	Auxiliary Valve Section Components On Separate Page
35	AT210683	4	Stud	Stud Assembly for 4-Spool Control Valve

3-Lever to 4-Lever Pilot Controller Conversion Kit (Z-Bar)
