3-Lever to 4-Lever Pilot Controller Conversion Kit (Powerllel™)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT364977	1	Hose Kit	Whole Goods
2	AT225432	1	Hydr./Pilot Control Valve	4-Lever Fingertip Controller
3	AT228194	1	Hydraulic Hose	-
4	AT228194	1	Hydraulic Hose	-
5	AT332244	1	Oil Line	-
6	AT332245	1	Oil Line	-
7	AT336507	1	Hydraulic Hose	-
8	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	AT336507	1	Hydraulic Hose	-
10	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11	AT340251	1	Hydraulic Hose	-
12	AT340251	1	Hydraulic Hose	-
13	AT341524	1	Plate	-
14	AT366733	1	Hydraulic Hose	-
15	12H327	2	Lock Washer	3/4"
16	38H1160	2	Adapter Fitting	-
17	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
18	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
19	38H1194	2	Adapter Fitting	-
20	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
21	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
22	63H1001	2	Fitting	-
23	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
24	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
25	T81029	2	Nut	17.475 mm (11/16")
26	T215434	2	Clamp	-
27	19M7786	2	Screw	M10 X 30
28	T174275	2	Lock Washer	30.950 mm (1-7/32")
29	T238029	3	Adjusting Strap	-
30	T228348	1	Cover	-
31	U46753	2	Hose Clamp	-
32	19M7805	1	Screw	M10 X 45
33	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
34	14M7400	1	Lock Nut	M10
35	38H1276	2	Adapter Fitting	-
36	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
37	38H1418	2	Fitting	-
38	T78707	2	Nut	30.175 mm (1-3/16")
39	AT220174	1	Solenoid Hydraulic Valve	Auxiliary Valve Section Components On Separate Page
39	AT210683	4	Stud	Stud Assembly for 4-Spool Control Valve

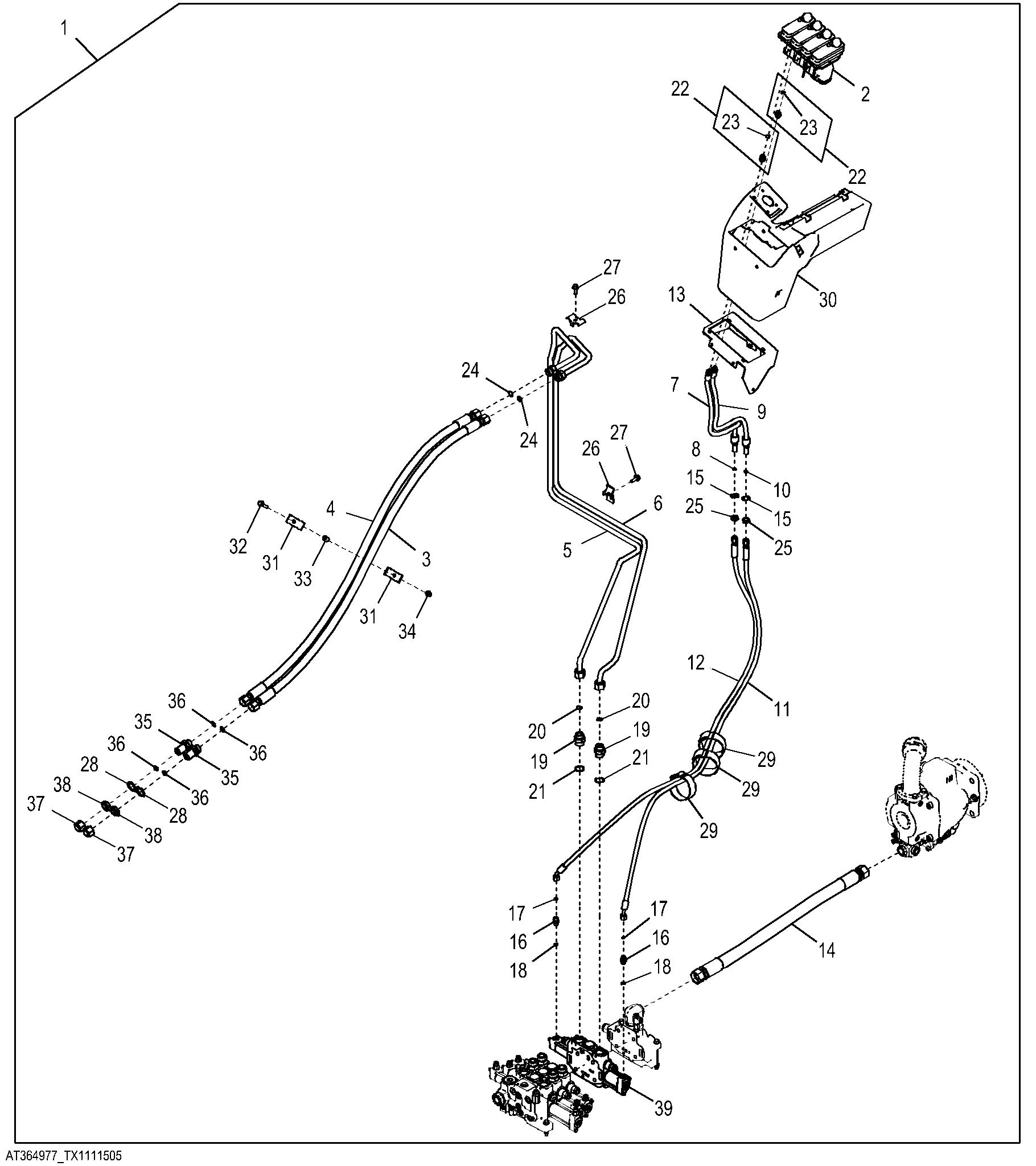

3-Lever to 4-Lever Pilot Controller Conversion Kit (Powerllel™)
