2-Lever to 3-Lever Pilot Controller Conversion Kit (Powerllel™)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT337468	1	Control Kit	Whole Goods
2	AT341526	1	Plate	-
3	AT300154	1	Hydr./Pilot Control Valve	3-Lever Fingertip Controller
4	62H1001	2	Adapter Fitting	SUB FOR 63H1001
5	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
6	AT336507	1	Hydraulic Hose	-
7	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
8	AT336507	1	Hydraulic Hose	-
9	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
10	12H327	2	Lock Washer	3/4"
11	T81029	2	Nut	17.475 mm (11/16")
12	AT336756	1	Hydraulic Hose	-
13	AT336756	1	Hydraulic Hose	-
14	38H1160	2	Adapter Fitting	-
15	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
16	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
17	38H1194	2	Adapter Fitting	-
18	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
19	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
20	AT332176	1	Oil Line	-
21	AT332177	1	Oil Line	-
22	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
23	AT228194	1	Hydraulic Hose	-
24	AT228194	1	Hydraulic Hose	-
25	T215434	2	Clamp	-
26	19M7786	2	Screw	M10 X 30
27	U46753	2	Hose Clamp	-
28	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
29	19M7805	1	Screw	M10 X 45
30	14M7400	1	Lock Nut	M10
31	38H1276	2	Adapter Fitting	-
32	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
33	T174275	2	Lock Washer	30.950 mm (1-7/32")
34	T78707	2	Nut	30.175 mm (1-3/16")
35	38H1418	2	Fitting	-
36	AT366773	1	Hydraulic Hose	SUB FOR AT350942
37	AT220174	1	Solenoid Hydraulic Valve	Auxiliary Valve Section Components On Separate Page
37	AT210951	4	Stud	Stud Assembly for 3-Spool Control Valve

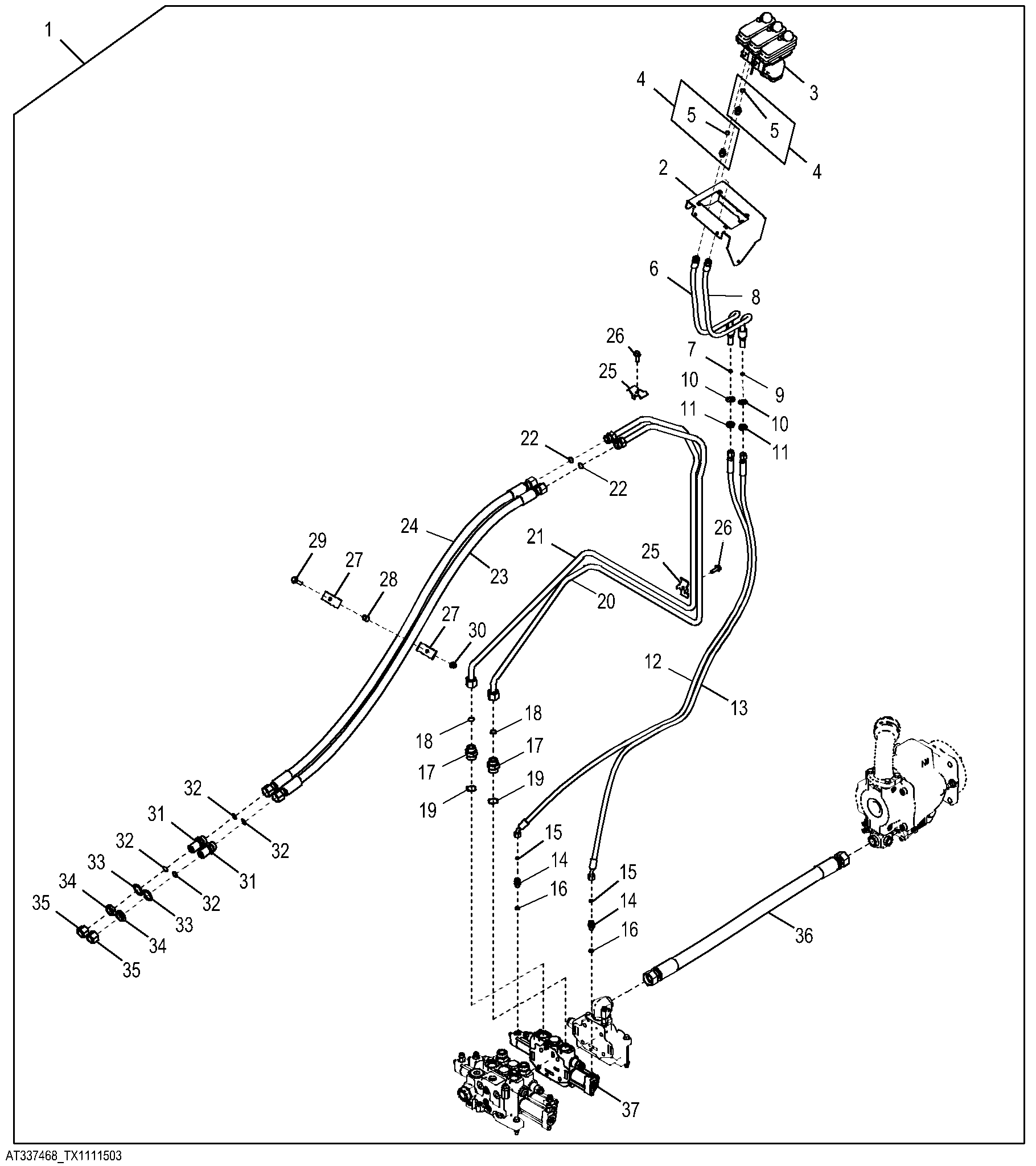

2-Lever to 3-Lever Pilot Controller Conversion Kit (Powerllel™)
