Открытый узел

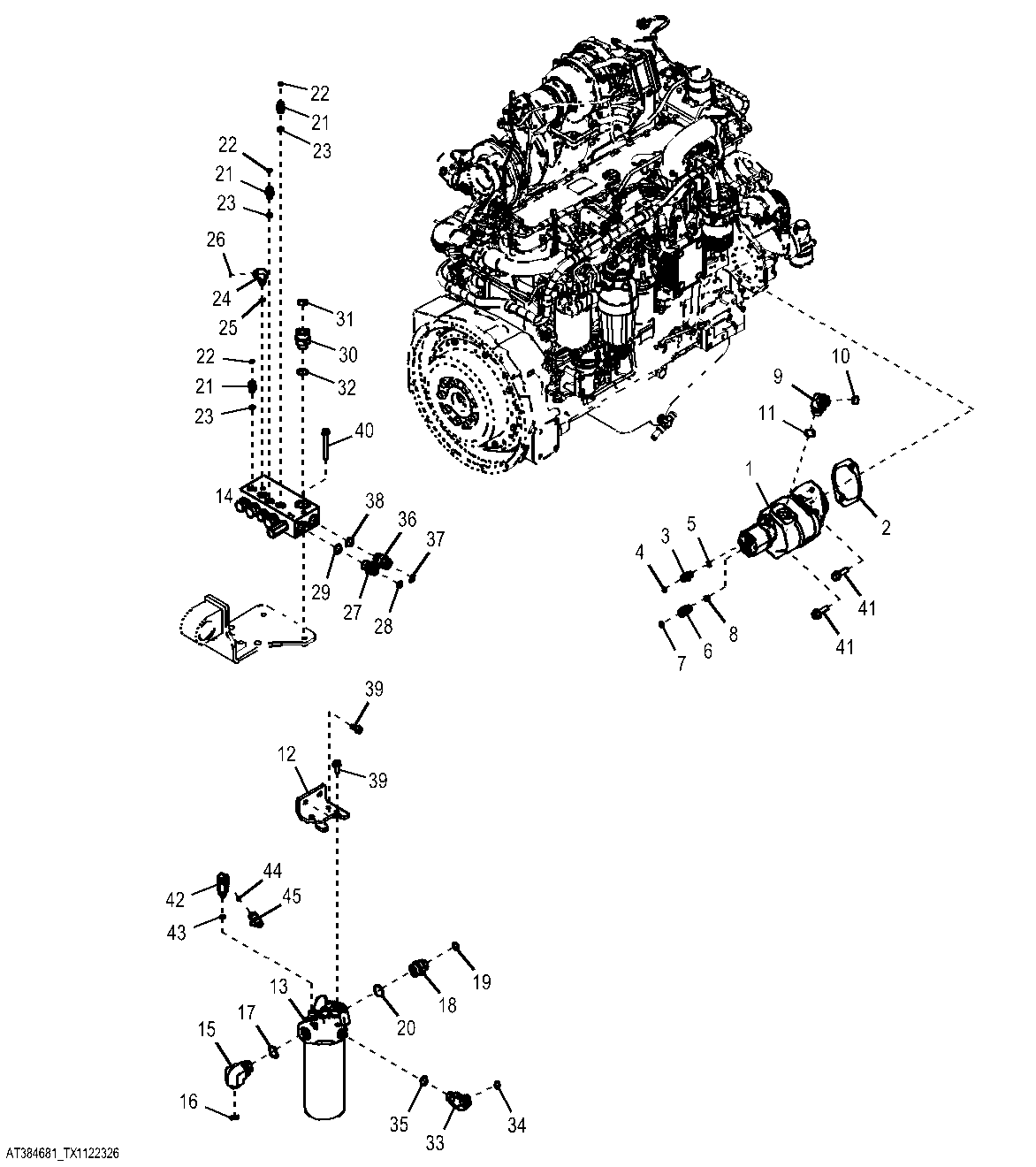

Power Train Cooling System Components for Axle Cooling

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT391852	1	Seal Kit	-
1	AT429447	1	Oil Pump	Power Train Pump, INCLUDES AT391853, (2) 19H1648, AND (2) 12M7066
1	12M7066	2	Lock Washer	10 mm
1	AT391853	1	Oil Pump	Rear Axle Circulation Pump
1	19H1648	2	Cap Screw	3/8" X 3/4"
2	R501137	1	Gasket	-
3	38H5037	1	Adapter Fitting	-
4	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
5	51M7042	1	O-Ring	13.300 X 2.200 mm
6	38H5003	1	Adapter Fitting	-
7	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
8	51M7043	1	O-Ring	15.300 X 2.200 mm
9	38H5129	1	Elbow Fitting	-
10	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
11	51M7047	1	O-Ring	23.600 X 2.900 mm
12	T278305	1	Bracket	-
13	AT390188	1	Filter Head	INCLUDES AT367840 AND AT305048
13	AT367840	1	Oil Filter	-
13	AT305048	1	Filter Head	INCLUDES AT307045
13	AT307045	1	Pressure Switch	Transmission Oil Filter Restriction Switch, INCLUDES P46051
13	P46051	1	O-Ring	10.770 X 2.616 mm (0.424" X 0.103")
14	AT429330	1	Flow Control Hyd. Valve	Power Train Flow Divider Manifold Components On Separate Page
15	38H1052	1	Elbow Fitting	-
16	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
17	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
18	38H1194	1	Adapter Fitting	-
19	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
20	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
21	38H1160	3	Adapter Fitting	-
22	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
23	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
24	38H1004	1	Elbow Fitting	-
25	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
26	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
27	38H1329	1	Adapter Fitting	-
28	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
29	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
30	38H1179	1	Adapter Fitting	-
31	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
32	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
33	38H1048	1	Elbow Fitting	-
34	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
35	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
36	38H1163	1	Adapter Fitting	-
37	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
38	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
39	19M7785	6	Screw	M10 X 25
40	19M7811	2	Screw	M10 X 90
41	19M7791	2	Bolt	M12 X 40
42	38H1568	1	Elbow Fitting	-
43	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
44	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
45	AT320593	1	Fitting	Sample Port
45	T217791	1	Label	Transmission Oil

Power Train Cooling System Components for Axle Cooling
