4-Spool Loader Control Valve (Z-Bar) (674385 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT225794	1	Hyd Actuated Control Valve	4-Spool
2	AT224770	1	Hyd Actuated Control Valve	Boom Valve Section Components on Separate Page
3	AT210694	1	Manifold	Inlet Valve Section Components on Separate Page
4	AT225799	1	Flow Control Hyd. Valve	Outlet Valve Section Components on Separate Page
5	AT220174	2	Solenoid Hydraulic Valve	Auxiliary Valve Section Components on Separate Page
6	AT222390	1	Spool Valve	Bucket Valve Section Components on Separate Page
7	38H1160	6	Adapter Fitting	-
8	T77613	6	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	R26448	6	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
10	38H1164	6	Adapter Fitting	-
11	T76938	6	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
12	R29936	6	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
13	38H1197	1	Adapter Fitting	-
14	T78784	1	O-Ring	37.821 X 1.778 mm (1.489" X 0.070")
15	U13639	1	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")
16	19M7807	1	Screw	M10 X 60
17	19M8896	2	Screw	M10 X 140
18	14M7400	3	Lock Nut	M10
19	T178487	1	Orifice	-
20	AT353746	2	Check Valve	-
21	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
22	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
23	38H1023	1	Tee Fitting	-
24	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
25	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
26	38H1165	1	Adapter Fitting	-
27	T78612	1	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
28	U13639	1	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")

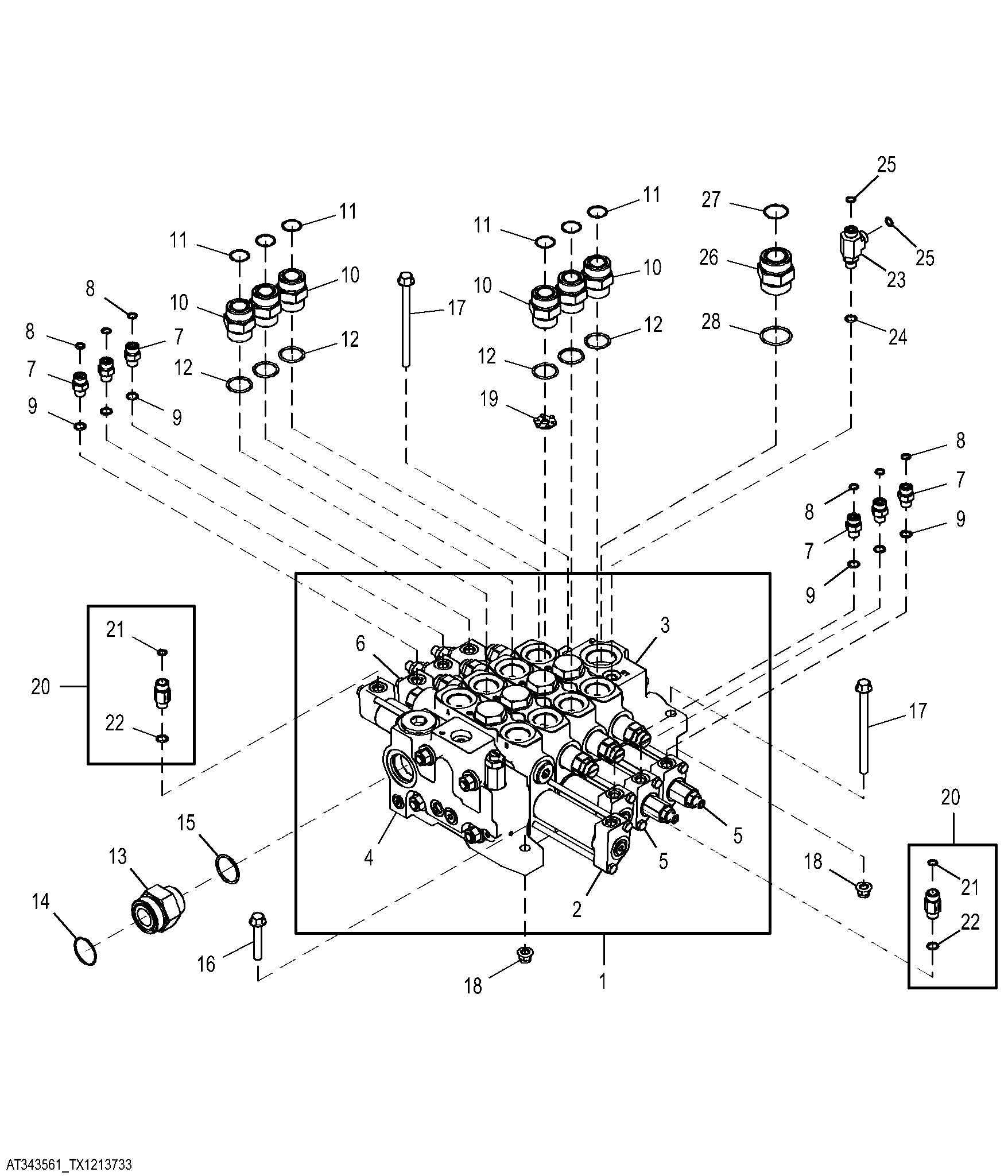

4-Spool Loader Control Valve (Z-Bar) (674385 - )

Нет текстового описания
