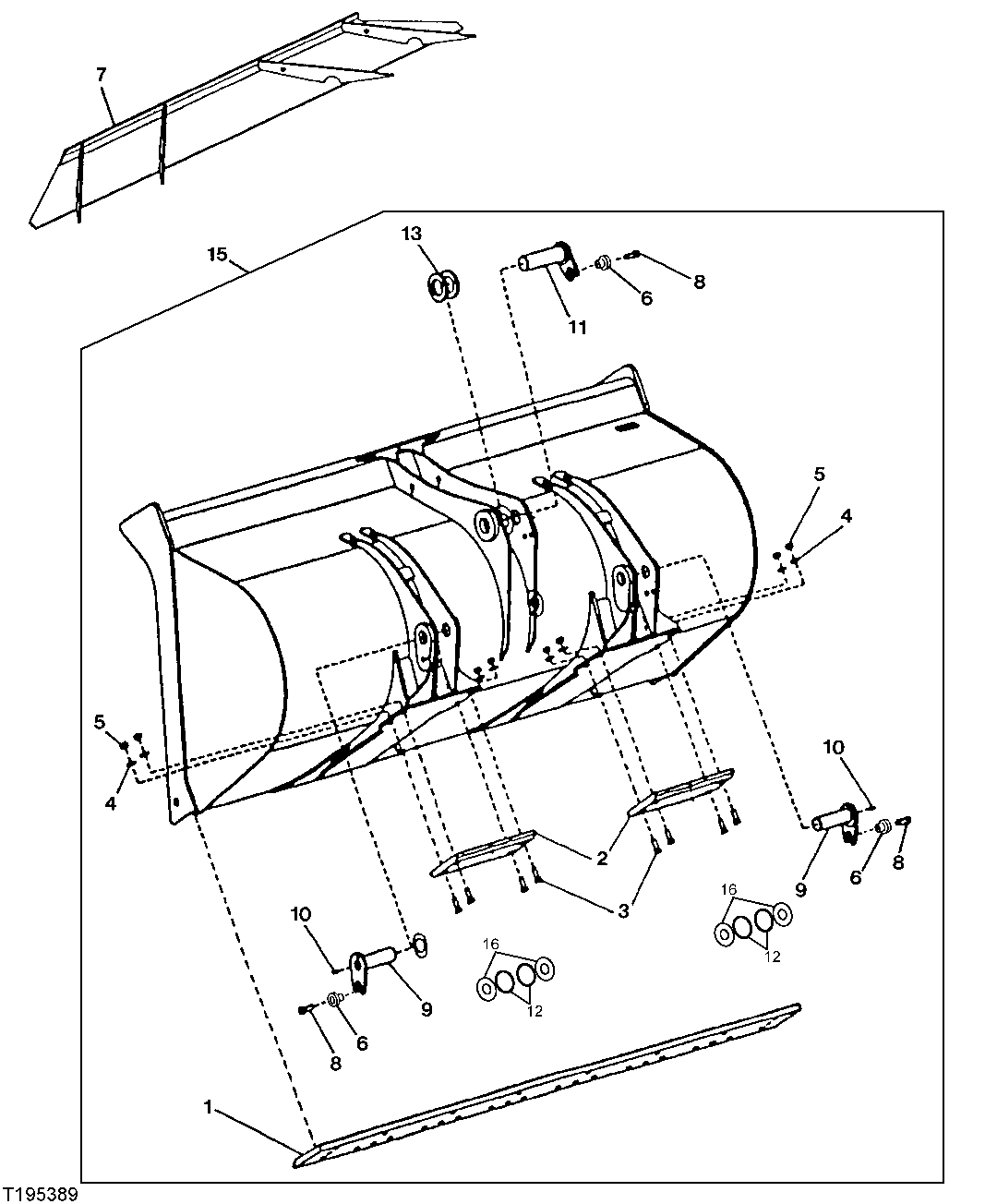

LOADER BUCKETS, BUCKET PINS AND CUTTING EDGE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T171165	1	Dura-Max Cutting Edge	(3.4 CUBIC METERS)
1	T169129	1	Cutting Edge	JAGZ™ (3.3 CUBIC METERS)
1	T167802	1	Dura-Max Cutting Edge	(2.7 CUBIC METERS AND 3.3 CUBIC METERS)
2	T157457	2	Wear Plate	-
3	09H1587	8	Bolt	5/8" X 2"
4	24M7241	8	Washer	17 X 34 X 4 mm
5	14H1039	8	Nut	5/8"
6	T176064	3	Bushing	-
7	AT203247	1	Plate	WHOLE GOODS
8	19M7489	3	Cap Screw	M16 X 45
9	AT208975	2	Pin	-
10	JD7759	2	Lubrication Fitting	-
11	AT219746	1	Pin	-
12	AT228894	4	Ring	(INCLUDES O-RING, CAP SCREWS, LOCK NUTS AND WASHERS), INCLUDES (8) 24M7027, (4) 19M9304 AND (4) 14M7572
12	24M7027	8	Washer	5.300 X 10 X 1 mm
12	19M9304	4	Cap Screw	M5 X 90
12	14M7572	4	Lock Nut	M5
13	T101480	4	Washer	-
15	AT209683	1	Loader Bucket	(2.7 CUBIC METERS) (3.5 CUBIC YARDS), WHOLE GOODS, NLA
15	AT219714	1	Loader Bucket	(3.3 CUBIC METERS) (4.3 CUBIC YARDS) , WHOLE GOODS, NLA
15	AT219716	1	Loader Bucket	(3.4 CUBIC METERS) (4.5 CUBIC YARDS), WHOLE GOODS, NLA
15	AT219720	1	Loader Bucket	JAGZ™ (3.3 CUBIC METER) (4.3 CUBIC YARDS), WHOLE GOODS, NLA
16	T198216	4	Washer	65.500 X 150 X 2.500 mm (2.579" X 5-29/32" X 0.098")

LOADER BUCKETS, BUCKET PINS AND CUTTING EDGE
