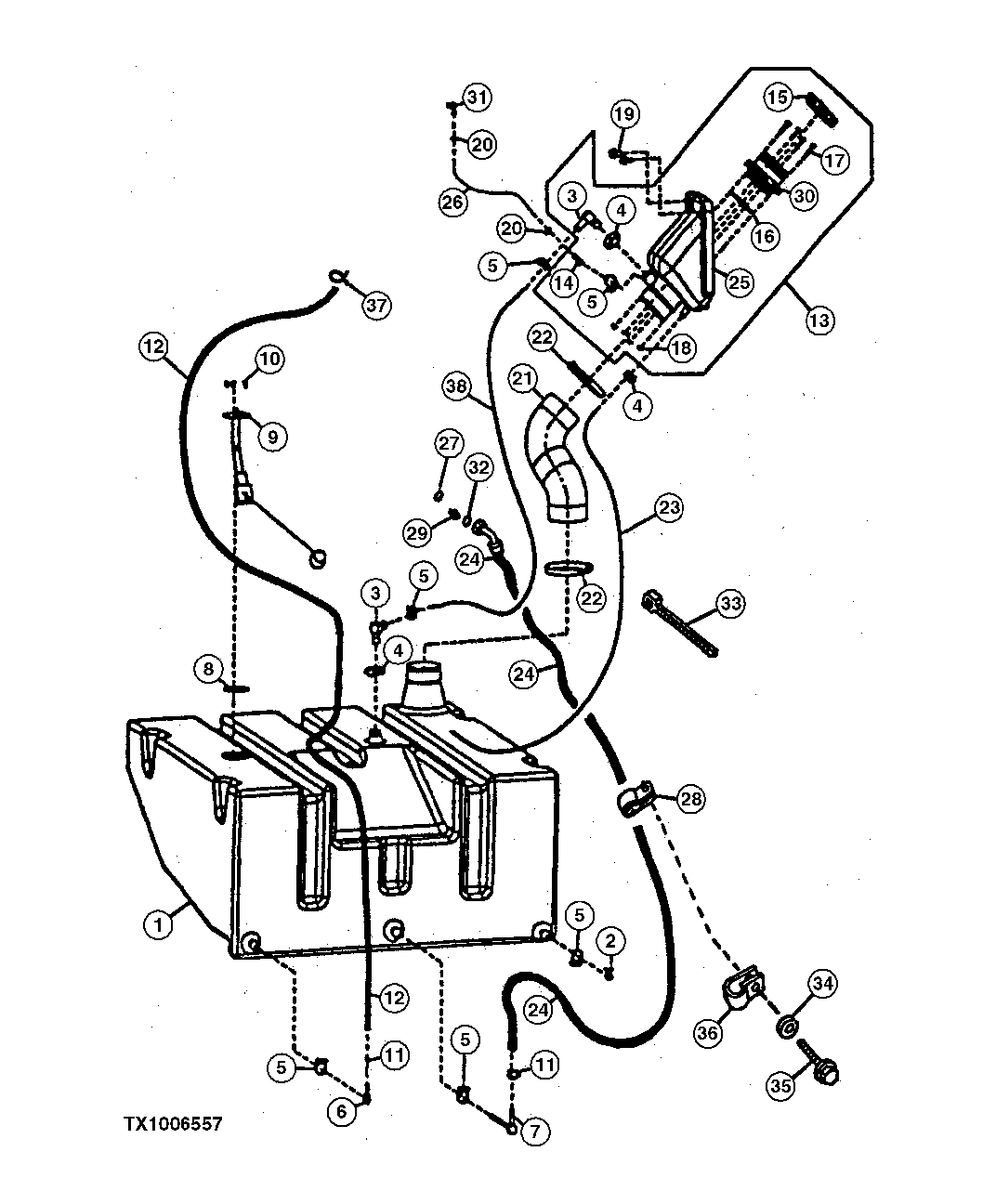

Fuel Tank and Fuel Tank Hoses (572797 - 585739)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T171069	1	Fuel Tank	-
2	AT156632	1	Drain Valve	-
3	T167934	2	Elbow Fitting	-
4	AR21839	3	Clamp	-
5	AR21837	6	Clamp	-
6	R130943	1	Elbow Fitting	(SUB FOR T28077)
7	T168996	1	Fuel Line	-
8	T155195	1	Gasket	-
9	AT226224	1	Fuel Sender	(USE WITH ENGINE FRAME WIRING HARNESS SN 572273-), (SUB FOR AT221124)
10	21H1301	5	SCREW	0.190" X 1/2"
11	TY22464	2	Clamp	(SUB FOR AR21836)
12	-	1	Part 12	(MAKE FROM <service-part qty="1">T79477</service-part>)(CUT TO LENGTH)
13	AT221930	1	Housing	-
14	E48497	1	Hose Fitting	-
15	AMT1274	1	Filler Cap	-
16	U42702	1	O-Ring	-
17	03M7342	4	Bolt	M6 X 30
18	14M7303	4	Flange Nut	M6
19	19M7784	2	Screw	M10 X 20
20	PT9412	2	Hose Clamp	-
21	T170434	1	Hose	-
22	AR21842	2	Clamp	-
23	T177631	1	Hose	-
24	AT211188	1	Hydraulic Hose	-
25	-	1	Part 25	(SUB AT208158)
26	-	1	Part 26	(MAKE FROM <service-part qty="1">T79478</service-part>)(CUT TO LENGTH)
27	R26286	1	O-Ring	-
28	R46414	1	Clamp	(SUB FOR T74416, THIS APPLICATION)
29	38H1170	1	Adapter Fitting	-
30	-	1	Part 30	(SUB <service-part qty="1">AT208158</service-part>)FUEL FILL
31	R61356	1	Elbow Fitting	(SUB FOR R156318)
31	14M7152	1	Nut	M10, (USE WITH <service-part qty="1">R156318</service-part>)(NOT ILLUSTRATED)
32	T77613	1	O-Ring	-
33	R44302	2	Tie Band	-
34	-	1	Part 35	( 24M7239 NO LONGER REQUIRED)
35	19M7784	1	Screw	M10 X 20
36	H75541	1	Clamp	-
37	T13254	1	Clamp	-
38	-	1	Part 39	(MAKE FROM <service-part qty="1">T60811</service-part>)(CUT TO LENGTH)
