Открытый узел

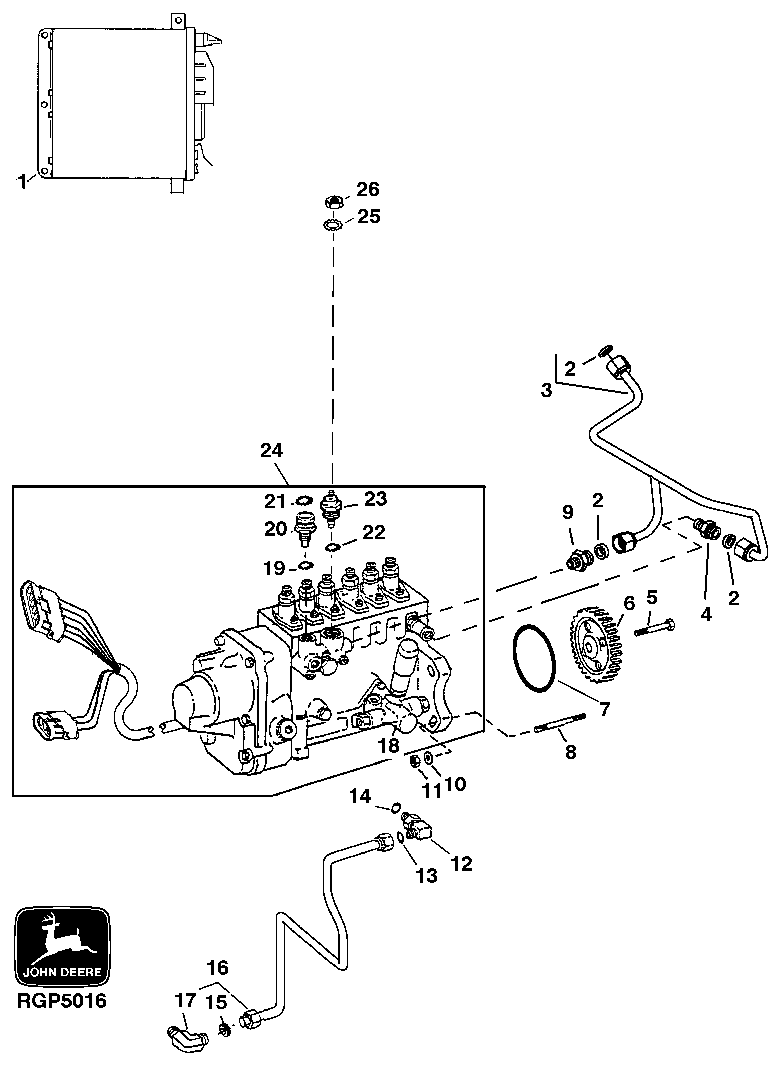

FUEL INJECTION PUMP, LINES AND ENGINE CONTROLLER (EARLY VERSION) (ESN -132907)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE506199	1	Engine Controller	(MARKEDRE502406 ) (USE WITH RE503347 ) (SUB FOR RE503309 OR RE503403)
1	RE502067	1	Engine Controller	(MARKED RE66617 ) (SUB FORRE506199 ) (USE WITH RE62645 OR RE502698)
2	R51936	3	Sealing Washer	-
3	RE66000	1	Fuel Line	-
3	RE501262	1	Fuel Line	(SUB FORRE504635)
3	RE504635	1	Fuel Line	(SUB FOR RE501262)
4	RE502650	1	Fitting	(SUB FOR R63604)
5	R121195	4	Cap Screw	(SUB FOR R112975)
6	R121164	1	Gear	-
7	R76358	1	O-Ring	-
8	R114130	4	Stud	-
9	RE67934	1	Adapter Fitting	-
10	24M7239	4	Washer	10.700 X 21 X 2.500 mm, (SUB FOR M72490)
11	14H1090	4	Nut	3/8"
12	AR88903	1	Elbow Fitting	-
13	R67264	1	Packing	-
14	R79060	1	O-Ring	-
15	R67264	1	Packing	-
16	RE509065	1	Oil Line	(SUB FOR RE60577)
17	T18012	1	Elbow Fitting	-
18	RE46252	1	Fuel Pump	-
19	R53899	1	Washer	-
20	RE28217	1	Fuel Temperature Sensor	(SUB FORRE506424, 57M7278, 51M4238 AND (2) 57M7829)
20	RE506424	1	Fuel Temperature Sensor	-
21	R98500	1	O-Ring	-
22	R99047	1	O-Ring	-
23	R89014	1	Solenoid	-
24	SE501247	1	Fuel Injection Pump Reman	(FOR ADDITIONAL OPTIONS SEE DTAC SOLUTION 81221) (ORDER RE502698) (REMAN FOR RE502698) (MARKED 0402196716)
24	SE501246	1	Fuel Injection Pump Reman	(MARKED 0402196707)(REMAN FOR RE62645)
24	RE62645	1	Fuel Injection Pump	(ALSO ORDER SE501246)
24	SE501252	1	Fuel Injection Pump Reman	(FOR ADDITIONAL OPTIONS SEE DTAC SOLUTION 81221) (ORDER RE507687) (REMAN FOR RE503347 AND RE507687) (MARKED 402196720)
24	RE507687	1	Fuel Injection Pump	-
24	RE503347	1	Fuel Pump	(ALSO ORDER RE507687)
24	RE502698	1	Fuel Injection Pump	-
25	12H296	1	Washer	0.216"
26	14M7297	1	Nut	M5
..	RE506251	1	Tee Fitting	-

FUEL INJECTION PUMP, LINES AND ENGINE CONTROLLER (EARLY VERSION) (ESN -132907)

Нет текстового описания
