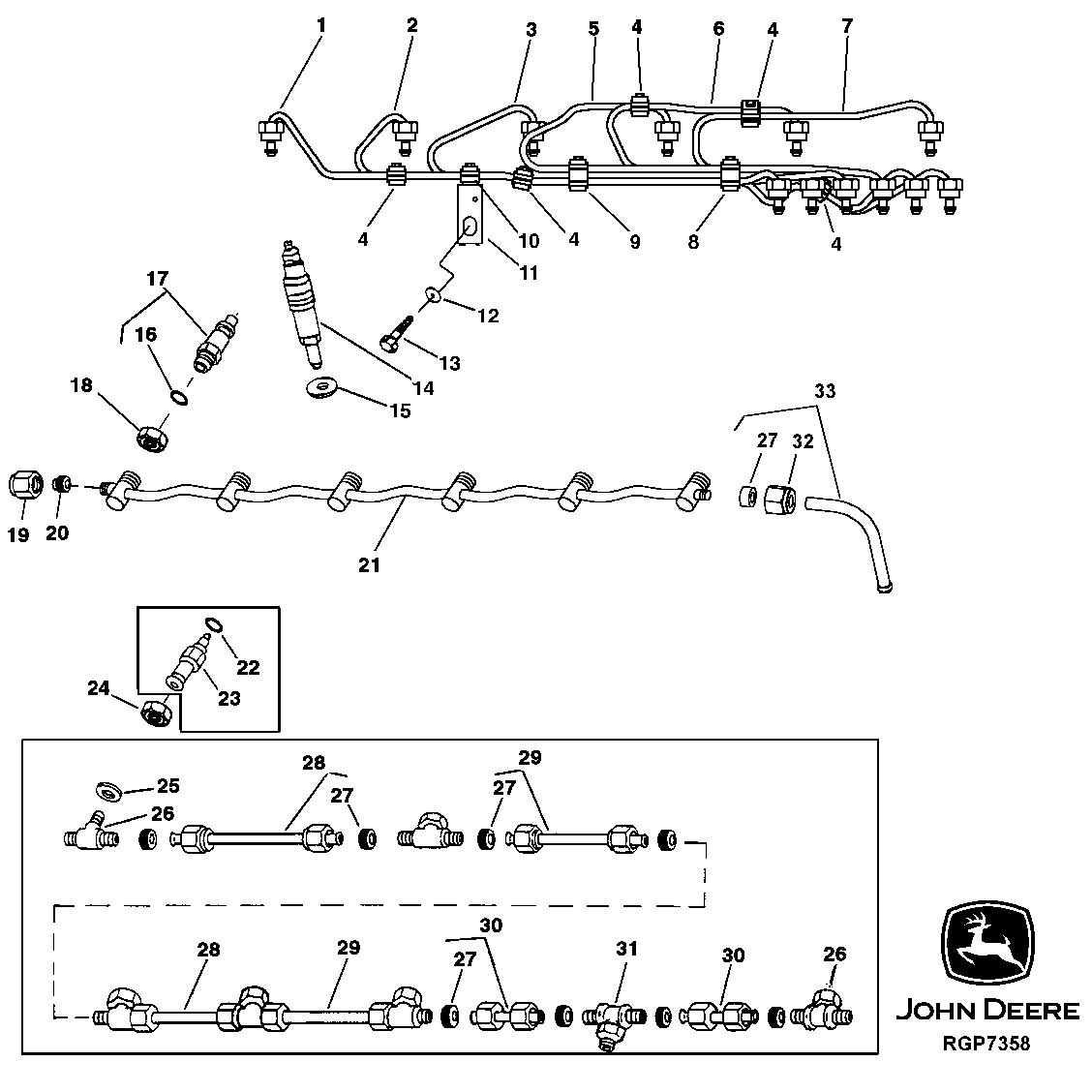

FUEL INJECTION NOZZLES AND LINES (ESN -199999)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE47431	1	Fuel Line	NO. 6
2	RE47430	1	Fuel Line	NO. 5
3	RE47429	1	Fuel Line	NO. 4
4	R120185	4	Bolt	-
4	R58186	8	Clamp	-
4	R120181	4	Strap	-
4	R120182	4	Strap	-
5	RE47428	1	Fuel Line	NO. 3
6	RE47427	1	Fuel Line	NO. 2
6	RE502930	1	Fuel Line	NO. 2
7	RE47426	1	Fuel Line	NO. 1
7	RE502929	1	Fuel Line	NO. 1
8	R120183	1	Strap	-
8	R59297	2	Half Clamp	-
8	R120184	1	Strap	-
8	R71212	1	Clamp	-
8	R120186	2	Bolt	-
9	R71212	1	Clamp	-
9	R59297	2	Half Clamp	-
9	R120184	1	Strap	-
9	R120183	1	Strap	-
9	R120186	1	Bolt	-
10	R120185	2	Bolt	-
10	R59297	2	Half Clamp	-
10	R120183	1	Strap	-
11	RE55662	1	Absorber	-
12	24H1884	1	Washer	13/32" X 13/16" X 0.120", 13/32" X 13/16" X 0.120"
13	19M7166	1	Cap Screw	M10 X 20
14	RE57152	6	Injection Nozzle	(ROBERT BOSCH)
14	SE500182	1	Injection Nozzle Reman	PKG OF 6, NLA; REMAN FOR (6) RE57152
14	SE501123	1	Injection Nozzle Reman	PKG OF 1, REMAN FOR (6) RE57152
15	R84472	6	Washer	7.360 X 18.160 X 2 mm (0.290" X 0.715" X 0.079")
16	R504057	6	O-Ring	(SUB FOR T44604, THIS APPLICATION)
17	RE501970	6	Fitting	-
18	R79604	6	Tube Nut	-
19	R51937	1	Tube Nut	-
20	AR85519	1	Plug	-
21	RE500803	1	Fuel Line	-
22	R77551	6	O-Ring	-
23	R87082	6	Fitting	-
24	R79604	6	Tube Nut	-
25	R79605	6	Washer	-
26	R79606	6	Tee Fitting	-
27	R51936	11	Sealing Washer	-
28	RE15807	2	Fuel Line	(INCLUDES (2) R51936 AND (2) R51937)
29	RE15808	2	Fuel Line	(INCLUDES (2) R51936 AND (2) R51937)
30	RE36421	2	Fuel Line	-
31	R97061	1	Tee Fitting	-
32	R123593	1	Tube Nut	-
33	AR104650	1	Fuel Line	-

FUEL INJECTION NOZZLES AND LINES (ESN -199999)
