Открытый узел

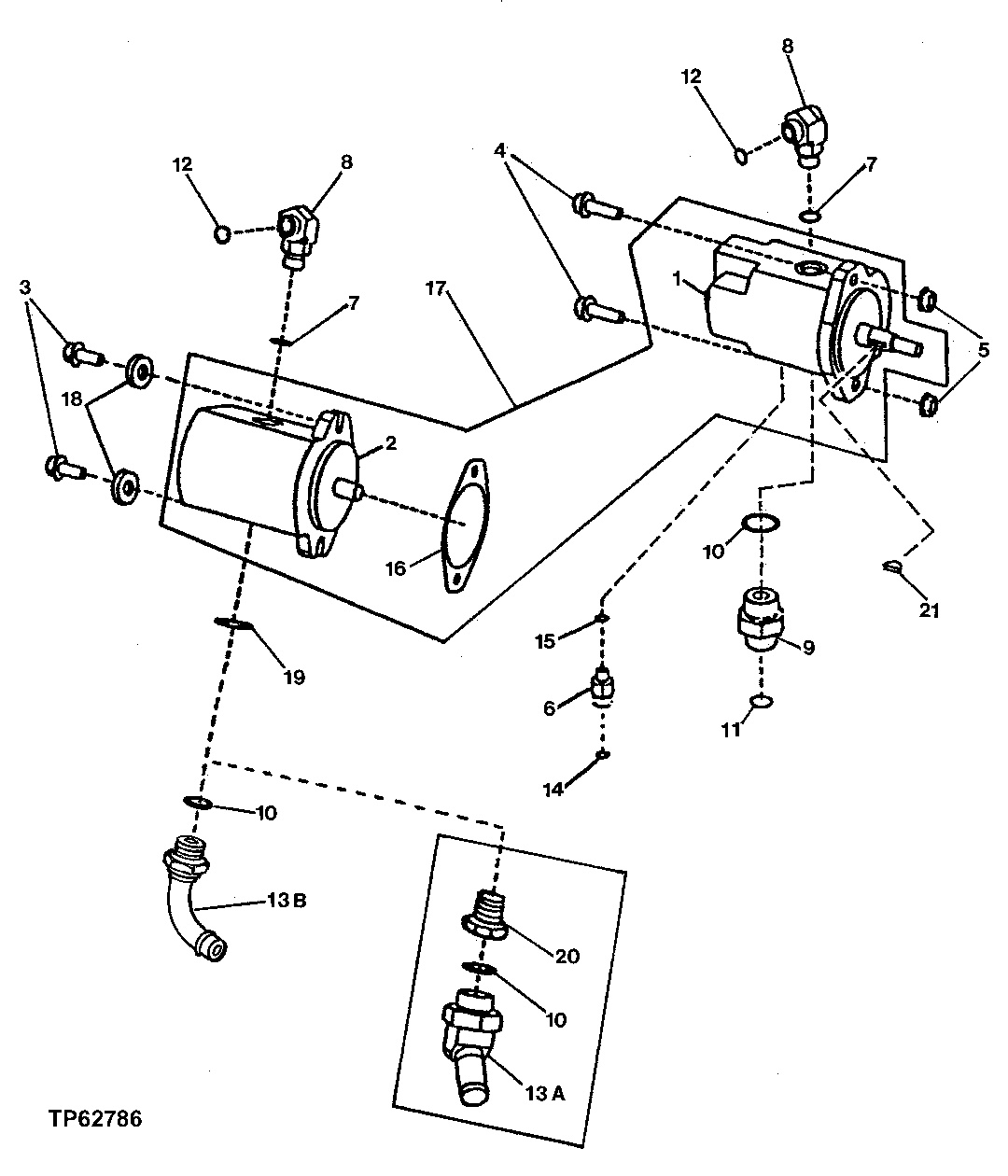

Fan Drive Hydraulic Pump and Motor ( - 585739)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT219776	1	Motor	(SUB FOR <service-part qty="1">AT211032</service-part>)(HIGH AMBIENT)
1	AT219775	1	Motor	(SUB FOR <service-part qty="1">AT211030</service-part>)(STD)
1	AT211379	1	Seal Kit	(RELIEF VALVE) (STANDARD AND HIGH AMBIENT) (NOT ILLUSTRATED)
1	AT211382	1	Relief Valve	(HIGH AMBIENT) (NOT ILLUSTRATED)
1	AT211380	1	Relief Valve	(STD) (NOT ILLUSTRATED)
1	AT220513	1	Seal Kit	(MOTOR) (HIGH AMBIENT) (NOT ILLUSTRATED)
1	AT211381	1	Seal Kit	(MOTOR) (STD) (NOT ILLUSTRATED)
2	AT224379	1	Pump	(SUB FOR <service-part qty="1">AT211029</service-part>)(STD)
2	AT211031	1	Pump	(HIGH AMBIENT)
2	AT224424	1	Seal Kit	(USE WITH <service-part qty="1">AT224379</service-part>)(PUMP) (STD) (NOT ILLUSTRATED)
2	AT211378	1	Seal Kit	(USE WITH <service-part qty="1">AT211029</service-part>)(PUMP) (STD) (NOT ILLUSTRATED)
2	AT220512	1	Seal Kit	(PUMP) (HIGH AMBIENT) (NOT ILLUSTRATED)
3	19M3239	2	Cap Screw	-
4	19M7835	2	Screw	M10 X 35
4	19M7790	2	Screw	M12 X 35, (HIGH AMBIENT)
5	14M7299	2	Flange Nut	M12, (HIGH AMBIENT)
5	14M7296	2	Flange Nut	M10
6	38H1309	1	Adapter Fitting	-
7	R26375	2	O-Ring	-
7	R26906	2	O-Ring	(HIGH AMBIENT)
8	38H1005	2	Elbow Fitting	(STD)
8	38H1012	2	Elbow Fitting	(HIGH AMBIENT)
9	38H1194	1	Adapter Fitting	-
10	R29936	2	O-Ring	-
11	T77858	1	O-Ring	-
12	T77857	2	O-Ring	-
14	T77613	1	O-Ring	-
15	R28782	1	O-Ring	-
16	R96935	1	Gasket	High Ambient Pump and Motor
17	AT219856	1	Kit	FAN DRIVE PUMP AND MOTOR
18	24M7239	2	Washer	10.700 X 21 X 2.500 mm
19	T78612	1	O-Ring	-
20	T179513	1	Fitting	(SUB FOR N205035)
21	26H77	1	Shaft Key	3/16" X 3/4"
13A	AT209592	1	Elbow Fitting	-
13B	AH96708	1	Elbow Fitting	-

Fan Drive Hydraulic Pump and Motor ( - 585739)

Нет текстового описания
