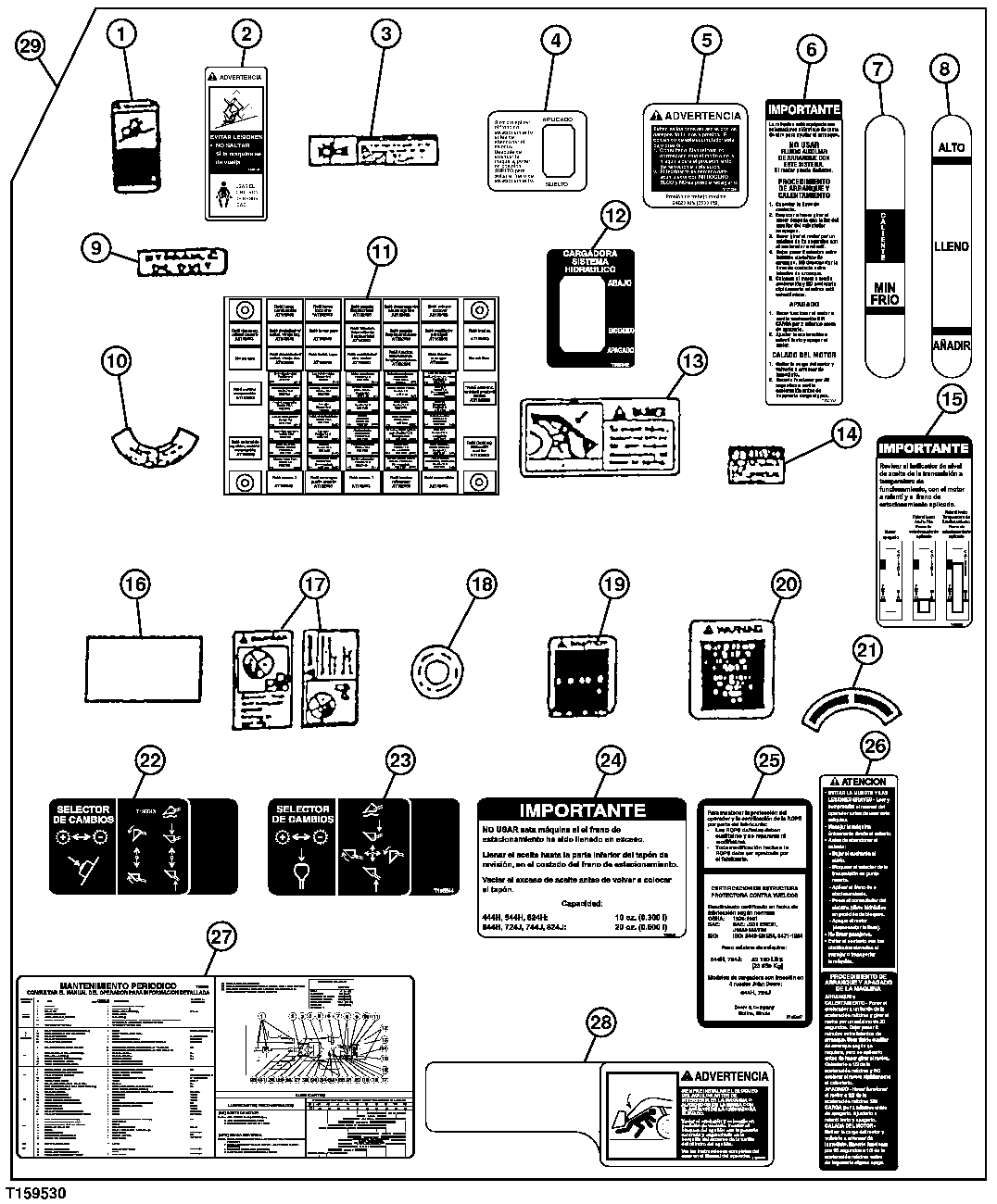

Decals and Labels (Spanish) (585740 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T160769	1	Safety Sign	WARNING (PARK BRAKE)
2	T146098	1	Label	WARNING (SEAT BELT)
3	T146504	2	Safety Sign	WARNING (CRUSHING ARTICULATION)
4	T171751	1	Label	Park Brake Switch
5	T174299	2	Label	WARNING (BRAKE ACCUMULATOR)
6	T208086	1	Safety Sign	CAUTION (ENGINE START/STOP), (SUB FOR T174430 OR T196475)
7	T200066	1	Label	Transmission Sight Gauge
8	T197324	1	Label	Hydraulic Reservoir Sight Gauge
9	T102620	1	Label	Hydraulic Oil Only
10	T64217	1	Label	Oil Filter Element
11	T177783	1	Label	Fuse Block
12	T195542	1	Label	Pilot Enable
13	T146180	1	Safety Sign	DANGER (CRUSHING BOOM)
14	T146503	2	Safety Sign	CAUTION (BATTERIES)
15	T200057	1	Label	Transmission Oil Check
16	T146606	1	Label	AIR CLEANER
17	T146106	1	Safety Sign	DANGER (BYPASS START)
18	T171757	1	Label	CAUTION (PRESSURIZED) (RADIATOR CAP)
19	T146502	1	Safety Sign	CAUTION (SECONDARY STEERING)
20	T146911	2	Label	WARNING (ACCUMULATOR)
21	T63225	1	Label	Battery Disconnect
22	T195543	1	Label	STACKABLE CONTROLS (2 LEVER)
23	T195544	1	Label	JOYSTICK CONTROL (1 LEVER)
24	T207751	1	Label	(SUB FOR <service-part qty="1">T195760</service-part>)IMPORTANT (PARK BRAKE OVERFILL)
25	T200815	1	Label	(SUB FOR <service-part qty="1">T195867</service-part>)ROPS/FOPS CERTIFICATION
26	T195559	1	Label	CAUTION (ENGINE START/STOP)
27	T225021	1	Label	(SUB FOR <service-part qty="1">T200026</service-part>)PERIODIC MAINTENANCE
28	T195858	1	Label	WARNING (BOOM LOCK)
29	-	1	Part 29	( AT226643 NLA)

Decals and Labels (Spanish) (585740 - )
