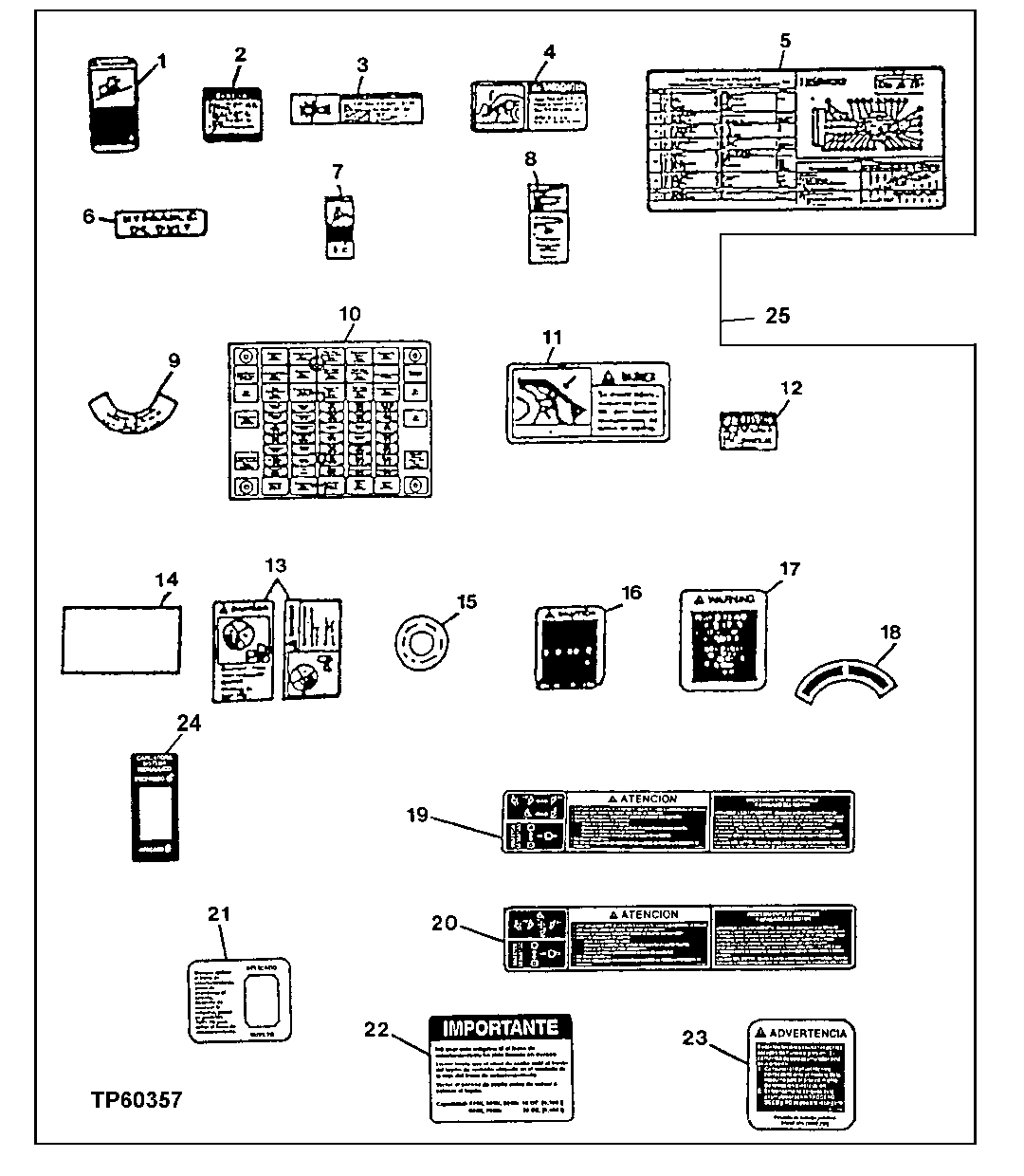

Decals and Labels (Spanish) ( - 585739)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T160769	1	Safety Sign	WARNING (PARK BRAKE)
2	T146507	2	Safety Sign	WARNING (ACCUMULATOR)
3	T146504	2	Safety Sign	WARNING (CRUSHING ARTICULATION)
4	T173172	1	Label	WARNING (BOOM LOCK)
5	T176349	1	Label	PERIODIC MAINTENANCE, (SUB FOR T175911)
6	T102620	1	Label	Hydraulic Oil Only
7	T146098	1	Label	WARNING (SEAT BELT)
8	T171743	1	Label	ROPS
9	T64217	1	Label	OIL FILTER ELEMENT
10	T177783	1	Label	FUSE BLOCK
11	T146180	1	Safety Sign	DANGER (CRUSHING BOOM)
12	T146503	1	Safety Sign	CAUTION (BATTERIES)
13	T146106	1	Safety Sign	DANGER (BYPASS START)
14	T146606	1	Label	AIR CLEANER
15	T171757	1	Label	CAUTION (PRESSURIZED) (RADIATOR CAP)
16	T146502	1	Safety Sign	CAUTION (SECONDARY STEERING)
17	T146911	1	Label	WARNING (ACCUMULATOR)
18	T63225	1	Label	BATTERY DISCONNECT
19	T176276	1	Label	CAUTION (START/STOP) (2 LEVER), (SUB FOR T171749)
20	T176277	1	Label	CAUTION (START/STOP) (JOYSTICK), (SUB FOR T171759)
21	T171751	1	Label	Park Brake Switch
22	T173078	1	Label	Park Brake Overfill
23	T174299	2	Label	WARNING (BRAKE ACCUMULATOR)
24	-	1	Part 24	PILOT ENABLE ( <service-part>T173586</service-part> NLA)
25	-	1	Part 25	( AT210709 NLA), (IMPORTANT: ALSO ORDER TRANSLATED OPERATOR'S MANUAL THROUGH YOUR AUTHORIZED DEALER)

Decals and Labels (Spanish) ( - 585739)
