Открытый узел

Cooling System (585740 - )

Cooling System (585740 - )

Cooling System (585740 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

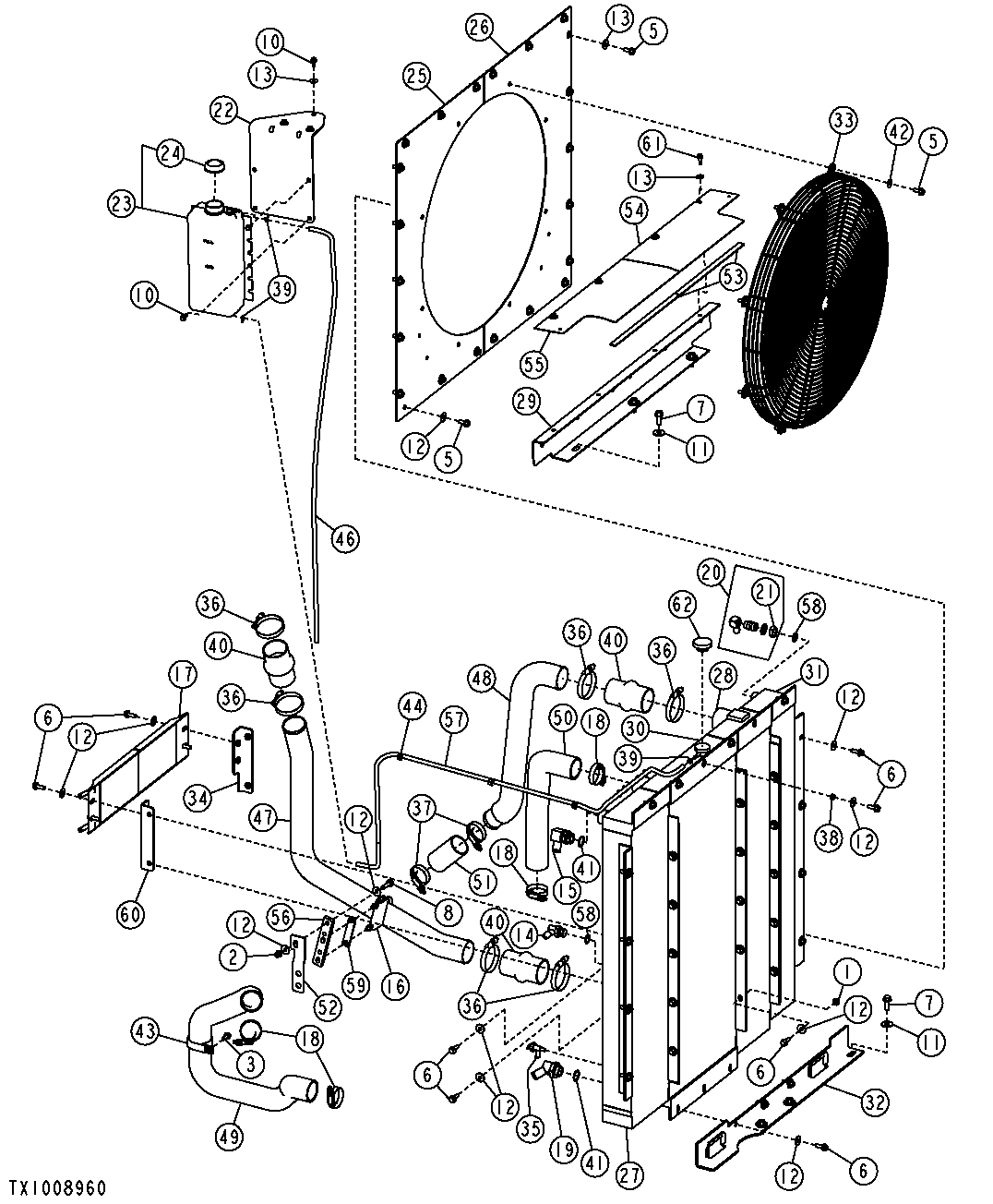

Cooling System (585740 - )

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	26	Flange Nut	M10
2	14M7400	1	Lock Nut	M10
3	19H3771	1	Screw	3/8" X 1"
5	19M7785	30	Screw	M10 X 25
6	19M7786	50	Screw	M10 X 30
7	19M7790	6	Screw	M12 X 35
8	19M7804	1	Screw	M10 X 40
10	19M7866	7	Screw	M8 X 20
11	24M7180	6	Washer	13 X 37 X 3 mm
12	24M7296	100	Washer	10.500 X 30 X 2.500 mm
13	24M7298	7	Washer	8.400 X 25 X 2 mm
14	AH75159	1	Fitting	-
15	AH75162	1	Fitting	-
16	AN276328	1	Clamp	-
17	AP35374	1	Heat Sink	(FUEL COOLER)
18	AR21999	4	Hose Clamp	-
19	AT209592	1	Elbow Fitting	-
20	AT21574	1	Fitting	-
21	R27390	1	Nut	-
22	AT222815	1	Bracket	-
23	AT223091	1	Reservoir	-
24	AT106413	1	Cap	-
25	AT224476	1	Shroud	(LH)
26	AT224477	1	Shroud	(RH)
27	AT224844	1	Oil Cooler	(TRANSMISSION)
27	AT300792	1	Oil Cooler	(HARSH ENVIRONMENT COATING)
28	AT224845	1	Air Cooler	-
28	AT224845	1	Air Cooler	(HARSH ENVIRONMENT COATING)
29	AT224861	1	Support	-
30	AT225102	1	Radiator	-
30	AT300773	1	Radiator	(HARSH ENVIRONMENT COATING)
31	AT225149	1	Oil Cooler	(HYDRAULIC), NLA
31	AT300794	1	Oil Cooler	(HARSH ENVIRONMENT COATING)
32	AT225423	1	Support	-
33	AT225980	1	Guard	-
34	AT226647	1	Bracket	(LH)
35	AT35831	1	Drain Valve	-
36	AT37478	6	Hose Clamp	-
37	AT37693	2	Clamp	-
38	H2788B	3	WASHER	-
39	PT9412	3	Hose Clamp	-
40	R164193	3	Hose	-
41	R29936	2	O-Ring	-
42	T105740	8	Washer	-
43	T162575	1	Clamp	-
44	T173168	6	Hold-Down Clip	-
46	-	1	Part 47	(MAKE FROM <service-part qty="1">TY22324</service-part>)(CUT TO LENGTH)
47	T181771	1	Tube	-
48	T181774	1	Tube	-
49	T181775	1	Radiator Hose	-
50	T181776	1	Radiator Hose	-
51	T181778	1	Hose	-
52	T181949	1	Bracket	-
53	-	1	Part 54	(MAKE FROM <service-part qty="1">T66419</service-part>)(CUT TO LENGTH)
54	T182452	1	Shield	(RH)
55	T182453	1	Shield	(LH)
56	T182578	1	Support	-
57	-	1	Part 58	(MAKE FROM <service-part qty="1">TY22324</service-part>)(CUT TO LENGTH)
58	U12547	2	O-Ring	-
59	T151859	1	Strap	-
60	AT227419	1	Bracket	(RH)
61	19M7867	4	Screw	M8 X 25
62	AT173610	1	Filler Cap	-
