CONTROL VALVE TO BOOM AND BUCKET CYLINDER AND THIRD FUNCTION HYDRAULICS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT307065	1	Oil Line	-
1	AT209285	1	Oil Line	-
2	AT224318	2	Bracket	-
2	T170524	2	Bar	-
3	T170365	2	Clamp	-
4	19M7805	2	Screw	M10 X 45
5	19M8528	4	Screw	M10 X 55
5	19M7835	4	Screw	M10 X 35
6	14M7296	4	Flange Nut	M10
7	AT220957	1	Oil Line	THREE-SPOOL, SUB FOR AT219993
8	AT220958	1	Oil Line	THREE-SPOOL, SUB FOR AT219994
9	T167979	1	Clamp	THREE-SPOOL
10	19M7783	1	Screw	M10 X 16, THREE-SPOOL
11	AT210216	1	Oil Line	-
12	AT210217	1	Oil Line	WITHOUT RIDE CONTROL
13	AT210218	1	Oil Line	WITHOUT RIDE CONTROL
14	AT210219	1	Oil Line	-
15	AT210400	2	Oil Line	-
16	TY22495	4	Hose Clamp	SUB FOR TY22494
17	T102005	2	Guide	-
18	T67995	4	Clamp	-
19	24M7296	4	Washer	10.500 X 30 X 2.500 mm
20	19M7810	4	Screw	M10 X 80
21	T76938	5	O-Ring	-
22	T77858	2	O-Ring	TWO-SPOOL
22	T77858	8	O-Ring	THREE-SPOOL
23	38H1003	1	Elbow Fitting	-
24	R28782	1	O-Ring	-
25	T77814	1	O-Ring	-
26	AT210075	2	Hydraulic Hose	NLA, ORDER AT307066
26	AT307066	2	Hydraulic Hose	-
27	AT208691	2	Hydraulic Hose	-
28	AT228194	4	Hydraulic Hose	Use Until Exhausted, SUB FOR AT169881 OR AT207923
28	AT306812	4	Hydraulic Hose	Replaces, AT228194
29	-	1	Part 35	TWO-SPOOL AT210077 NLA, (SUB AT359036, ALSO ORDER 38H1048 AND T76938
29	-	1	Part 36	THREE-SPOOL AT210078 NLA, SUB AT359037, ALSO ORDER 38H1098 AND T76938
30	AT203061	1	Hydraulic Hose	-
31	AH130230	1	Hose Clamp	THREE-SPOOL
32	38H1276	2	Adapter Fitting	THREE-SPOOL
32	T174275	2	Lock Washer	BETWEEN KEY 32 ADAPTER AND KEY 33 NUT
33	T78707	2	Nut	THREE-SPOOL
34	38H1418	2	Fitting	THREE-SPOOL
35	28H3383	2	Bushing	0.493" X 0.675" X 3/4"
36	T148712	4	Washer	-
37	AT359036	1	Hydraulic Hose	TWO-SPOOL
37	AT359037	1	Hydraulic Hose	THREE-SPOOL
38	38H1098	1	Elbow Fitting	-
39	T76938	1	O-Ring	-

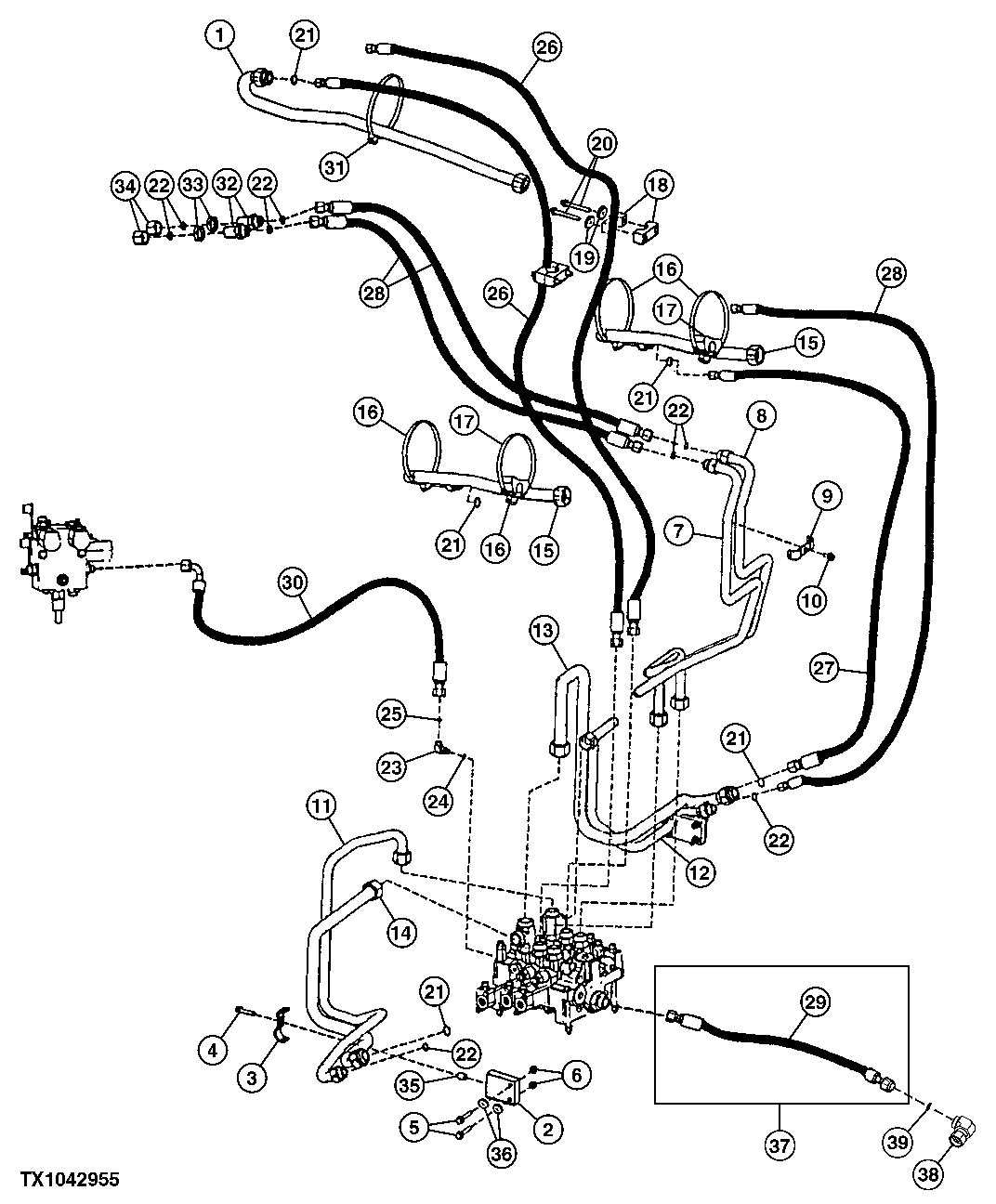

CONTROL VALVE TO BOOM AND BUCKET CYLINDER AND THIRD FUNCTION HYDRAULICS
