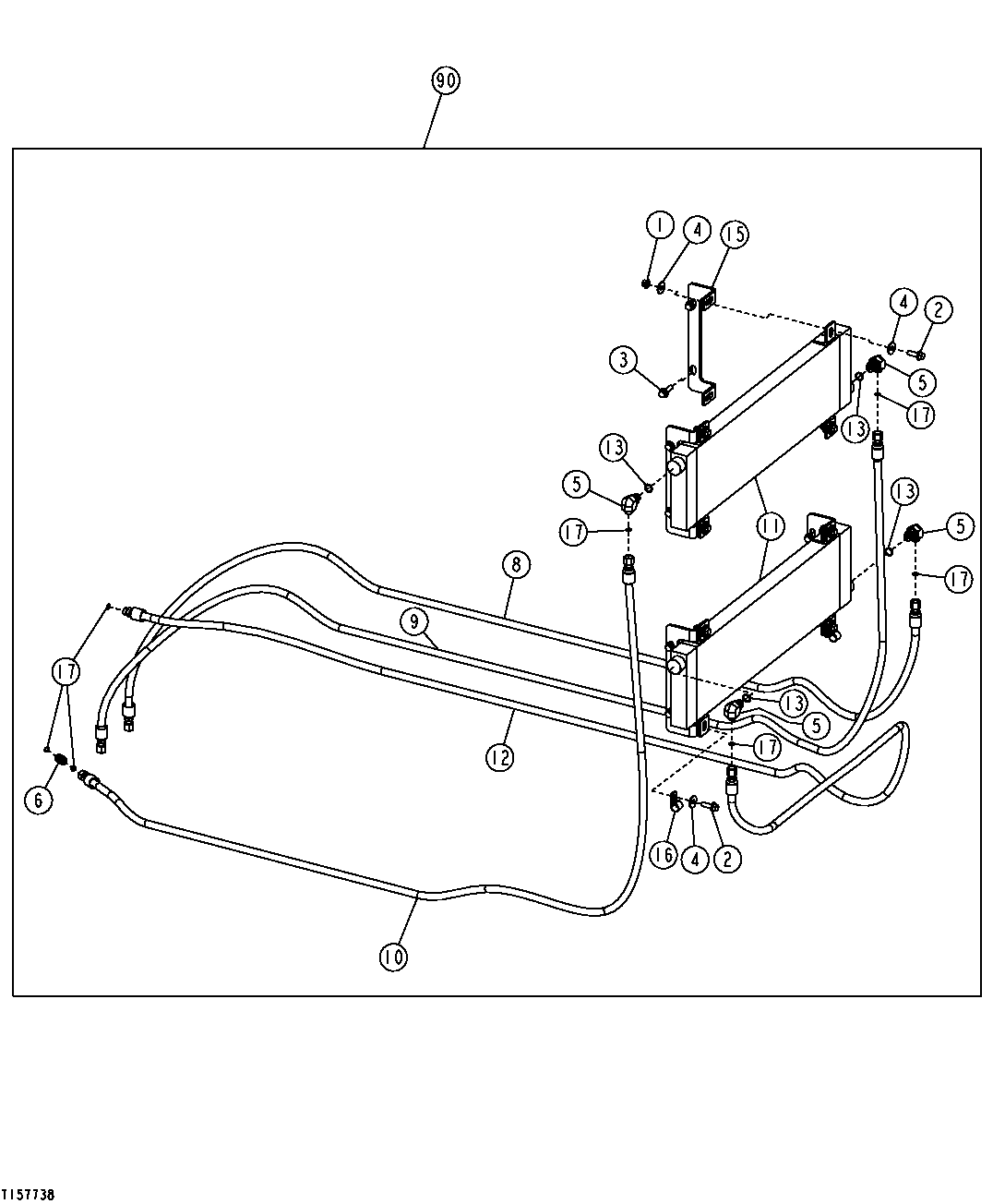

AXLE COOLER, HOSES AND FITTINGS (585740 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	9	Flange Nut	M10
2	19M7786	9	Screw	M10 X 30
3	19M7835	8	Screw	M10 X 35
4	24M7296	19	Washer	10.500 X 30 X 2.500 mm
5	38H1010	4	Elbow Fitting	-
6	38H1278	1	Union Fitting	(REQUIRED FOR FIELD INSTALLED COOLER ONLY)
7	38H1564	1	Elbow Fitting	-
8	AT334629	1	Hydraulic Hose	(SUB FOR AT227008)
9	AT334630	1	Hydraulic Hose	(SUB FOR AT227009)
10	AT227010	1	Hydraulic Hose	-
11	AT227487	2	Heat Exchanger	-
12	AT227981	1	Hydraulic Hose	(REQUIRED FOR FIELD INSTALLED COOLER ONLY)
12	AT227011	1	Hydraulic Hose	(REQUIRED FOR FACTORY INSTALLED COOLER ONLY)
13	R26375	4	O-Ring	-
14	R28782	1	O-Ring	-
15	T196284	4	Bracket	-
16	T74416	2	Clamp	-
17	T77613	8	O-Ring	(FIELD INSTALLED)
17	T77613	5	O-Ring	(FACTORY INSTALLED)
90	-	1	Part 20	Order Components Axle Cooler Contains All Parts Necessary For Assembling Axle Cooler Whole Goods, AT227552 NLA

AXLE COOLER, HOSES AND FITTINGS (585740 - )
