Two or Three Lever Remote Controller

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT147001	1	Knob	BOOM (WITH KICKDOWN SWITCH) (NOT ILLUSTRATED)
1	4117704	1	Knob	(SUB FOR TH100591)BUCKET, BOOM AND AUXILIARY SECTION
2	T137986	1	Cover	(AUXILIARY STAND ALONE) SINGLE
2	T145391	1	Cover	STACKABLE: BOOM, BUCKET AND AUXILIARY
3	T126189	1	Boot	-
4	H77698	1	Tie Band	-
5	T103100	2	Set Screw	-
6	T132295	1	Lever	BUCKET (TWO-LEVER)
6	T132295	2	Lever	BUCKET AND AUXILIARY (THREE LEVER)
6	T132294	1	Lever	BOOM (TWO AND THREE LEVER)
7	T137987	1	Link	-
7	T103098	1	Link	(USE WITH T141501)
8	T137989	1	Solid Shim	BOOM PORT A AND BUCKET PORT A
9	25H50	1	Groove Pin	5/32" X 3/4"
10	T138047	5	Spring	MAIN, AUXILIARY (SINGLE AND THREE LEVER) (A PORT OF BOOM SECTION) (A AND B PORT OF AUXILIARY SECTION) (A PORT OF BUCKET SECTION)
10	T131603	2	Spring	MAIN (AUXILIARY STAND ALONE) (A AND B PORT)
11	T102955	2	Retainer	-
12	-	2	Part 18	-
13	T102958	2	Plunger	-
14	T131617	2	Ring	(KIT <service-part>AT104041</service-part> (ALSO ORDER <service-part >AT115876</service-part> TUBE OF GREASE))
15	-	2	Part 21	(KIT <service-part>AT104041</service-part> (ALSO ORDER <service-part >AT115876</service-part> TUBE OF GREASE)) ( T131619 NO LONGER AVAILABLE)
16	-	2	Part 22	(KIT <service-part>AT104041</service-part> (ALSO ORDER <service-part >AT115876</service-part> TUBE OF GREASE)) ( T131616 NO LONGER AVAILABLE)
17	T102961	2	Dowel Pin	-
18	M43940	2	Snap Ring	-
19	T145390	1	Housing	AUXILIARY
19	T131615	1	Housing	(AUXILIARY STAND ALONE) UPPER HOUSING
20	T103105	1	Pin Fastener	-
21	T131602	3	Spring	B PORT ON BUCKET AND BOOM, A AND B PORT ON AUXILIARY
22	T102952	2	Retainer	-
23	T122076	1	O-Ring	(KIT <service-part>AT104041</service-part> (ALSO ORDER <service-part >AT115876</service-part> TUBE OF GREASE)) (SUB FOR T100097)
24	F3353R	1	O-Ring	(KIT <service-part>AT104041</service-part> (ALSO ORDER <service-part >AT115876</service-part> TUBE OF GREASE))
25	-	1	Part 32	(SUB AT159952)BUCKET SECTION
25	-	1	Part 33	(SUB AT159953)BOOM SECTION
26	12M7006	4	Lock Washer	6 mm
27	19M7966	4	Screw	M6 X 25
28	T22827	2	O-Ring	(KIT <service-part>AT104041</service-part> (ALSO ORDER <service-part >AT115876</service-part> TUBE OF GREASE))
29	T103097	2	Cap	-
30	19H3640	6	Screw	0.138" X 3/4"
31	AT151089	1	Electrical Coil	BUCKET SECTION (12-VOLT)
31	-	1	Part 41	(NOT REQUIRED AUXILIARY SECTION)
31	AT151089	2	Electrical Coil	BOOM SECTION (12-VOLT)
32	T102974	1	Disk	BUCKET SECTION
32	T102974	2	Disk	BOOM SECTION
32	-	1	Part 44	(NOT REQUIRED AUXILIARY SECTION)
33	T102975	1	Spring	BUCKET SECTION
33	T102975	2	Spring	BOOM SECTION
33	-	1	Part 47	(NOT REQUIRED AUXILIARY SECTION)
34	T103107	1	Retainer	BUCKET SECTION
34	T103107	2	Retainer	BOOM SECTION
34	-	1	Part 50	(NOT REQUIRED AUXILIARY SECTION)
35	T103096	1	Pin	BUCKET SECTION
35	T103096	2	Pin	BOOM SECTION
35	-	1	Part 53	(NOT REQUIRED AUXILIARY SECTION)
36	-	1	Part 56	(NOT REQUIRED AUXILIARY SECTION)
36	T103095	2	Plunger	BOOM SECTION
36	-	1	Part 54	BUCKET SECTION
37	AT159954	1	Valve Stack	AUXILIARY (SINGLE AND 3 LEVER)
37	AT159952	1	Valve Stack	BUCKET (TWO AND THREE LEVER)
37	AT159953	1	Valve Stack	BOOM (TWO AND THREE LEVER)
38	T137988	1	Washer	-
39	14H774	2	Nut	3/8"
40	T141501	1	Lever	DOUBLE BENT (AUXILIARY STAND ALONE)
41	19H3177	4	Screw	0.164" X 0.620"
42	T145392	1	Plate	-
43	T103092	1	Shim	-
43	T103093	1	Shim	-
43	T103094	1	Shim	-
44	21H1293	1	SCREW	0.164" X 5/16"
45	-	1	Part 69	(U41534 NO LONGER AVAILABLE)
46	AT159954	1	Valve Stack	AUXILIARY (SINGLE AND 3 LEVER)
46	AT159952	1	Valve Stack	BUCKET (TWO AND THREE LEVER)
46	AT159953	1	Valve Stack	BOOM (TWO AND THREE LEVER)

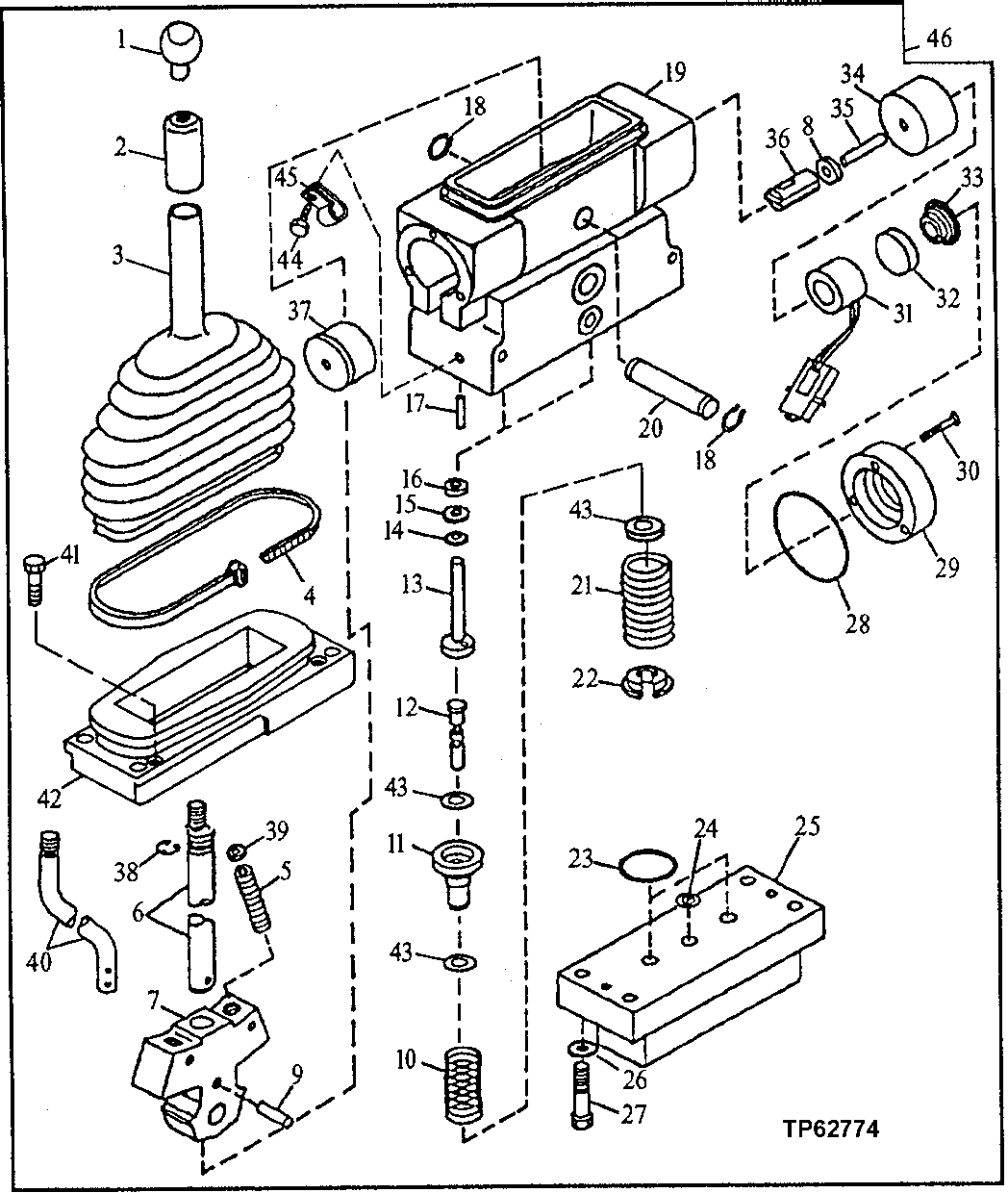

Two or Three Lever Remote Controller
