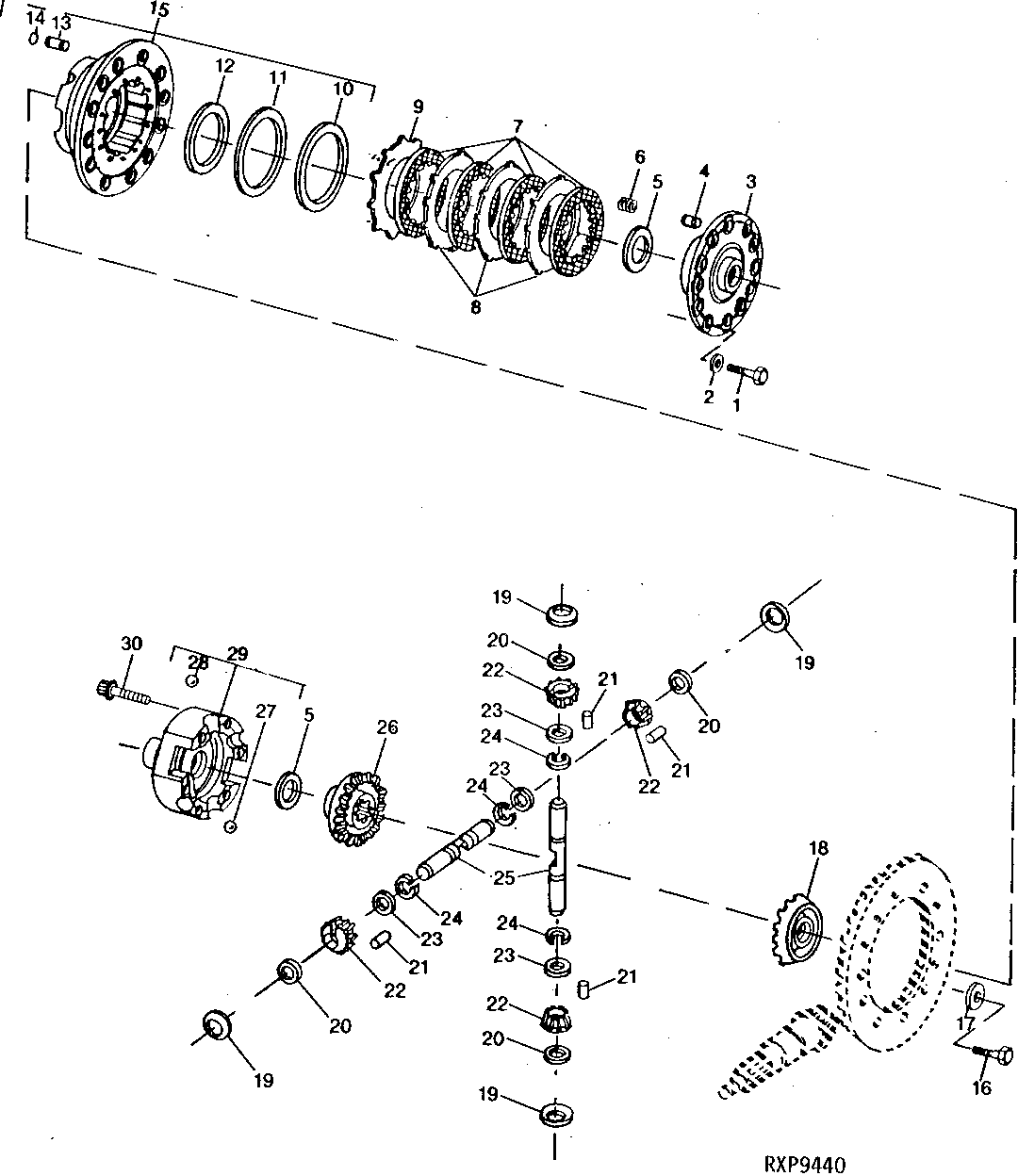

Standard Differential (Differential Lock) (Air Boost System) (Front and Rear)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R116214	12	Screw	(USE WITH YZ120646 AND R116210)
1	19H2964	12	Cap Screw	7/16" X 1-1/8", (USE WITH R89118 AND R84993)
2	T105740	12	Washer	-
3	R84993	1	Cover	-
3	R116210	1	Cover	-
4	34H327	3	Spring Pin	5/16" X 1"
5	R93623	2	Thrust Washer	(SUB FOR R77145)
6	R34203	3	Spring	-
7	RE53823	4	Disk	(SUB FOR (4) RE29428)
8	R34858	3	Clutch Plate	SEPARATOR
9	R34857	1	Clutch Plate	BACKING
10	R58775	1	Piston	-
11	R68615	1	O-Ring	-
12	R68616	1	Washer	-
13	R70532	1	BUSHING	(USE WITH R89118 AND R84993)
14	R60038	1	Packing	-
15	RE53704	1	Housing	(MARKED R116208)
15	RE32603	1	Housing	(MARKED R89118 ) (SUB RE53704, RE53244)
16	R85225	12	Cap Screw	-
17	R85226	12	Washer	-
18	R59290	1	Bevel Gear	-
19	R59460	4	Thrust Washer	-
20	R70112	4	Thrust Washer	-
21	R70115	104	Needle Roller	-
22	R68170	4	PINION	-
23	R70113	4	Thrust Washer	-
24	YZ120471	4	Ring	(SUB FOR R70114)
25	R70111	2	Pinion Shaft	-
26	R59289	1	Bevel Gear	-
27	400R	1	Ball	-
28	H871R	2	Ball	-
29	RE21029	1	Housing	(MARKED R82197 ) (SUB RE53244, RE53704, (12) 19H2563 AND (12) T105740)
29	RE53244	1	Housing	(MARKED R116209 ) (ALSO ORDER 34H348)
30	R116211	8	Screw	(SUB FOR R52718)
