Открытый узел

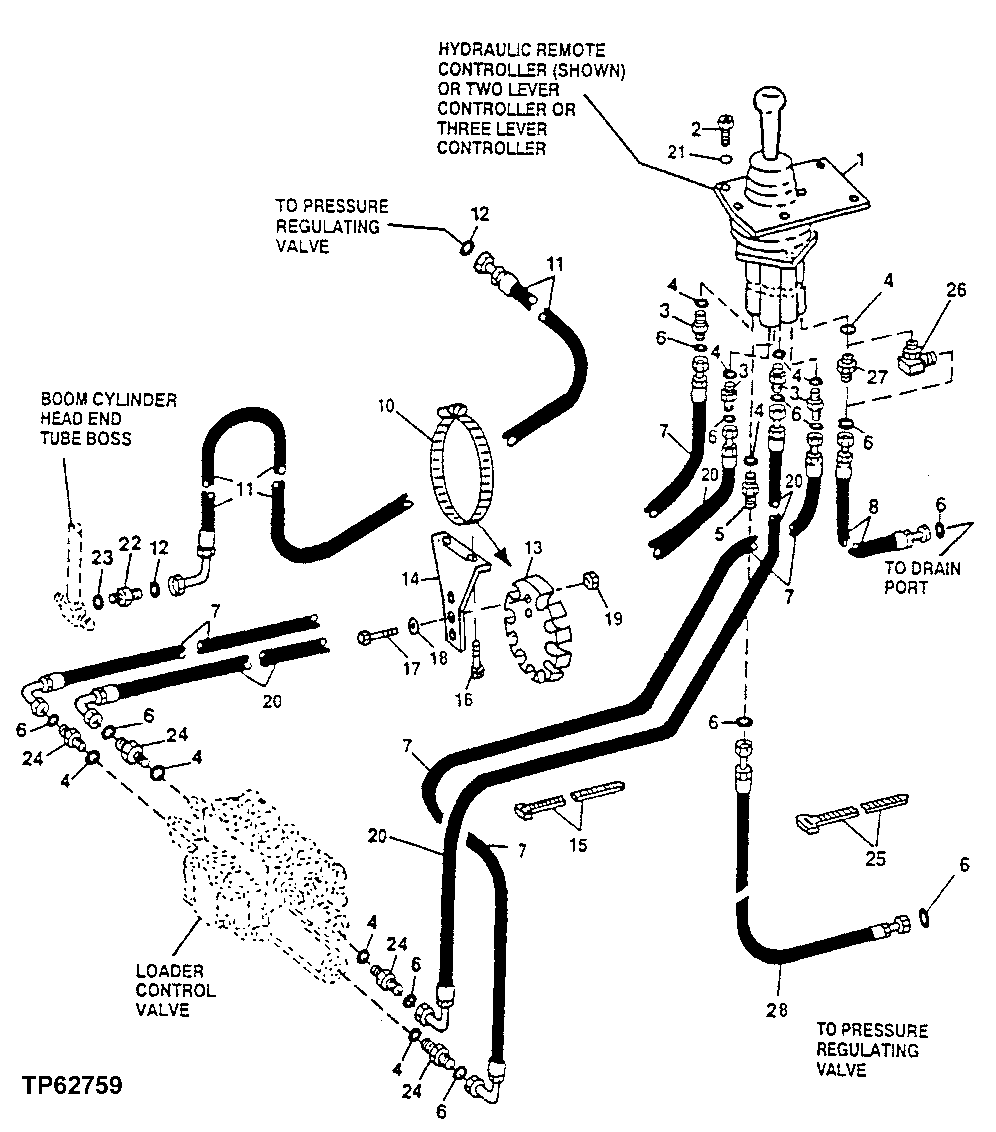

SINGLE LEVER, TWO-LEVER AND THREE-LEVER REMOTE HYDRAULICS (552447 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT181867	1	Plate	JOYSTICK (ROBUST CONTROLLER)
1	AT150683	1	Plate	JOYSTICK
1	AT168470	1	Plate	(USE WITH THREE-LEVER CONTROLLER)
1	AT150685	1	Plate	(SUB AT168470 ) (ALSO ORDER AT171268)(WRIST RESTS ASSEMBLY) (USE WITH THREE-LEVER CONTROLLER)
1	AT168456	1	Plate	(USE WITH TWO-LEVER CONTROLLER)
1	AT150684	1	Plate	(SUB AT168456 ) (ALSO ORDER AT171268)(WRIST REST COMPONENTS) ((USE WITH TWO-LEVER CONTROLLER)
2	21M7285	8	Screw	M6 X 12, PAN HD. (USE WITH SINGLE LEVER CONTROLLER)
2	21M7248	8	Screw	M6 X 30, (USE WITH TWO-LEVER CONTROLLER)
2	21M7267	16	Screw	M6 X 20, (USE WITH THREE-LEVER CONTROLLER)
3	38H1160	4	Adapter Fitting	-
4	R26448	10	O-Ring	-
5	38H1212	1	Adapter Fitting	-
6	T77613	12	O-Ring	-
7	AT173434	2	Hydraulic Hose	17.4752" X 2753 mm (108-1/2") X 17.4752"
8	AT102430	1	Hydraulic Hose	17.4752" X 1415 mm (55-3/4") X 17.4752"
9	AT102429	1	Hydraulic Hose	17.4752" X 955 mm (37-1/2") X 17.4752"
10	AT84191	1	Hose Clamp	-
11	AT173440	1	Hydraulic Hose	9/16" X 2312 mm (91") X 9/16"
12	T77814	2	O-Ring	-
13	T154342	1	Retainer	HOSE
14	T154343	1	Bracket	(USE UPPER TWO HOLES OF BRACKET)
15	N189220	2	Tie Band	-
16	19M7784	2	Screw	M10 X 20
17	19M7805	2	Screw	M10 X 45
18	24M7239	2	Washer	10.700 X 21 X 2.500 mm
19	14M7400	2	Lock Nut	M10
20	AT173434	2	Hydraulic Hose	17.4752" X 2753 mm (108-1/2") X 17.4752"
21	24M7054	12	Washer	6.400 X 12 X 1.600 mm
22	AT134931	1	Check Valve	-
23	R28782	1	O-Ring	-
24	AT175287	4	Check Valve	(SUB FOR AT160574)ORIFICE CHECK (USED WITH TANDEM VALVE BOOM AND BUCKET SECTION PILOT CAPS)
25	H77698	1	Tie Band	-
26	38H1004	1	Elbow Fitting	(USE WITH TWO AND THREE-LEVER CONTROLLER)
27	38H1160	1	Adapter Fitting	(USE WITH SINGLE LEVER CONTROLLER)
28	AT102429	1	Hydraulic Hose	17.4752" X 955 mm (37-1/2") X 17.4752"

SINGLE LEVER, TWO-LEVER AND THREE-LEVER REMOTE HYDRAULICS (552447 - )

Нет текстового описания
