SINGLE LEVER, TWO-LEVER AND THREE-LEVER REMOTE HYDRAULICS ( - 552446)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT150684	1	Plate	(SUB AT168456 ) (ALSO ORDER AT171268)(WRIST REST COMPONENTS) ((USE WITH TWO-LEVER CONTROLLER)
1	AT150683	1	Plate	-
1	AT168470	1	Plate	(USE WITH THREE-LEVER CONTROLLER)
1	AT168456	1	Plate	(USE WITH TWO-LEVER CONTROLLER)
1	AT150685	1	Plate	(SUB AT168470 ) (ALSO ORDER AT171268)(WRIST RESTS ASSEMBLY) (USE WITH THREE-LEVER CONTROLLER)
2	21M7285	8	Screw	M6 X 12, PAN HD. (USE WITH SINGLE LEVER CONTROLLER)
2	21M7248	8	Screw	M6 X 30, (USE WITH TWO-LEVER CONTROLLER)
2	21M7285	16	Screw	M6 X 12, (USE WITH THREE-LEVER CONTROLLER)
3	38H1160	4	Adapter Fitting	-
4	R26448	10	O-Ring	-
5	38H1212	1	Adapter Fitting	-
6	T77613	20	O-Ring	-
7	AT102413	4	Hydraulic Hose	17.4752" X 1344 mm (53") X 17.4752"
8	AT102430	1	Hydraulic Hose	17.4752" X 1415 mm (55-3/4") X 17.4752"
9	AT102429	1	Hydraulic Hose	17.4752" X 955 mm (37-1/2") X 17.4752"
10	T81029	4	Nut	-
11	AT102427	1	Hydraulic Hose	9/16" X 1074 mm (42-1/4") X 9/16"
12	T77814	4	O-Ring	-
13	14H832	1	Nut	9/16"
14	T108441	1	Plate	-
15	24M7239	3	Washer	10.700 X 21 X 2.500 mm
16	19M7784	2	Screw	M10 X 20
17	38H1284	1	Adapter Fitting	-
18	38H1285	4	Union Fitting	-
19	AT117118	1	Hydraulic Hose	9/16" X 1199 mm (47-1/4") X 9/16"
20	AT102866	2	Hydraulic Hose	17.4752" X 1445 mm (57") X 17.4752"
21	AT102553	2	Hydraulic Hose	17.4752" X 1370 mm (54") X 17.4752"
22	AT134931	1	Check Valve	-
23	R28782	1	O-Ring	-
24	AT175287	4	Check Valve	(SUB FOR AT160574)ORIFICE CHECK (USED WITH TANDEM VALVE BOOM AND BUCKET SECTION PILOT CAPS)
25	-	1	Part 31	(MAKE FROM T139132, 40 LINKS)
26	-	1	Part 32	(MAKE FROM T139131 BULK MATERIAL, CUT TO LENGTH)
27	H77698	1	Tie Band	-
28	38H1004	1	Elbow Fitting	(USE WITH TWO AND THREE-LEVER CONTROLLER)
29	38H1160	1	Adapter Fitting	(USE WITH SINGLE LEVER CONTROLLER)
30	19M7785	1	Screw	M10 X 25
31	24M7054	12	Washer	6.400 X 12 X 1.600 mm
32	N189220	1	Tie Band	(USE WITH SINGLE AND TWO-LEVER CONTROLLER)

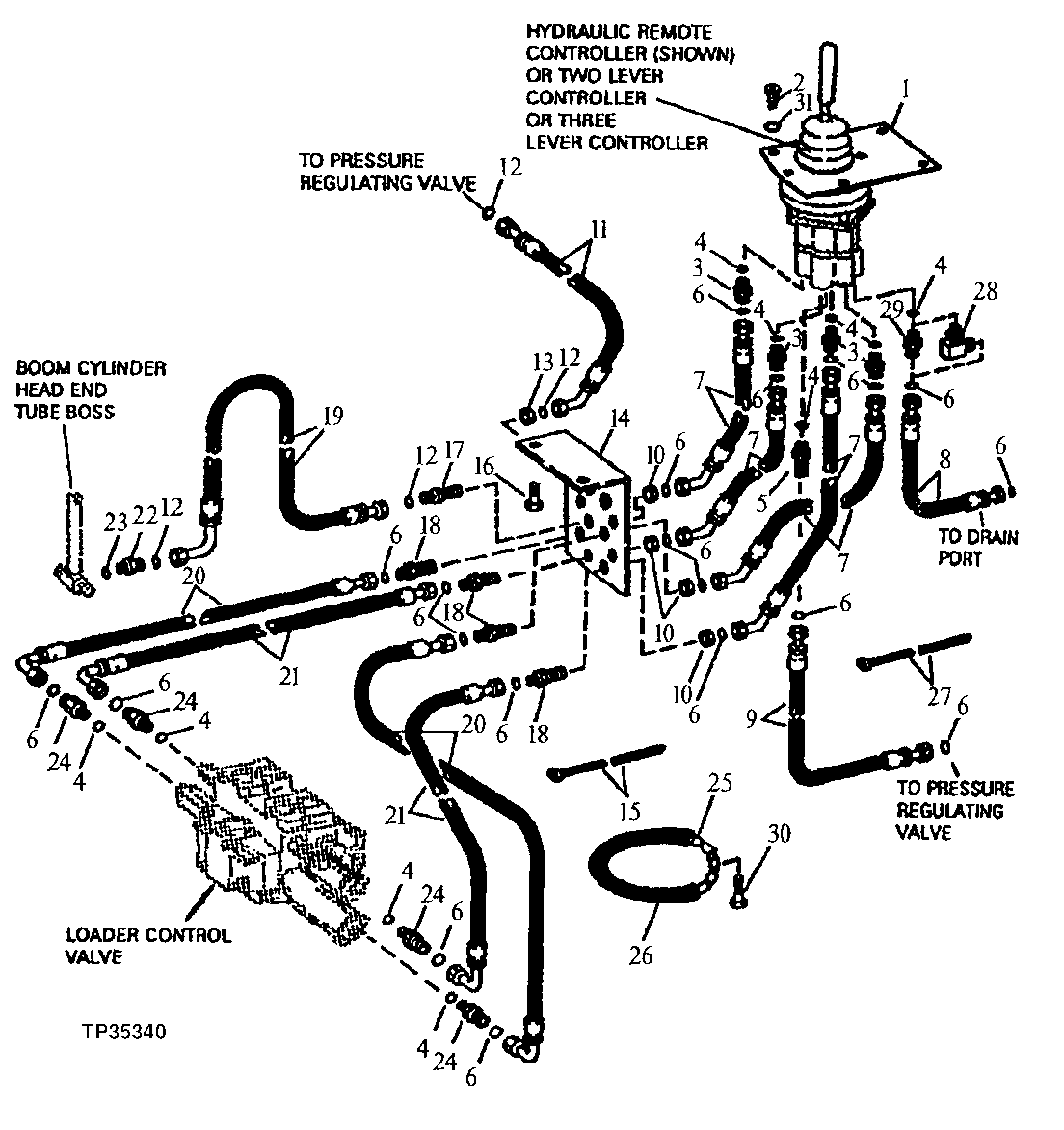

SINGLE LEVER, TWO-LEVER AND THREE-LEVER REMOTE HYDRAULICS ( - 552446)
