SEAT BASE, DUST COVER AND WEIGHT ADJUSTER ASSEMBLY

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT177273	1	Seat Suspension	(VINYL) (STD)/(HD), (SUB FOR AT180868)
1	AT180877	1	Seat Suspension	(CLOTH) (HD)/SHORT ARMRESTS
2	-	1	Part 4	(USE WITH AT161388)( AT161393 NO LONGER AVAILABLE)
3	AT135979	1	Plate	-
4	AT135978	1	Seat Suspension	SCISSORS
5	AT135981	1	Shock Absorber	DUAL SHOCK
6	AT135982	1	Weight	ADJUSTMENT
7	AT180872	1	Base	(SUB FOR AT135985, THIS APPLICATION)BASE
8	AT135980	1	Shock Absorber	SINGLE SHOCK
9	AT161392	1	Plate	REINFORCEMENT
10	AT135983	1	Indicator	WEIGHT
11	AT161389	1	Knob	WEIGHT ADJUSTMENT (USE WITH AT180868 STD/HD)
11	-	1	Part 15	( AT163438 NO LONGER AVAILABLE), WEIGHT ADJUSUSTMENT (USE WITH AT180877 (HD)/ SHORT)
12	AT163443	1	Crank	HANDLE ASSEMBLY (USE WITH AT180877 (HD)/ SHORT)
13	AT180873	1	Boot	(SUB FOR AT117143, THIS APPLICATION)DUST COVER
14	L38892	50	Plug	-
15	14M7165	2	Lock Nut	M6
16	AL36667	1	Gas Operated Cylinder	-
17	24M7213	3	Washer	10.500 X 25 X 4 mm
18	AL38526	1	Fork	(SUB FOR AL36659)
19	L39011	2	Rivet	-
20	L38891	1	RAIL	-
21	L38890	1	Plate	-
22	L38850	1	Washer	-
23	L42037	2	Extension Spring	-
24	AL41476	2	Gas Operated Cylinder	-
25	AL41469	1	Retainer	-
26	L42036	2	Weld Nut	-
27	L38866	1	Spring	-
28	L38857	1	Plug	-
29	L38847	1	Guide	-
30	L38851	1	Roller	-
31	40M7030	1	Snap Ring	-
32	AT84228	1	Pin Fastener	-
33	L38855	4	Roller	-
34	L38852	2	Plate	-
35	L38853	1	Plate	-
36	AT84226	1	Pin Fastener	-
37	L42041	4	Bushing	-
38	L38862	1	Bar	-
1A	AT177364	1	Strap	(USE WITH AT177273 AND AT180877)
2A	AT180874	1	Adjuster	(USE WITH AT177273 AND AT180877)

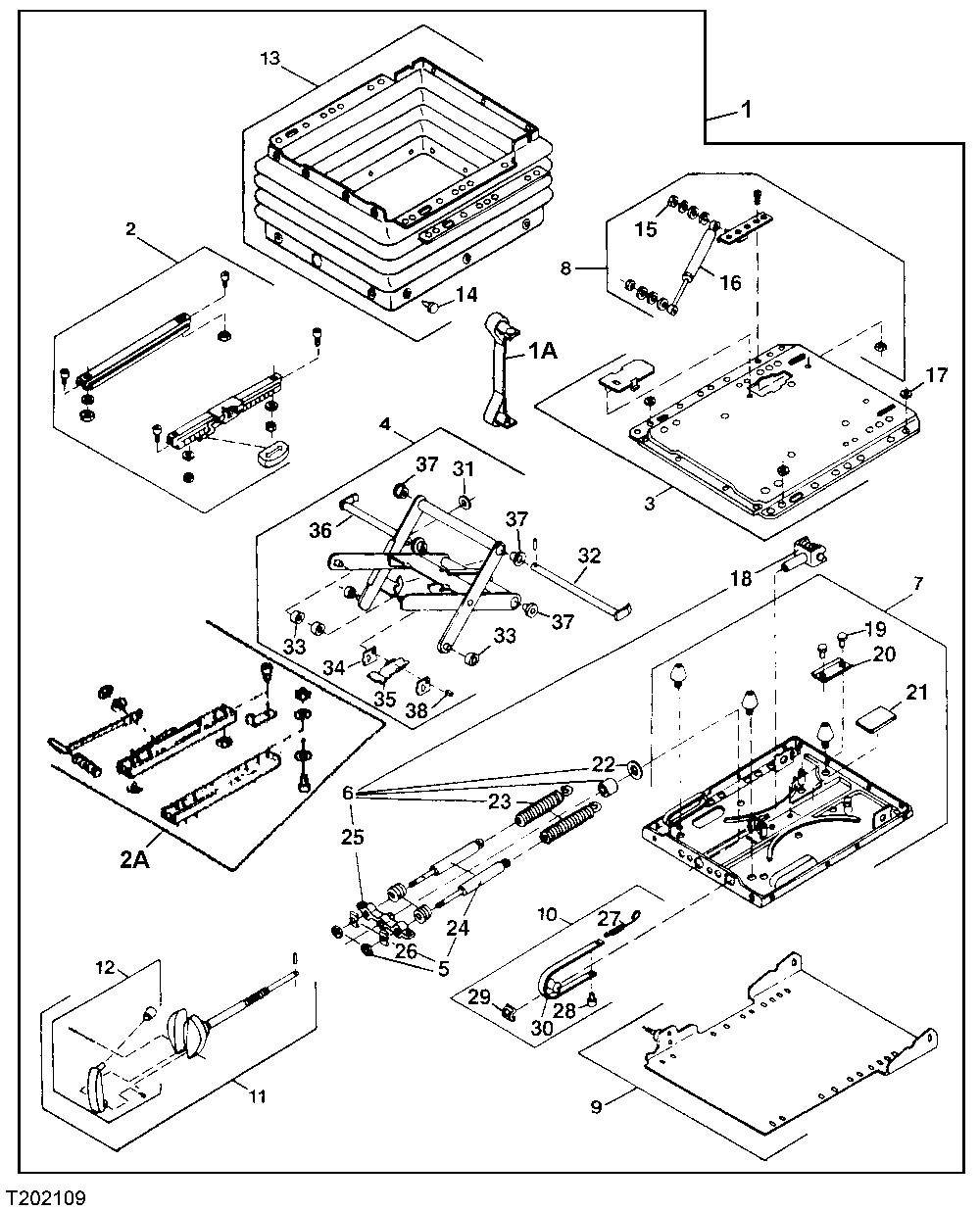

SEAT BASE, DUST COVER AND WEIGHT ADJUSTER ASSEMBLY
