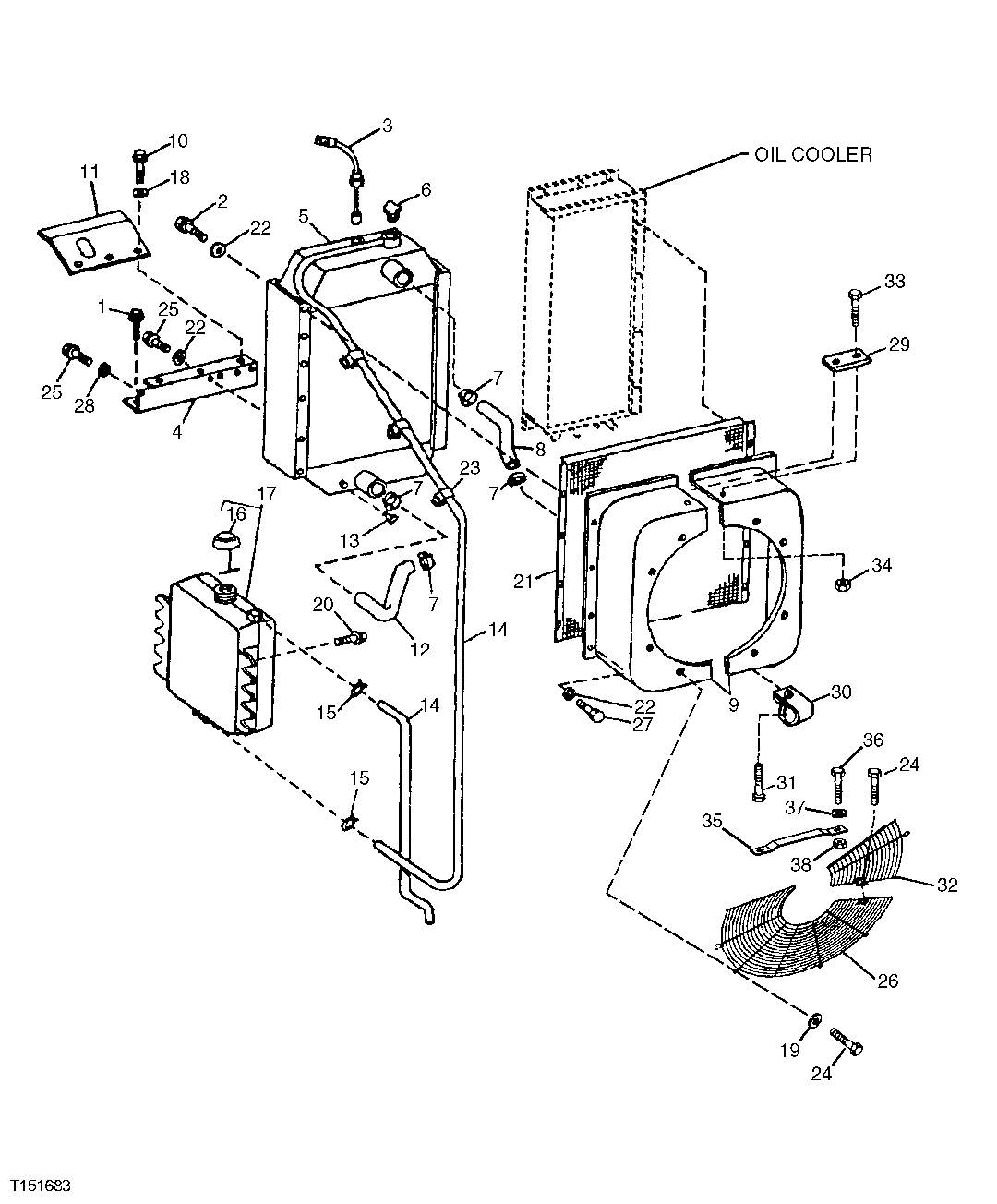

RADIATOR, FAN SHROUD AND GUARD (557739 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7786	2	Screw	M10 X 30, (LOWER RADIATOR TO ENGINE FRAME)
2	19M7784	6	Screw	M10 X 20, (RADIATOR TO GRILLE HOUSING)
3	AT169418	1	Sensor	(SUB FOR AT164815)
4	AT160384	1	Angle	-
5	AT177176	1	Radiator	(SUB FOR AT165194)
6	AT173610	1	Filler Cap	(SUB FOR AT165587, THIS APPLICATION)
7	AR21999	3	Hose Clamp	(TWO - UPPER RADIATOR HOSE, ONE - LOWER RADIATOR HOSE TO RADIATOR)
7	AR40418	1	Hose Clamp	(LOWER RADIATOR HOSE TO WATER PUMP)
8	T157514	1	Radiator Hose	(UPPER)
9	AT150469	1	Shroud	-
10	19M7865	3	Screw	M8 X 16
11	T145670	1	Shield	-
12	T157515	1	Radiator Hose	(LOWER)
13	AT13740	1	Drain Valve	-
14	-	1	Part 15	(MAKE FROM T79477 BULK MATERIAL, CUT TO LENGTH)
15	T13254	2	Clamp	-
16	AT106413	1	Cap	-
17	AT162597	1	Tank	(MAY REQUIRE LONGER HOSES) ( T79477 CUT TO LENGTH) (SUB AT166459)
17	AT166459	1	Tank	-
18	24M7238	3	Washer	8.700 X 17 X 2 mm
19	24M7298	5	Washer	8.400 X 25 X 2 mm, (FAN GUARD TO FAN SHROUD)
20	19M7866	4	Screw	M8 X 20
21	-	1	Part 23	SAND, (INCLUDES (8) 19M7784 ( AT159943 NO LONGER AVAILABLE))
22	24M7296	15	Washer	10.500 X 30 X 2.500 mm, (EIGHT - SHROUD TO RADIATOR AND OIL COOLER, SEVEN - RADIATOR TO GRILLE HOUSING AND LOWER SUPPORT)
23	T119748	3	Clip	-
24	19M7867	6	Screw	M8 X 25
25	19M7784	2	Screw	M10 X 20, (LOWER SUPPORT TO RADIATOR)
26	AT176907	1	Guard	-
27	19M7783	8	Screw	M10 X 16, WITHOUT SANDSHIELD
27	19M7784	8	Screw	M10 X 20, WITH SANDSHIELD
28	T148712	1	Washer	-
29	T51544	1	STRAP	-
30	N35147	1	CLIP	-
31	19M7897	1	Screw	M8 X 35
32	AT176908	1	Guard	-
33	19M7785	2	Screw	M10 X 25
34	14M7400	2	Lock Nut	M10
35	T172955	1	Support	-
36	19M7867	2	Screw	M8 X 25
37	24M7298	2	Washer	8.400 X 25 X 2 mm
38	14M7396	2	Lock Nut	M8

RADIATOR, FAN SHROUD AND GUARD (557739 - )
