Primary Fuel Filter and Fuel and Water Separator Fuel Lines (6081)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE50467	1	Hand Primer	-
2	RE51649	1	Seal Kit	(MECHANICAL COMPONENTS)
3	19H1731	2	Cap Screw	3/8" X 1"
4	24M7346	2	Washer	11 X 20 X 2 mm
5	R26286	1	O-Ring	-
6	AM31805	1	Fitting	-
7	R67092	4	Sealing Washer	(A)
8	RE63729	1	Fuel Line	-
9	R134957	1	Elbow Fitting	(SUB FOR AR101212)
10	RE51650	1	Sediment Bowl	-
11	RE65431	1	Filter Element	(SUB FOR RE62423 ) (SUB RE508633)
12	RE516553	1	Seal Kit	(FUEL FILTER PACKINGS), (SUB FOR RE50752)
13	R89927	2	Clamp	-
14	AR86745	1	Filter Element	-
15	19H3104	2	Cap Screw	7/16" X 1-1/4"
16	24H1325	2	Washer	15/32" X 59/64" X 0.065"
17	R119223	2	Plug	-
18	RE54244	1	Check Valve	-
19	RE54245	1	Fitting	-
20	RE61693	1	Base	-
23	R83489	1	Fitting	-
24	51M4236	1	Sealing Ring	(SUB FOR R93008)
25	RE63183	1	Filter Head	(HEADER) ( RE63183 NO LONGER AVAILABLE), (SUB RE500161 ) (ALSO ORDER (2) R65684, (2) R82719 AND (4) R26286)
26	15H685	2	Pipe Plug	1/4"
27	RE516513	1	Pump Repair Kit	(WITH HAND PRIMER) (CONTAINS 10 O-RINGS)
27	RE516512	1	O-Ring Kit	(WITHOUT HAND PRIMER) (CONTAINS 10 O-RINGS)
21A	RE47850	1	Fuel Line	(SUB RE65787, THIS APPLICATION)
21B	RE65787	1	Fuel Line	-
22A	RE65367	1	Fuel Line	(SUB RE500280, THIS APPLICATION ) (ALSO ORDER RE65787)
22B	RE500280	1	Fuel Line	(SUB RE504139)
22C	RE515490	1	Fuel Line	(SUB FOR RE504139)

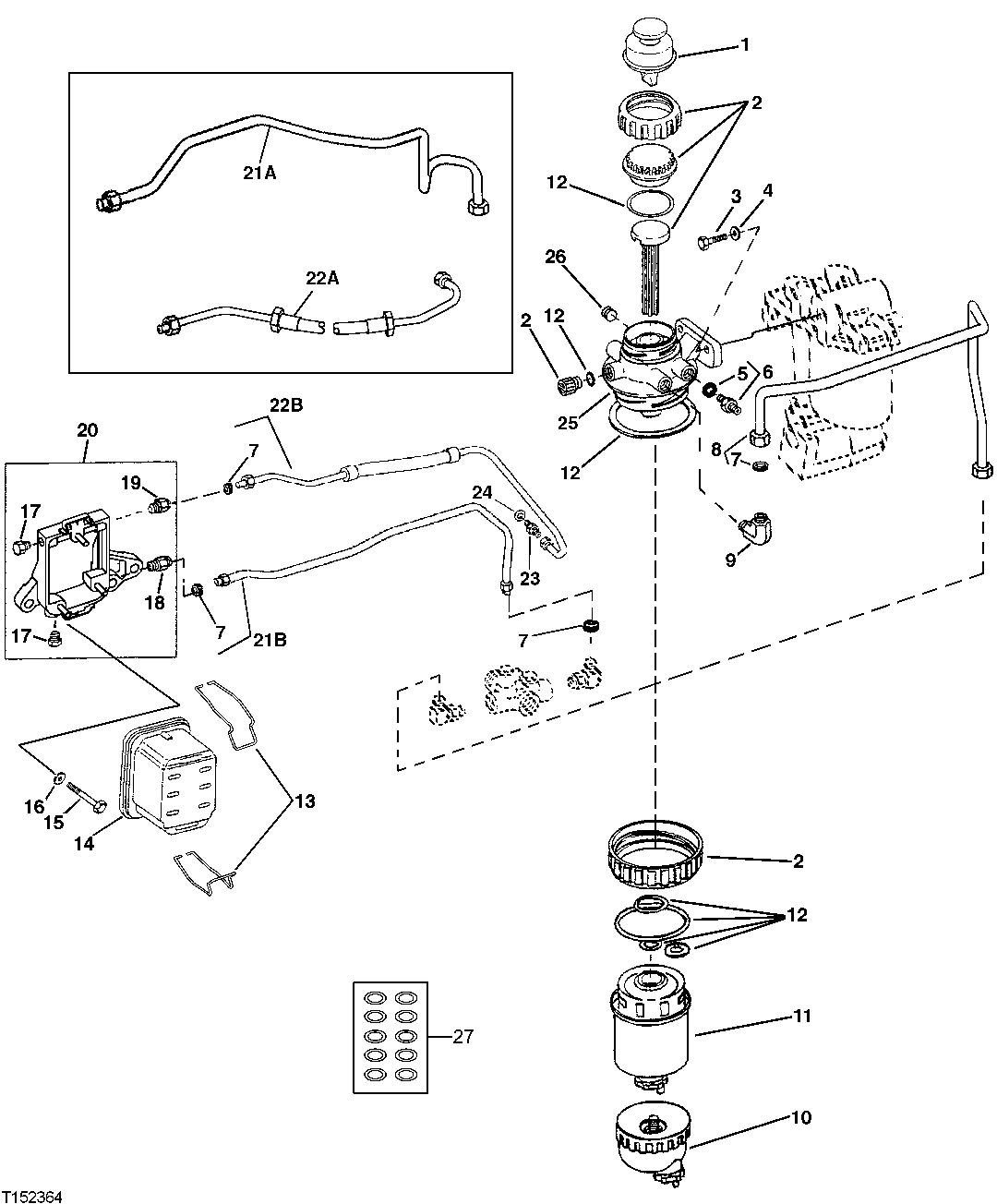

Primary Fuel Filter and Fuel and Water Separator Fuel Lines (6081)

Нет текстового описания
