PRESSURIZER HOUSING, FREEZE CONTROL SWITCH, LOUVERS AND DUCTS (547399 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	T150169	1	Louver	-
3	AT145598	1	Switch	-
4	21M7278	2	Screw	M5 X 10
5	R79033	6	Rivet	-
6	AT158313	1	Bracket	-
7	M84972	4	Nut	-
8	T153261	1	Housing	-
9	19M7786	5	Screw	M10 X 30
10	AC15595	4	Clamp	-
11	T143145	2	Hose	-
12	-	1	Part 13	(MAKE FROM T66419 BULK MATERIAL, CUT TO LENGTH)
13	24M7296	7	Washer	10.500 X 30 X 2.500 mm
14	T119507	2	Isolator	-
15	-	1	Part 16	( T137865 NO LONGER AVAILABLE)
16	AR21999	1	Hose Clamp	-
17	T143159	1	Hose	-
18	AT151486	1	Housing	-
19	24H1777	2	Washer	21/64" X 3/4" X 0.060"
20	19M7865	3	Screw	M8 X 16
21	-	1	Part 22	(MAKE FROM T59938 OR T63019 BULK MATERIAL, CUT TO LENGTH)
22	T141188	1	Housing	-
23	19M7783	2	Screw	M10 X 16
24	M90214	8	Lock Nut	(SUB FOR T119781)
25	-	1	Part 26	(MAKE FROM T59937 BULK MATERIAL, CUT TO LENGTH)
26	AT151036	2	Louver	-
1A	T83062	8	Screw	-
1B	R54388	8	Screw	-
27A	AT147100	2	Louver	(SUB AT170869 ) (ALSO ORDER (4) R54388)
27B	AT170869	1	Louver	(SET OF (2) TWO LOUVER PANELS)

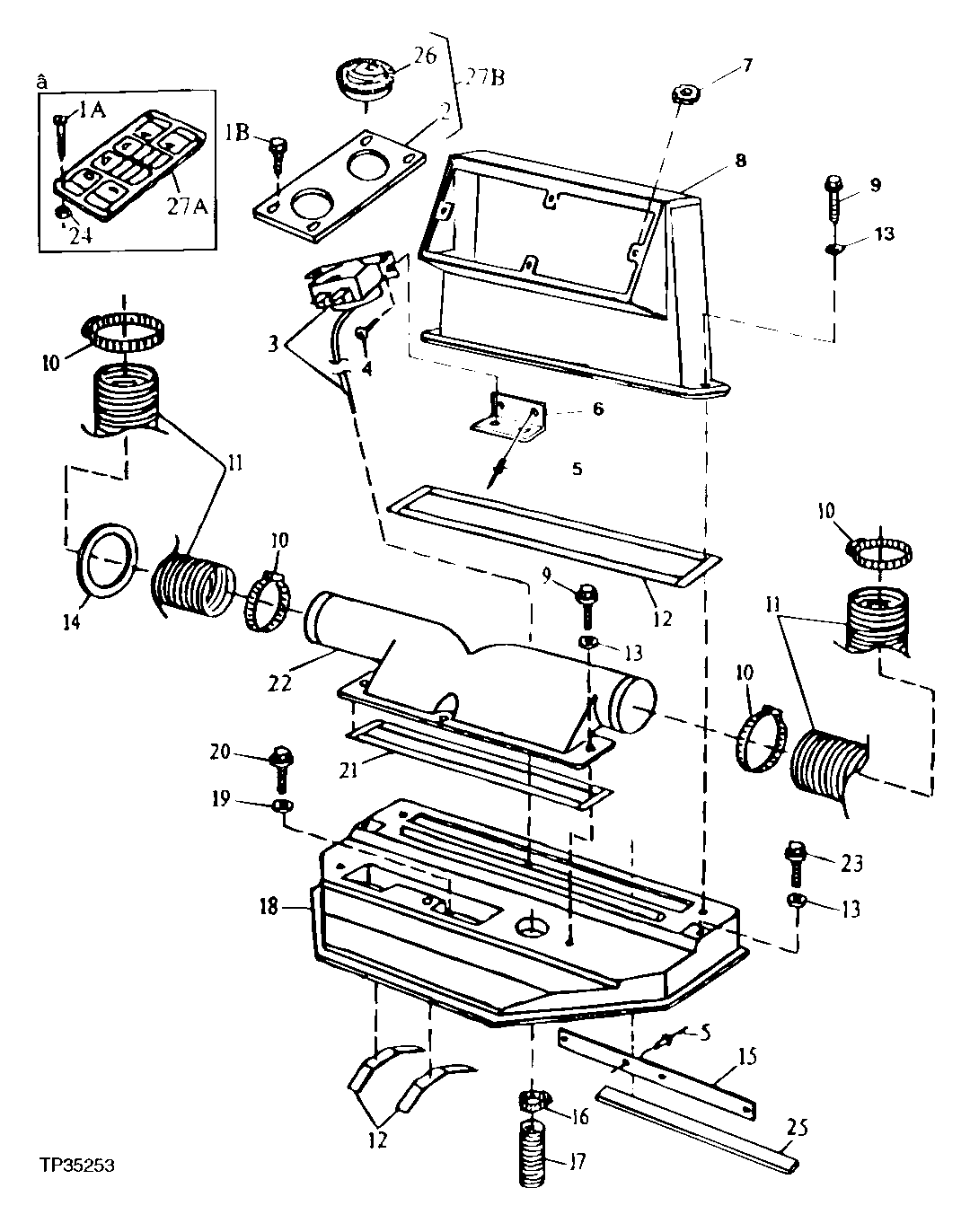

PRESSURIZER HOUSING, FREEZE CONTROL SWITCH, LOUVERS AND DUCTS (547399 - )
