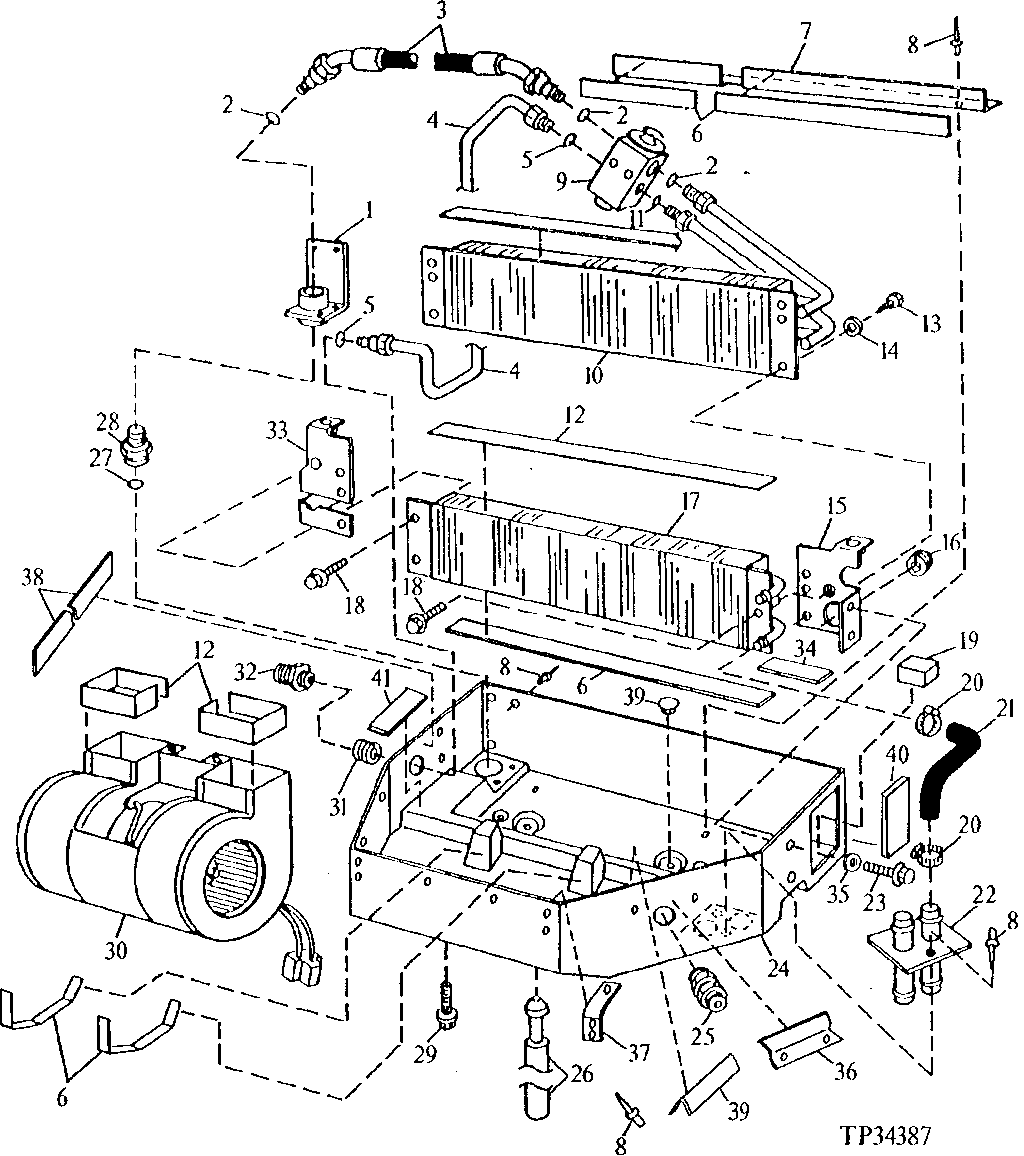

PRESSURIZER HOUSING, BLOWER FAN, EVAPORATOR AND EXPANSION VALVE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT160094	1	Bracket	-
2	R33259	3	O-Ring	-
3	AT160074	1	Refrigerant Hose	-
4	AT151813	1	Line	-
5	R10093	2	O-Ring	-
6	-	1	Part 6	(MAKE FROM T66419 BULK MATERIAL, CUT TO LENGTH)
7	T145366	1	Angle	-
8	R79033	1	Rivet	-
9	AH203871	1	Valve	(SUB FOR AH122867, AH137702)
9	AH203871	1	Valve	(SUB FOR AH137702)
10	AT159776	1	Heat Exchanger	NLA
10	-	1	Part 12	( AT166754 NO LONGER AVAILABLE) AIR CONDITIONING FIELD KIT (INCLUDES A/C: COMPRESSOR HARNESS, COMPRESSOR GRP, WIRING, CAB SYSTEM AND CONDENSER SYSTEM)
10	AT180127	1	Mounting Parts	(FOR USE WITH THE 8.1 ENGINE) (AIR CONDITIONING FIELD KIT (INCLUDES A/C COMPRESSOR HARNESS, COMPRESSOR GRP, WIRING, CAB SYSTEM AND CONDENSER SYSTEM)
11	R113050	1	O-Ring	-
12	-	1	Part 15	(MAKE FROM T59937 BULK MATERIAL, CUT TO LENGTH)
13	37H43	6	Screw	-
14	24M7146	6	Washer	4.300 X 12 X 1 mm
15	AT151419	1	Plate	-
16	M65464	1	Grommet	( H91811 NO LONGER AVAILABLE) (CUT TO FIT HOLE)
17	AT79955	1	Heater	-
18	19M7801	2	Screw	M8 X 60
19	-	1	Part 22	(MAKE FROM T150031 BULK MATERIAL, CUT TO LENGTH)
20	AR21837	4	Clamp	-
21	T141507	1	Radiator Hose	LOWER HEATER CORE CONNECTION
21	T141508	1	Radiator Hose	UPPER HEATER CORE CONNECTION
22	AT146660	1	Support	-
23	19M7938	4	Cap Screw	M10 X 20
24	AT151487	1	Housing	-
25	AT151736	1	Grommet	-
26	AT168138	2	Tube	(SUB FOR AT117116)
27	T143166	1	O-Ring	(SUB FOR T143166 OR T106369)
28	T102868	1	Adapter Fitting	-
29	19M7783	3	Screw	M10 X 16
30	T139101	2	Fan	(NOT ILLUSTRATED)
30	R56101	2	Clip	(NOT ILLUSTRATED)
30	AT147023	1	Blower	-
31	T65643	1	Grommet	-
32	AR58147	1	Hydr. Quick Coupler Plug	-
33	AT151418	1	Plate	-
34	-	1	Part 40	(MAKE FROM T59937 BULK MATERIAL, CUT TO LENGTH)
35	24M7296	4	Washer	10.500 X 30 X 2.500 mm
36	T150044	3	Clip	-
37	AT146743	2	Bracket	-
38	24M7138	6	Washer	5.300 X 15 X 1 mm
39	-	1	Part 45	(MAKE FROM T66354 BULK MATERIAL, CUT TO LENGTH)
40	-	1	Part 46	(MAKE FROM T66419 BULK MATERIAL, CUT TO LENGTH)
41	-	1	Part 47	(MAKE FROM T59937 BULK MATERIAL, CUT TO LENGTH)

PRESSURIZER HOUSING, BLOWER FAN, EVAPORATOR AND EXPANSION VALVE
