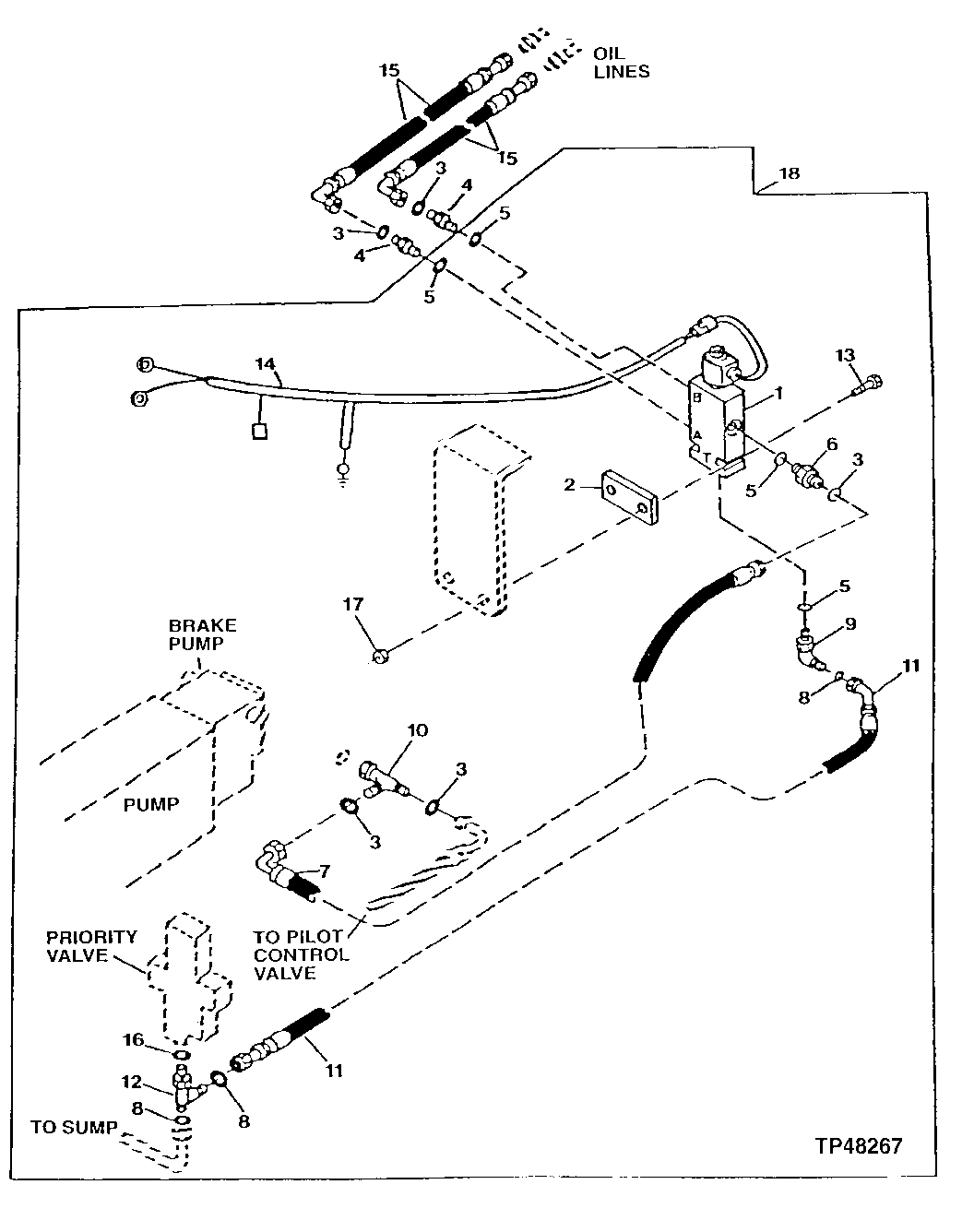

PIN DISCONNECT SOLENOID HYDRAULICS (552447 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT147011	1	Solenoid	-
1	H77698	1	Tie Band	(BAND HOSE TOGETHER-MIDWAY TO PIN DISCONNECT VALVE)
1	AT158585	1	Spool Valve	PIN DISCONNECT VALVE
2	H102268	2	Strap	-
3	T77613	6	O-Ring	-
4	38H1160	2	Adapter Fitting	-
5	R26448	4	O-Ring	-
6	T78705	1	Adapter Fitting	-
7	AT116449	1	Hydraulic Hose	17.4752" X 510 mm (20") X 17.4752"
8	T77814	4	O-Ring	-
9	38H1009	1	Elbow Fitting	-
10	38H1023	1	Tee Fitting	-
11	AT116448	1	Hydraulic Hose	9/16" X 571 mm (22-1/2") X 9/16"
12	38H1022	1	Tee Fitting	-
13	R109067	2	Screw	M6 X 50
14	AT158590	2	Wiring Harness	-
15	AT116447	2	Hydraulic Hose	-
16	R28782	1	O-Ring	-
17	14M7397	2	Lock Nut	M6
18	-	1	Part 20	( AT163859 NO LONGER AVAILABLE) PIN DISCONNECT (TO SOLENOID VALVE) AT163859, CONTROL VALVE KIT FOR QUICK COUPLER LOCKING PINS. INCLUDES CONTROL SWITCH, HARNESS, SOLENOID VALVE WITH PLUGGED WORK PORTS, HOSES AND FITTINGS TO CONNECT PRESSURE AND RETURN SOURCES. REQUIRES FIELD SUPPLIED HOSES/LINES FROM VALVE TO QUICK COUPLER PIN CYLINDERS. WORK PORT SIZE: SAE-6 (3/8 TUBE SIZE).

PIN DISCONNECT SOLENOID HYDRAULICS (552447 - )

Нет текстового описания
