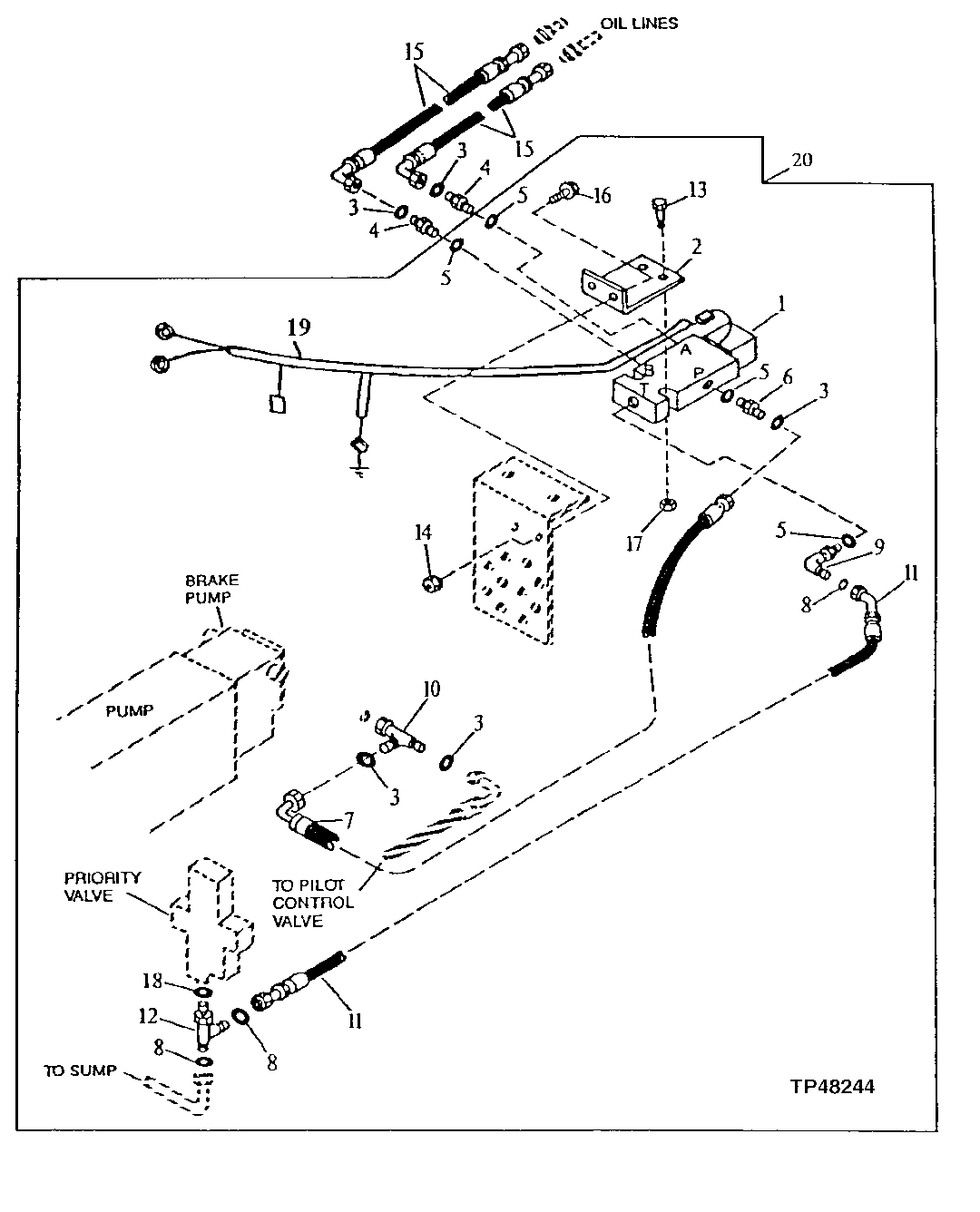

PIN DISCONNECT SOLENOID HYDRAULICS ( - 552446)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT147011	1	Solenoid	-
1	H77698	1	Tie Band	(BAND HOSE TOGETHER-MIDWAY TO PIN DISCONNECT VALVE)
1	AT158585	1	Spool Valve	PIN DISCONNECT VALVE
2	T148583	1	Bracket	(SUB FOR T122990, THIS APPLICATION)
3	T77613	6	O-Ring	-
4	38H1160	2	Adapter Fitting	-
5	R26448	4	O-Ring	-
6	T78705	1	Adapter Fitting	-
7	AT116449	1	Hydraulic Hose	17.4752" X 510 mm (20") X 17.4752"
8	T77814	4	O-Ring	-
9	38H1009	1	Elbow Fitting	-
10	38H1023	1	Tee Fitting	-
11	AT116448	1	Hydraulic Hose	9/16" X 571 mm (22-1/2") X 9/16"
12	38H1022	1	Tee Fitting	-
13	R109067	2	Screw	M6 X 50
14	14M7298	2	Flange Nut	M8
15	AT116447	2	Hydraulic Hose	17.4752" X 1150 mm (45-1/4") X 17.4752"
16	19M7866	2	Screw	M8 X 20
17	14M7397	2	Lock Nut	M6
18	R28782	1	O-Ring	-
19	AT158590	1	Wiring Harness	-
20	-	1	Part 22	( AT163859 NO LONGER AVAILABLE) PIN DISCONNECT (TO SOLENOID VALVE) AT163859, CONTROL VALVE KIT FOR QUICK COUPLER LOCKING PINS. INCLUDES CONTROL SWITCH, HARNESS, SOLENOID VALVE WITH PLUGGED WORK PORTS, HOSES AND FITTINGS TO CONNECT PRESSURE AND RETURN SOURCES. REQUIRES FIELD SUPPLIED HOSES/LINES FROM VALVE TO QUICK COUPLER PIN CYLINDERS. WORK PORT SIZE: SAE-6 (3/8 TUBE SIZE).
