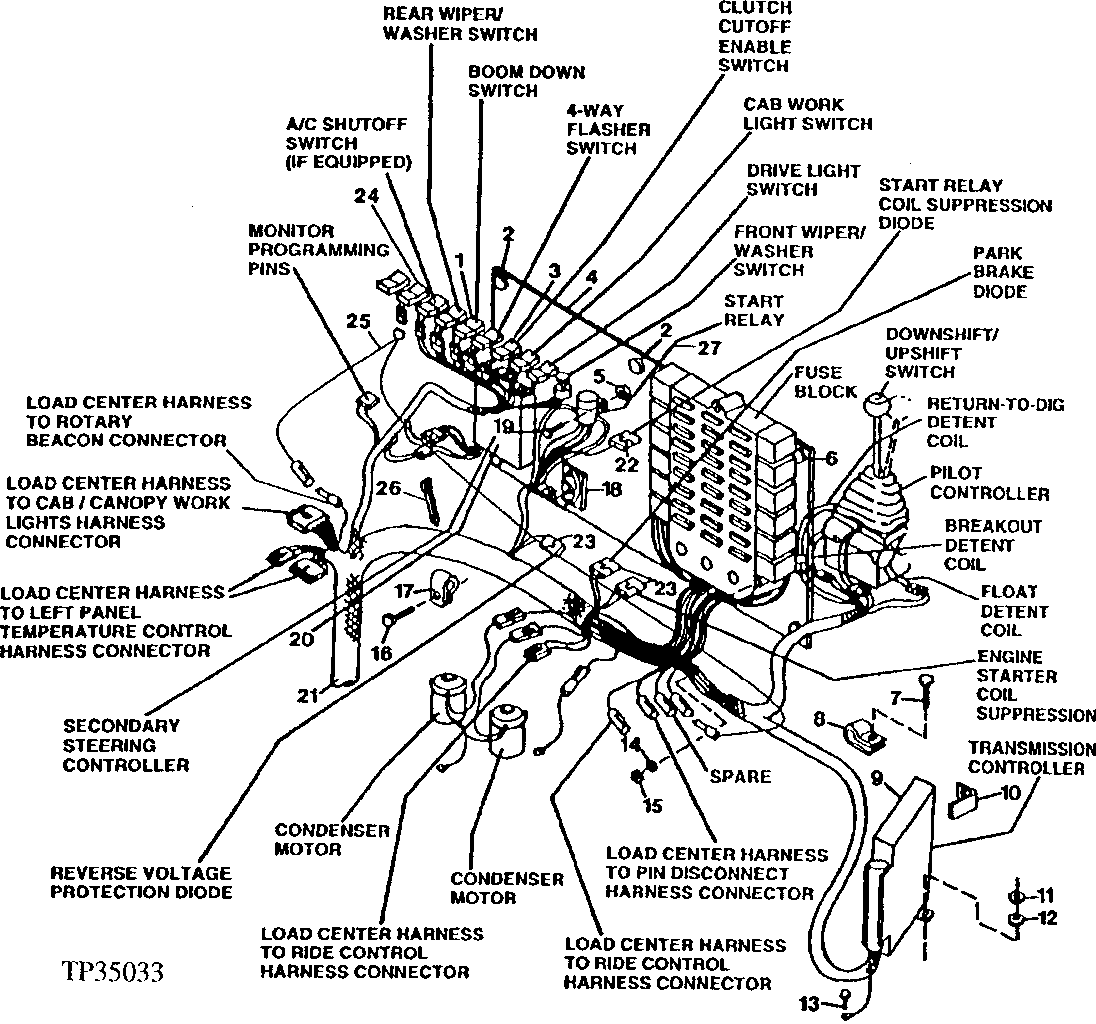

LOAD CENTER COMPARTMENT

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT150343	1	Switch	BOOM DOWN
2	19M7784	3	Screw	M10 X 20
2	24M7239	3	Washer	10.700 X 21 X 2.500 mm
3	AT150348	1	Switch	CLUTCH CUTOFF
4	AT146734	1	Plate	-
5	T103238	4	Nut	-
6	14M7397	3	Lock Nut	M6
7	19M7784	1	Screw	M10 X 20
8	T74416	1	Clamp	-
9	AT158190	1	Control Console	TRANSMISSION, NLA
9	AT173661	1	Control Console	(SUB FOR AT167833)
10	T145035	1	Bracket	-
11	14M7360	3	Lock Nut	M5
12	24M7138	3	Washer	5.300 X 15 X 1 mm
13	19M7865	1	Screw	M8 X 16
14	24M7138	3	Washer	5.300 X 15 X 1 mm
15	14M7360	3	Lock Nut	M5
16	19M7784	2	Screw	M10 X 20
17	AH77714	2	Clip	-
18	AT157679	1	Diode	LOAD SUPPRESSION
19	21M7022	4	Screw	M5 X 20
20	RE15428	1	Timer	SECONDARY STEERING
21	AT149891	1	Wiring Harness	(SUB AT174493)
21	AT167265	1	Wiring Harness	(SUB AT174493)
21	AT174493	1	Wiring Harness	-
21	AT149885	1	Power Supply	LOAD CENTER ASSEMBLY, (INCLUDES: PLATE, HARNESS, RELAYS, FLASHER, DIODES, CIRCUIT BREAKERS, FUSES AND MISCELLANEOUS HARDWARE) (SUB AT167264 AND AT167378)
21	AT167264	1	Power Supply	LOAD CENTER ASSEMBLY, (INCLUDES: PLATE, HARNESS, RELAYS, FLASHER, DIODES, CIRCUIT BREAKERS, FUSES AND MISCELLANEOUS HARDWARE)
22	AR94101	1	Diode	START RELAY COIL SUPPRESSION
23	AT103399	3	Diode	REVERSE VOLTAGE PROTECTION, PARK BRAKE, AND ENGINE STARTER COIL SUPPRESSION
24	AT164399	1	Switch	(<service-part>AT164639</service-part>, ROTARY BEACON KIT (INCLUDES: <service-part >T148701</service-part> LABEL AND 57M7121 FUSE)) ROTARY BEACON
25	AT164516	1	Wiring Harness	(<service-part>AT164639</service-part>, ROTARY BEACON KIT (INCLUDES: <service-part >T148701</service-part> LABEL AND 57M7121 FUSE)) BEACON SWITCH
26	R44302	3	Tie Band	(<service-part>AT164639</service-part>, ROTARY BEACON KIT (INCLUDES: <service-part >T148701</service-part> LABEL AND 57M7121 FUSE)) USED TO TIE BEACON SWITCH HARNESS BACK
27	AT141011	1	Relay	-
