HYDRAULIC REMOTE CONTROLLER (ROBUST) (563543 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(K1)
2	-	1	Part 2	(SUB AT208188)(K1)
3	T170269	1	Nut	-
4	AT208911	1	Retainer	(K1)
5	T170293	1	Boot	(ALSO ORDER AT208911)
6	T170275	4	Nut	-
7	T173178	1	Lever	-
8	T172523	1	Set Screw	-
9	T173181	3	Washer	-
10	T173205	1	Washer	-
11	T170273	1	Fitting	-
12	T173180	1	Plate	-
13	T173182	3	Washer	-
14	T170272	1	Nut	-
15	AT210249	1	Post	-
16	AT210250	3	Ball Joint Socket	-
17	T170263	4	Cap Screw	-
18	-	1	Part 18	(SUB AT210209)
19	T170274	1	Pin	-
20	T170266	4	Grommet	(K1) (K2) (K3)
21	H77698	4	Tie Band	(K1) (K2) (K3)
22	R78059	8	Elec. Connector Seal	(K1) (K2)
23	T172522	1	Washer	-
24	R78058	8	Elec. Connector Terminal	(K1) (K2)
25	T173179	1	Nut	-
26	R78053	4	Electrical Connector Assy	(K1) (K2)
27	T196763	1	O-Ring	(SUB AT210209)(K3)
28	T164557	3	Electrical Coil	(K2)
29	T170284	3	Retainer	-
30	T170278	1	Bushing	(BUCKET DUMP)
31	T170307	1	Back-Up Ring	(K3)
32	T170306	1	Seal	(K3)
33	T131617	2	Ring	(K)
34	AT208178	2	Retainer	(BUCKET DUMP AND BOOM RAISE)
35	AT208179	2	Retainer	(BOOM LOWER AND BUCKET ROLL-BACK)
36	T170285	2	Plunger	-
37	T170286	2	Plunger	-
38	T103092	1	Shim	0.1 MM (.004")
39	T103093	1	Shim	0.2 MM (.007")
40	T103094	1	Shim	0.4 MM (.015")
41	AT208182	1	Spool	(BUCKET DUMP)
42	AT208181	1	Spool	(BOOM RAISE)
43	AT208183	1	Spool	(BOOM LOWER)
44	T170288	2	Spring	-
45	AT208180	2	Retainer Kit	-
46	T170289	2	Spring	-
47	T170287	2	Spring	-
48	-	1	Part 48	(SUB AT210209)
49	R26375	2	O-Ring	(K3)
50	-	2	Part 50	(SUB AT210209)
51	-	2	Part 51	(SUB AT210209)
52	AT181704	1	Control	-
53	AT181867	1	Plate	(JOYSTICK ONLY)
54	14H849	1	Nut	7/16"
55	AT209789	1	Spool	(BUCKET ROLL-BACK (USE WITH TOOL CARRIER AND LOG LOADER)
56	AT210376	1	Hose Kit	-

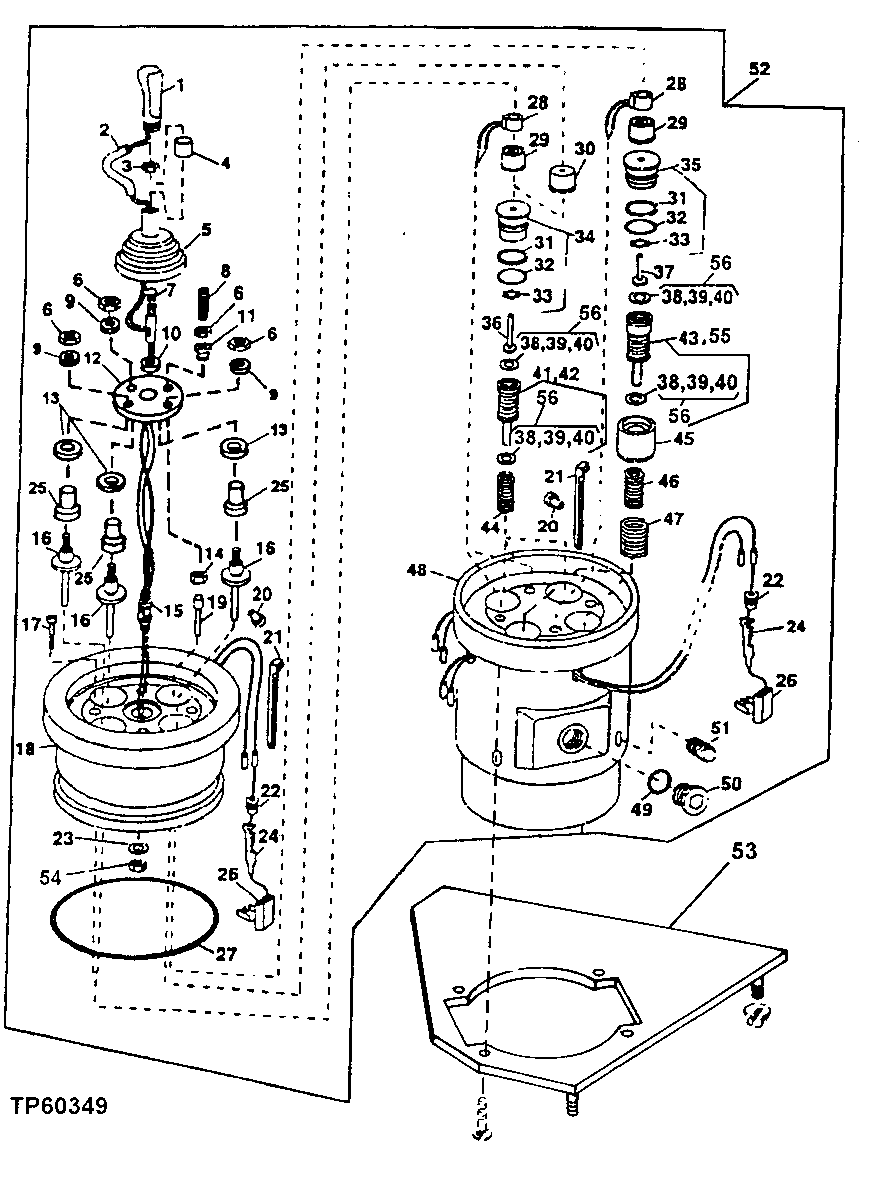

HYDRAULIC REMOTE CONTROLLER (ROBUST) (563543 - )
