HYDRAULIC REMOTE CONTROLLER ( - 563542)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT161677	1	Knob	(INCLUDES WIRING HARNESS)
2	T141746	1	Round Retainer	(USE WITH T141750)
2	T158975	1	Retainer	(USE WITH T158974)
3	T155091	1	Boot	(SUB FOR T141743)
4	R70513	4	Screw	-
5	AT177380	1	Control Kit	TOP (INCLUDES T158976 PLATE AND T49257 BUSHING) (SUB FOR T149238)
6	T149239	1	Plate	PLATE
7	T141741	1	Plate	COIL, RETAINER
8	T141750	1	Lever	LEVER (USE IF AVAILABLE) (SUB T158974 AND T158975)
8	T158974	1	Lever	(ALSO REQUIRES T158975)
9	T131605	3	Pressure Relief Valve	-
10	AT151917	1	Plate	DETENT
11	T141728	1	Plate	PUSH
12	-	4	Part 14	(SUB AT168888)
13	-	3	Part 15	(12-V), (SUB FOR (3) AT161116 ) (SUB AT168888)
14	T141736	1	Ball Joint Retainer	BALL JOINT
15	M41029	1	Snap Ring	-
16	-	3	Part 18	(SUB AT168888)
17	-	3	Part 19	(SUB AT168888)PULL
18	T102975	3	Spring	-
19	T141730	1	Ball Stud	BALL
20	T146043	1	Pin Fastener	ANTI-ROTATION
21	12M7006	4	Lock Washer	6 mm
22	19M7966	4	Screw	M6 X 25
23	-	1	Part 25	(SUB AT149546)
23	T102961	2	Dowel Pin	(IN HOUSING)
24	R26448	1	O-Ring	(K1)
25	T102952	4	Retainer	-
26	AT49216	1	Fitting Plug	-
27	T131602	4	Spring	RETURN (BORE "A, B, C AND D")
28	T145381	4	Spring	MAIN (BORE "B, C AND D")
28	T145382	1	Spring	MAIN (BORE "A")
29	T102955	4	Retainer	-
30	-	4	Part 34	(SUB AT162821)
31	T102958	4	Plunger	-
32	T131617	4	Ring	(K1) (K2)
33	T77857	1	O-Ring	(K1)
34	T30424	4	O-RING	(K1)
35	T103092	1	Shim	.004" THICK
36	T103093	1	Shim	.007" THICK
37	T103094	1	Shim	.015" THICK
38	15H560	1	Pipe Plug	1/16"
39	R70513	4	Screw	-
40	T141737	1	Housing	-
41	T131604	1	Cover	HEAT SHRINK WRAP (NO LONGER AVAILABLE)
42	AT168888	3	Detent Kit	-
43	T49257	1	Grommet	-
44	AT149546	1	Control	HYDRAULIC REMOTE (SUB AT181704) (ALSO ORDER AT181867 PLATE, JOYSTICK ONLY) OR ( AT181868 PLATE, JOYSTICK WITH THIRD FUNCTION)

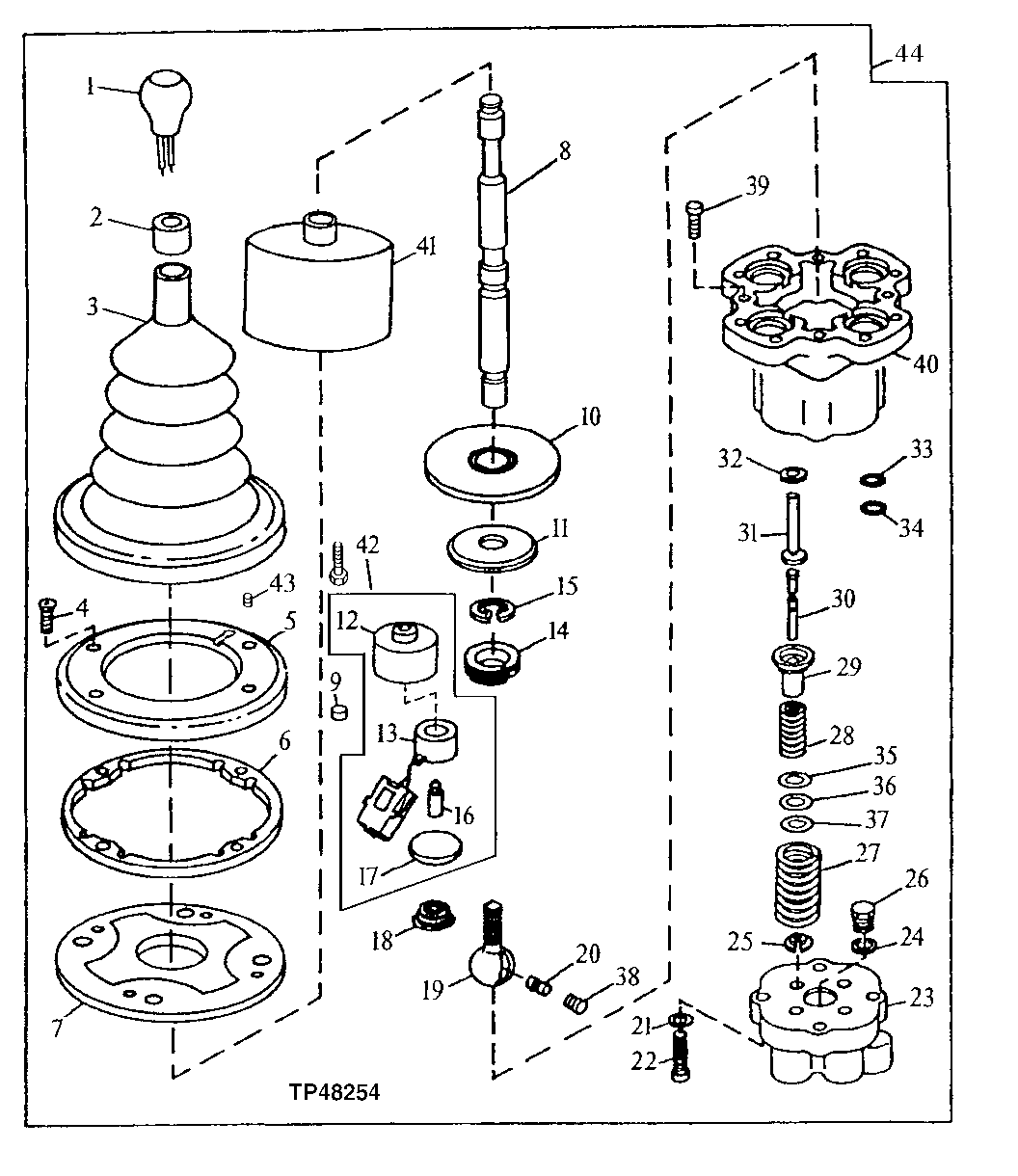

HYDRAULIC REMOTE CONTROLLER ( - 563542)
