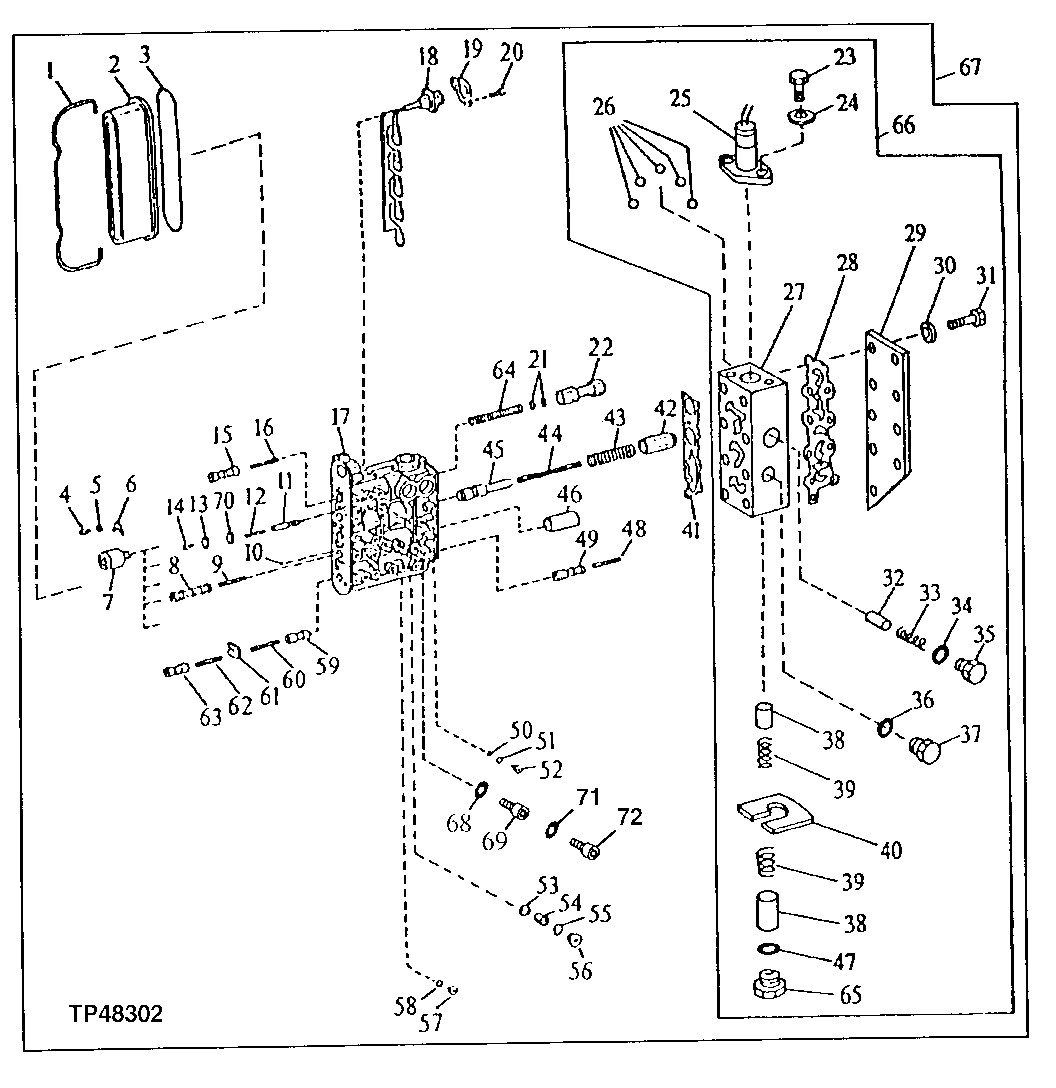

Gearshift System (Control Valve) (M6 Solenoid) (Transmission S.N. 010444- )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T144492	1	Clamp	-
2	T147190	1	Cover	-
3	T147189	1	O-Ring	(K2)
4	19M7600	5	Screw	M5 X 12
5	T144487	5	Washer	-
6	T144486	5	Plate	-
7	AT159224	5	Solenoid Hydraulic Valve	(12 VOLT)
8	T144479	1	Piston	-
9	T144475	1	Compression Spring	-
10	T144485	10	Ball	-
11	T144481	1	Valve	(USE IF AVAILABLE), (SUB T159235)
11	T159235	1	Hyd Actuated Control Valve	-
12	T144482	1	Compression Spring	-
13	T159237	1	Plate	(SUB FOR T144483)
14	19M7600	2	Screw	M5 X 12
15	T144480	1	Piston	-
16	T144475	1	Compression Spring	-
17	T153764	1	Housing	(ALSO ORDER TEN T144485 STEEL BALLS) (ALSO ORDER T159239)
18	AT159227	1	Wiring Harness	-
19	T144489	1	Plate	-
20	19M7768	2	Screw	M6 X 16
21	24M7388	2	Washer	10 X 16 X 1 mm
22	T148222	1	Piston	-
23	19M6415	2	Screw	M5 X 10
24	T129620	2	Spring Washer	-
25	AT169528	1	Solenoid Valve	(12 VOLT)
26	T144485	3	Ball	4.5 MM (.177")
26	T153014	1	Ball	5.5 MM (.217")
26	T153017	1	Ball	6.5 MM (.256")
27	T153012	1	Housing	(ALSO ORDER (3) T144485, T153014 AND T153017)
28	T153013	1	Gasket	(K1) (K2)
29	T153011	1	Plate	-
30	24M7267	9	Washer	6.400 X 11 X 1.600 mm
31	19M8572	9	Screw	M6 X 60
32	T153015	1	Piston	-
33	T153016	1	Compression Spring	-
34	T144511	1	O-Ring	(K2)
35	15M6550	1	Fitting	-
36	L11698	1	O-Ring	(SUB FOR T116416)(K2)
37	R53869	1	Drain Plug	-
38	T144476	2	Piston	-
39	T144475	2	Compression Spring	-
40	T144474	1	Plate	-
41	T153010	1	Gasket	(K1) (K2)
42	T148276	1	Piston	-
43	T148061	1	Compression Spring	-
44	T148060	1	Compression Spring	-
45	T153008	1	Piston	-
46	T153009	1	Plug	-
47	51M4276	1	Sealing Ring	(K2)
48	T144475	1	Compression Spring	-
49	T144477	1	Piston	-
50	T144467	1	O-Ring	(K2)
51	L11698	1	O-Ring	(SUB FOR T116416)(K2)
52	T144464	1	Orifice	0.6 MM (.024")
52	T144465	1	Orifice	O.7 MM (.028")
52	T144466	1	Orifice	0.8 MM (.031")
52	T148247	1	Orifice	0.65 MM (.026")
52	T148248	1	Orifice	0.75MM (.030")
52	T148249	1	Orifice	O.85 MM (.033")
52	T150898	1	Orifice	0.9 MM (.035")
52	T159648	1	Orifice	0.95 MM (.037")
53	T144493	2	Ball	-
54	T144494	2	Compression Spring	-
55	R104558	2	O-Ring	(K2)
56	15M7025	2	Drain Plug	-
57	R53869	8	Drain Plug	-
58	L11698	8	O-Ring	(SUB FOR T116416)(K2)
59	T144476	1	Piston	-
60	T144475	1	Compression Spring	-
61	T144474	1	Plate	-
62	T144475	1	Compression Spring	-
63	T144476	1	Piston	-
64	T144461	1	Compression Spring	-
65	15M7045	1	Drain Plug	-
66	AT168944	1	Hyd Actuated Control Valve	ASSEMBLY, M6 (12 VOLT)
67	AT167895	1	Hyd Actuated Control Valve	-
68	R104558	1	O-Ring	(K2)
69	T153765	1	Sleeve	-
70	T159239	1	Ring	(USE WITH T159235 IF HOUSING HAS A COUNTERBORE FOR REDUCTION VALVE)
71	L11698	1	O-Ring	(SUB FOR T116416)
72	R53869	1	Drain Plug	-
